Pinpoint Test 1

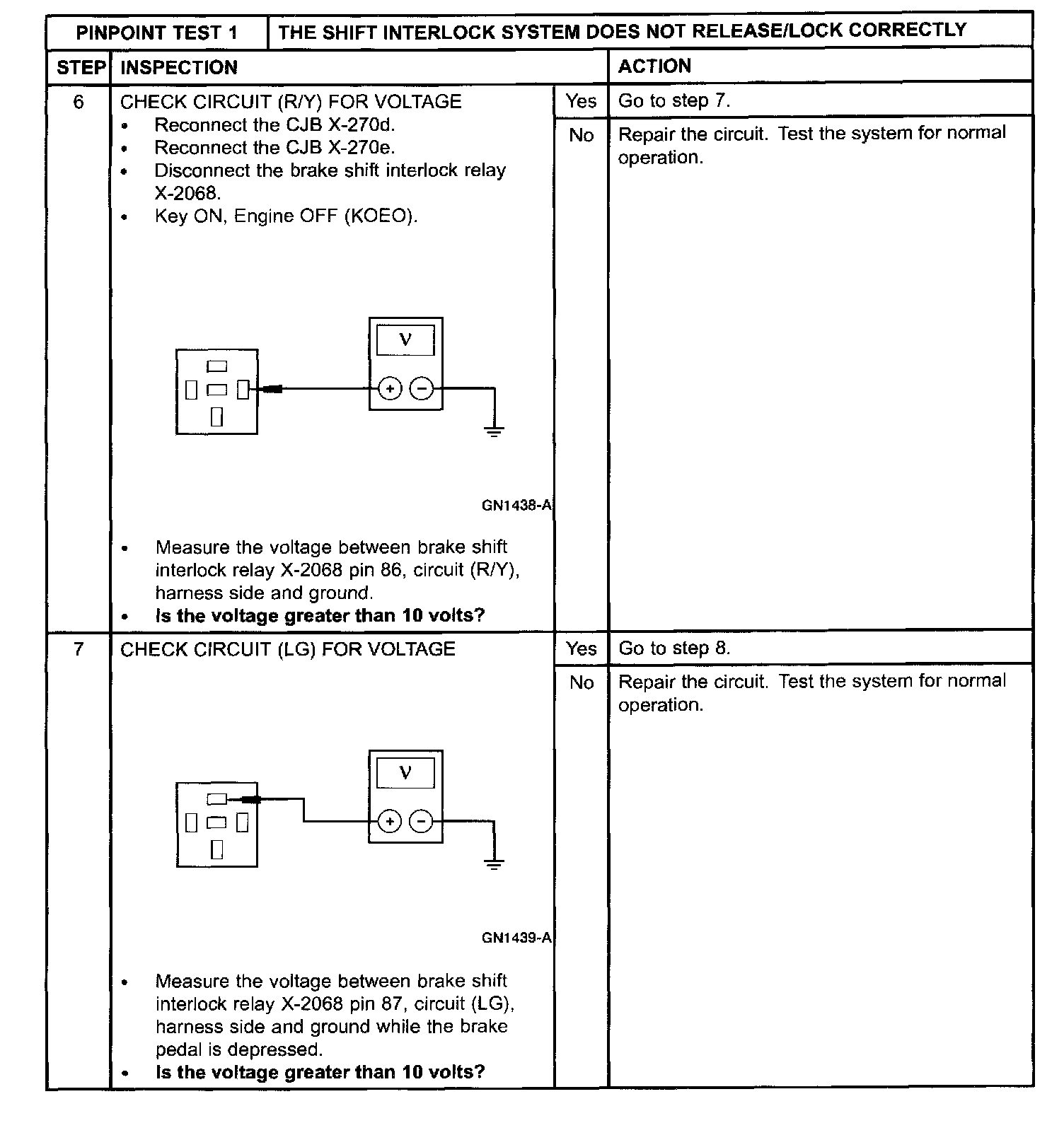

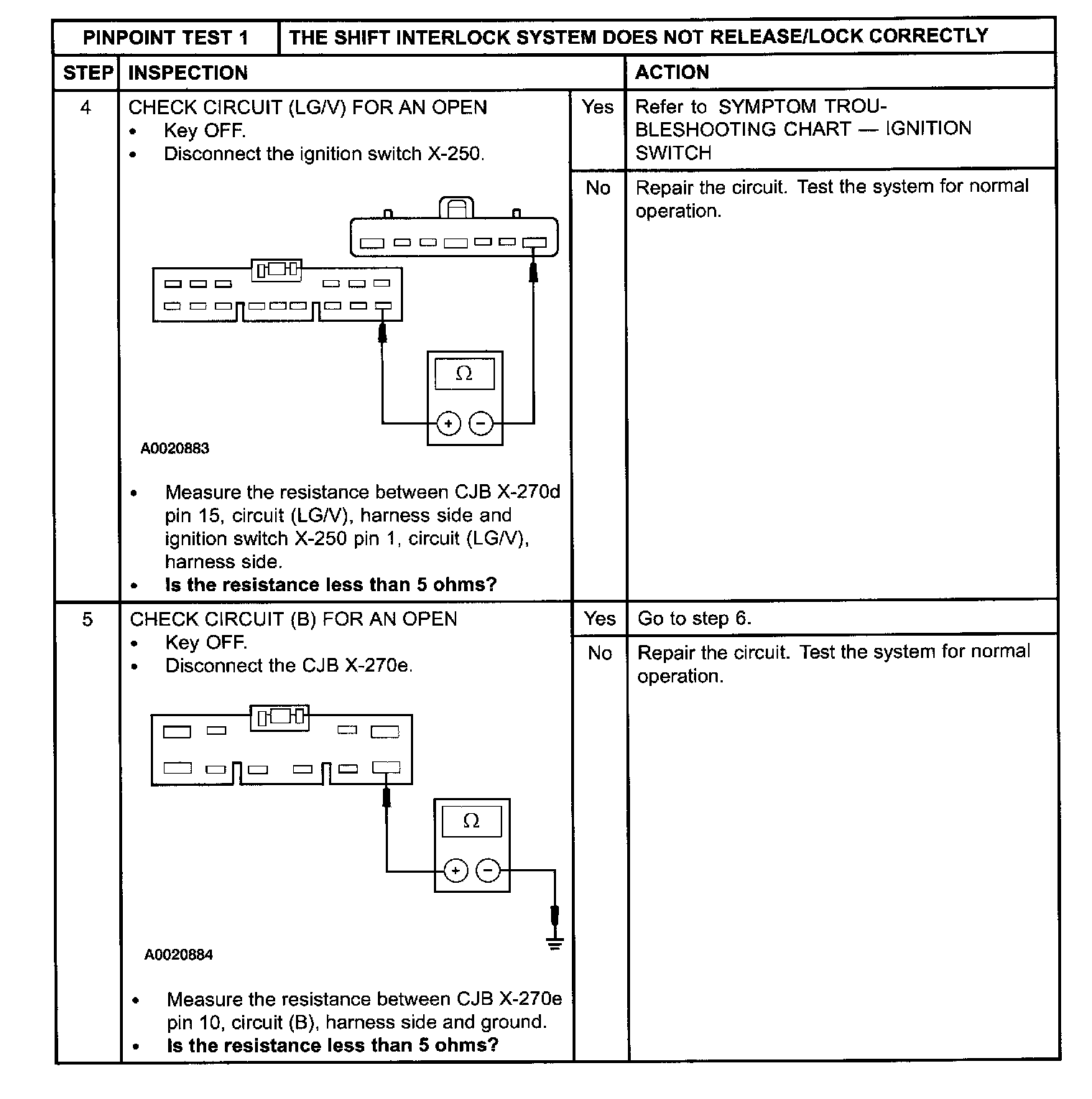

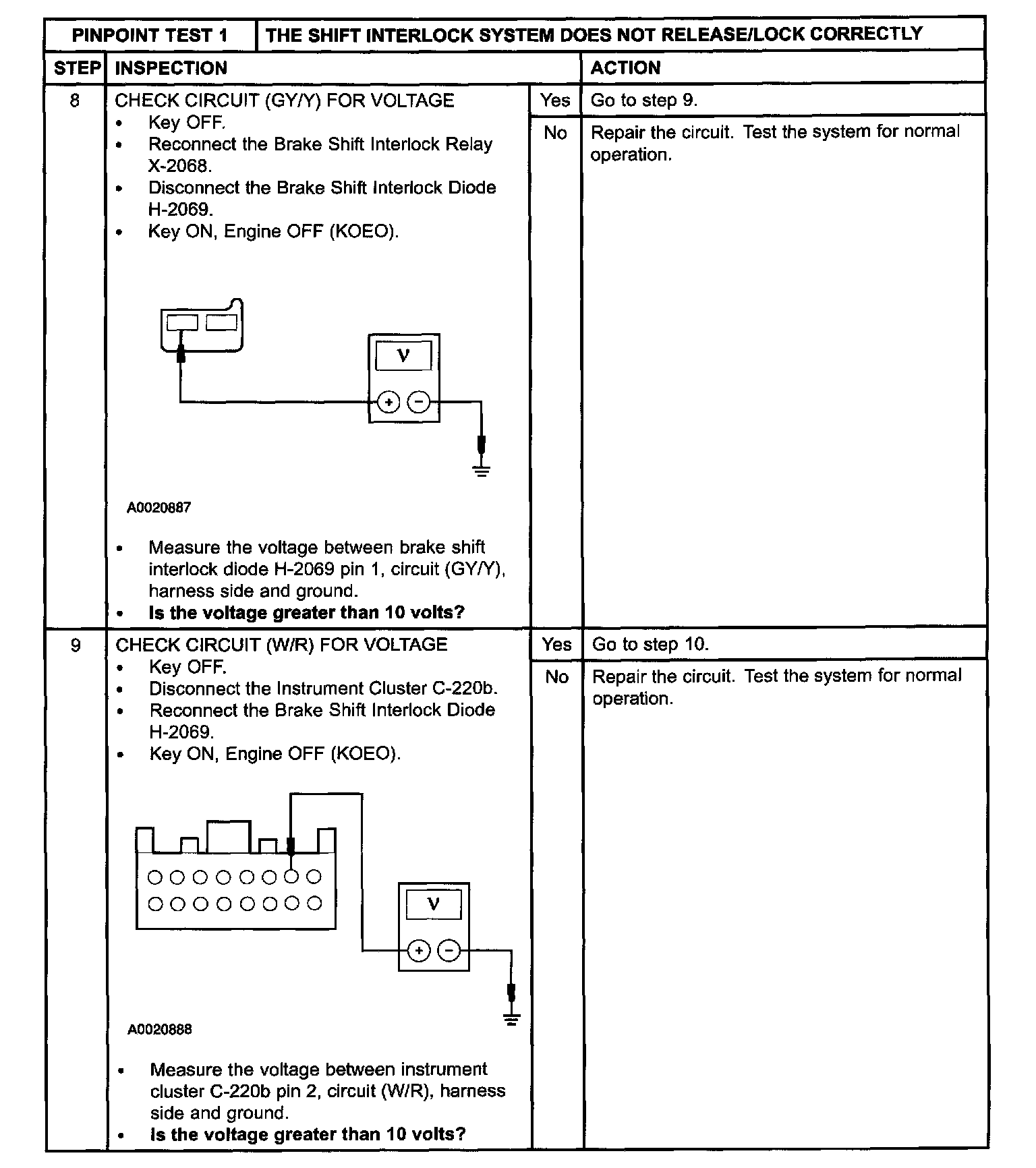

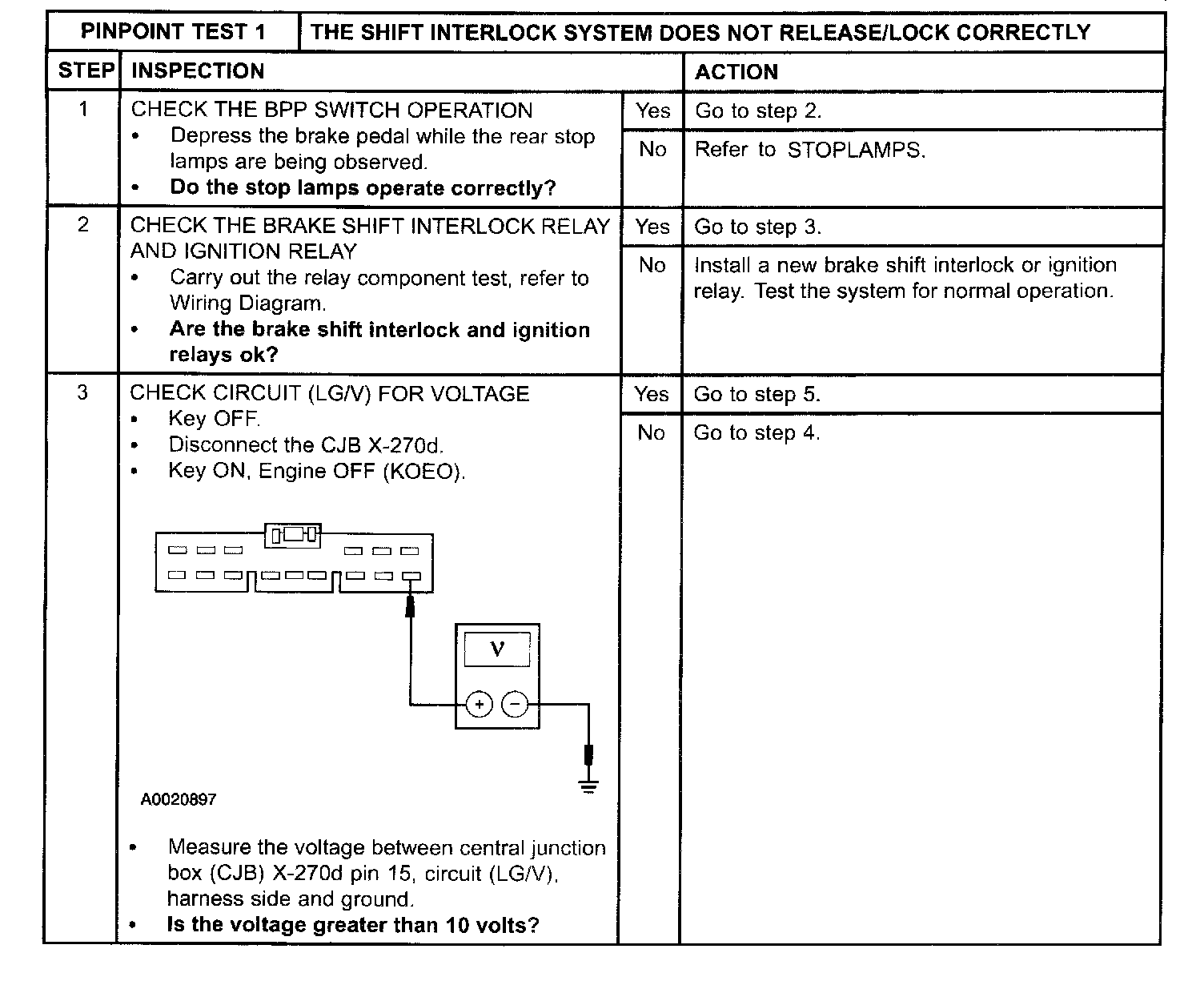

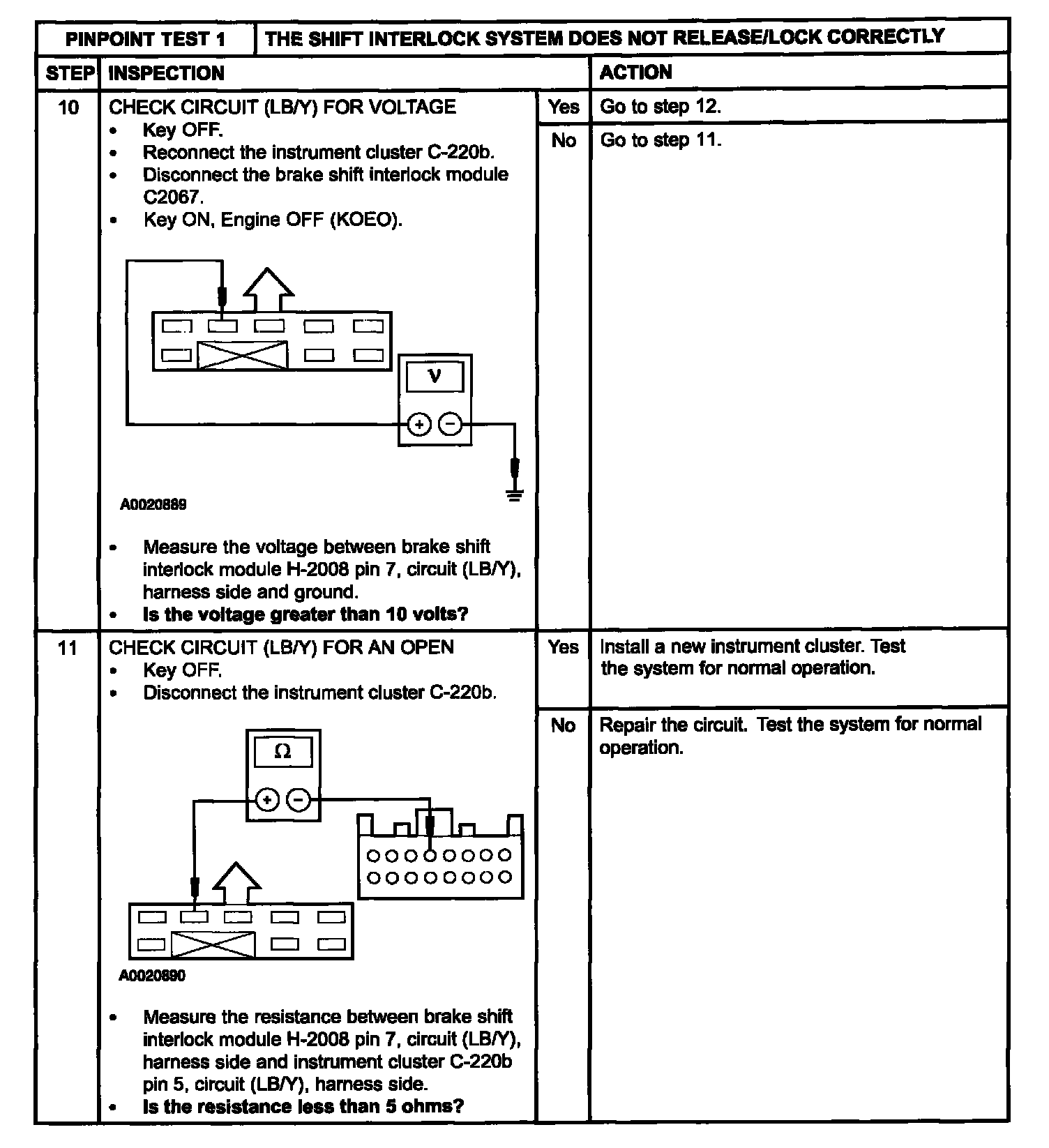

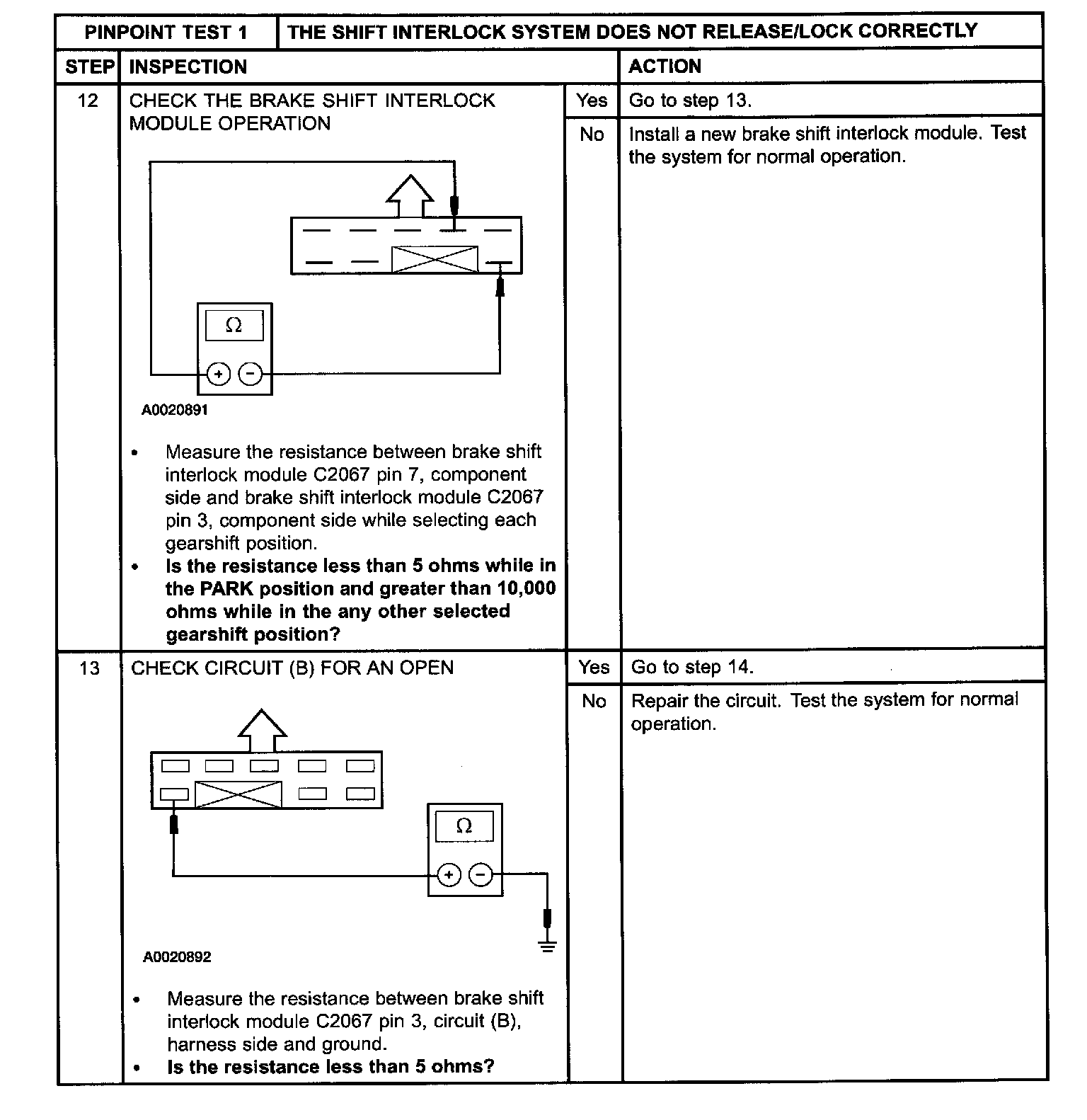

PINPOINT TEST 1: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

Test 1 Of 8:




Test 2 Of 8:




Test 3 Of 8:




Test 4 Of 8:




Test 5 Of 8:




Test 6 Of 8:




Test 7 Of 8:




Test 8 Of 8:
