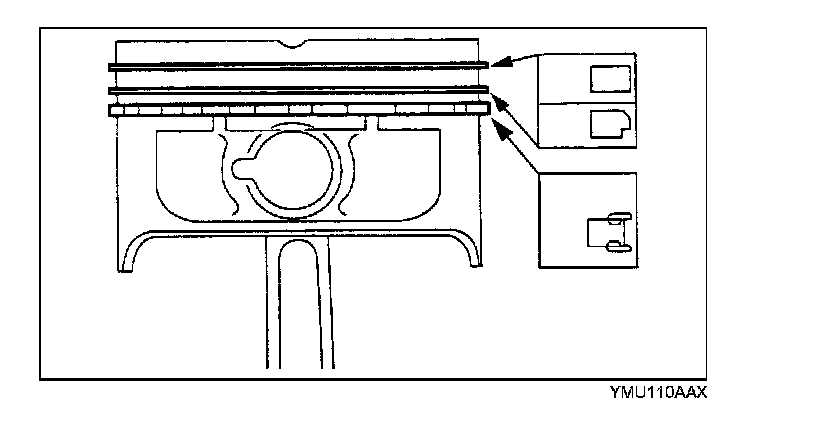

Piston Ring Assembly Note

Piston Ring Assembly Note





1. Install the two oil control ring segments and spacer.
2. Verify that the second ring is installed with scraper face side downward.
3. Install the top ring.
