Thermostat: Service and Repair

THERMOSTAT-3.0L DURATEC (4V)

Removal and Installation
1. Drain the engine cooling system.





Note:
^ The appearance cover is shown removed for clarity.

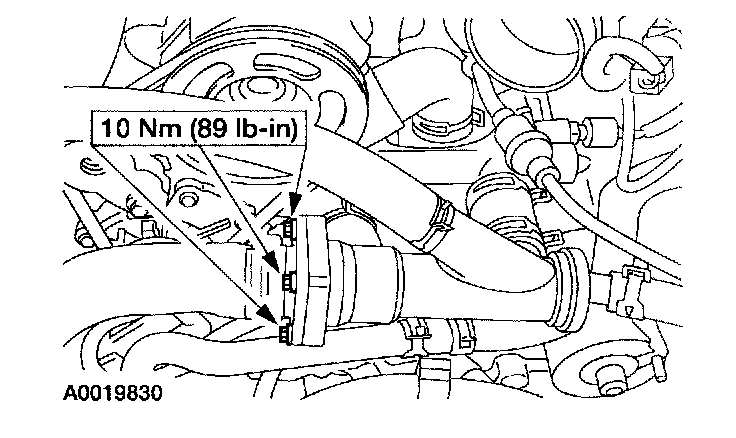

2. Separate the thermostat housing.





3. Remove the thermostat and the O-ring seal from the thermostat housing.

Note:
^ Clean and inspect the sealing surfaces.
4. To install reverse the removal procedure.
