Home
>>
Mazda Truck
>>
2003
>>
Tribute 4WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Bushings, Bearing and Thrust Washer Locator
Bushings, Bearing and Thrust Washer Locator

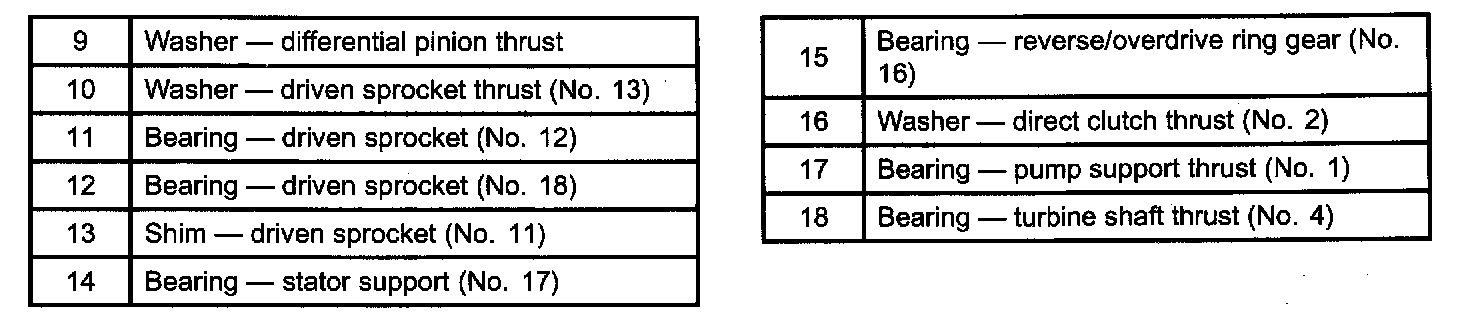

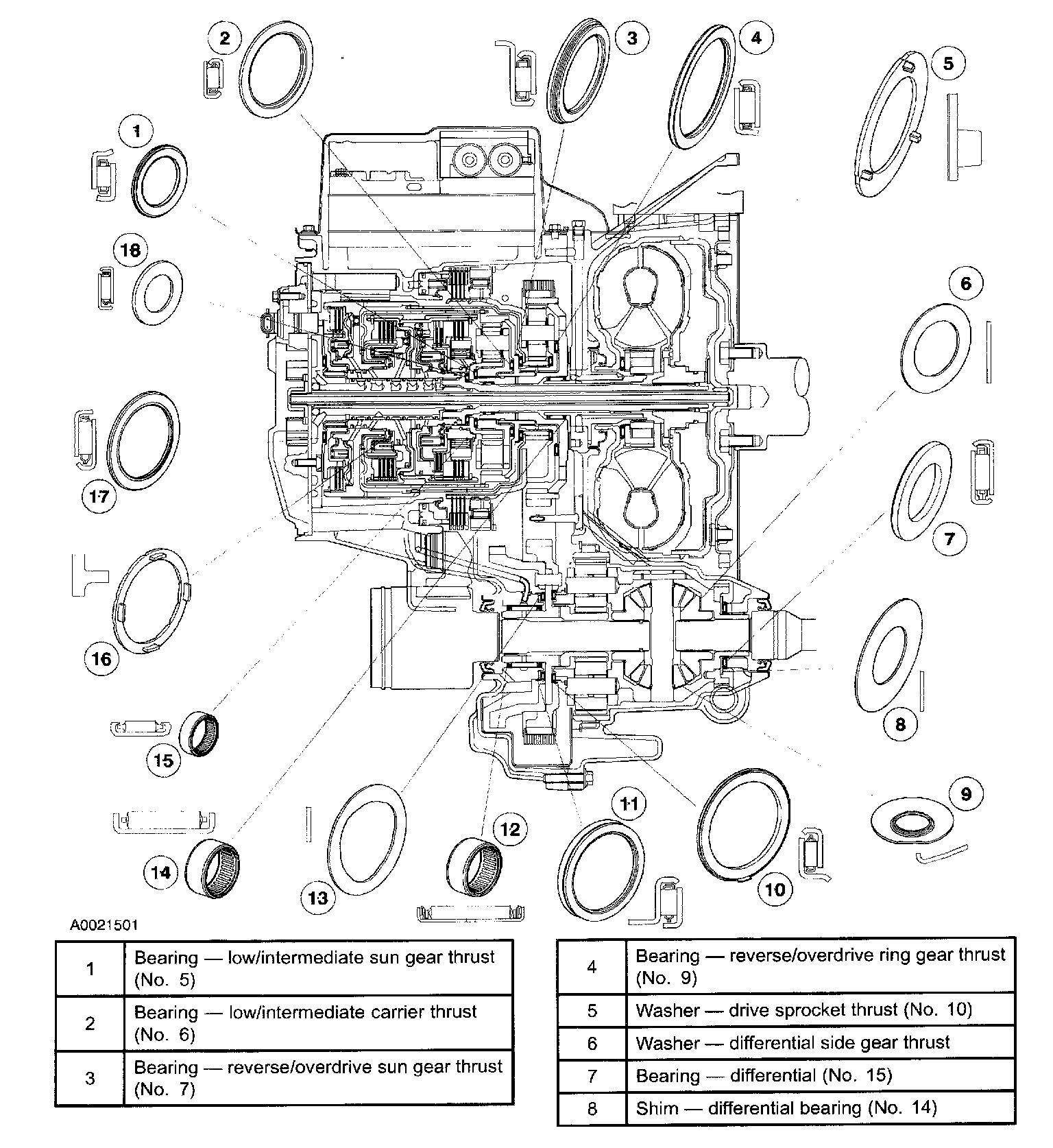

BUSHINGS, BEARING AND THRUST WASHER LOCATOR
1 Of 2:
2 Of 2:
