Diagram B-2h

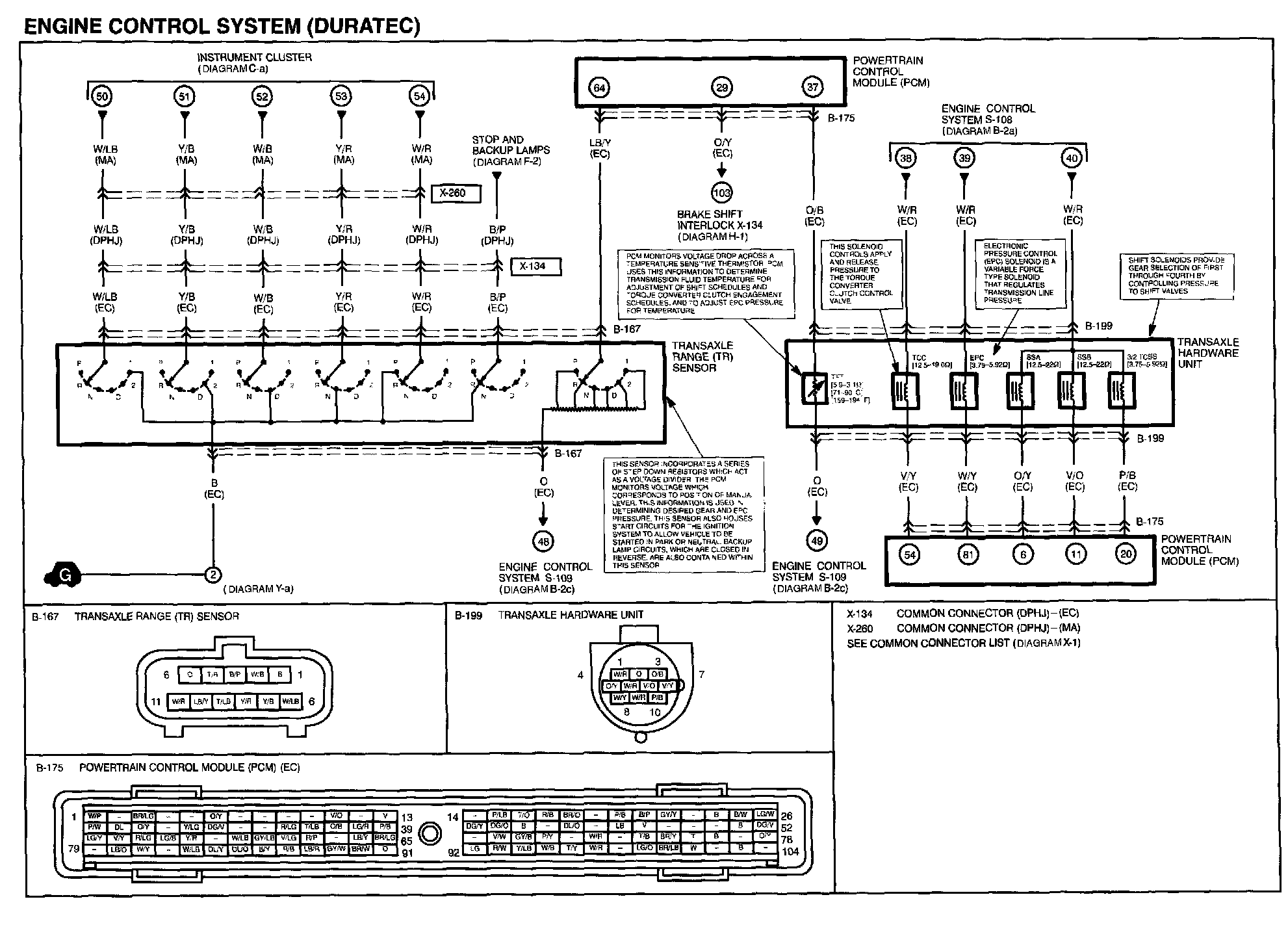

Daigram B-2h:

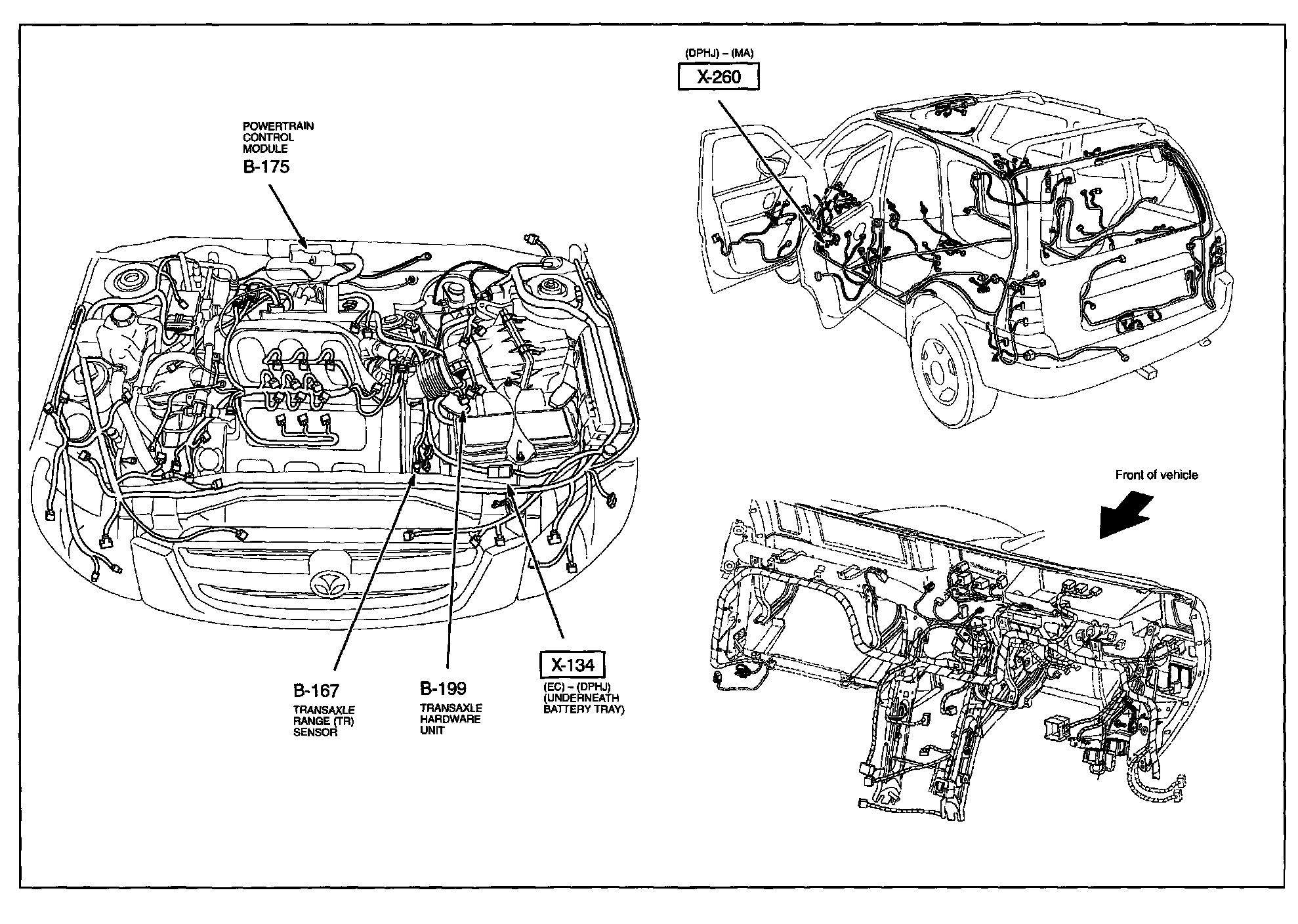

Routing View B-2h:

Previous Diagram Diagram B-2g


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
