P1780
>>
Transmission Control System
Transmission Control System

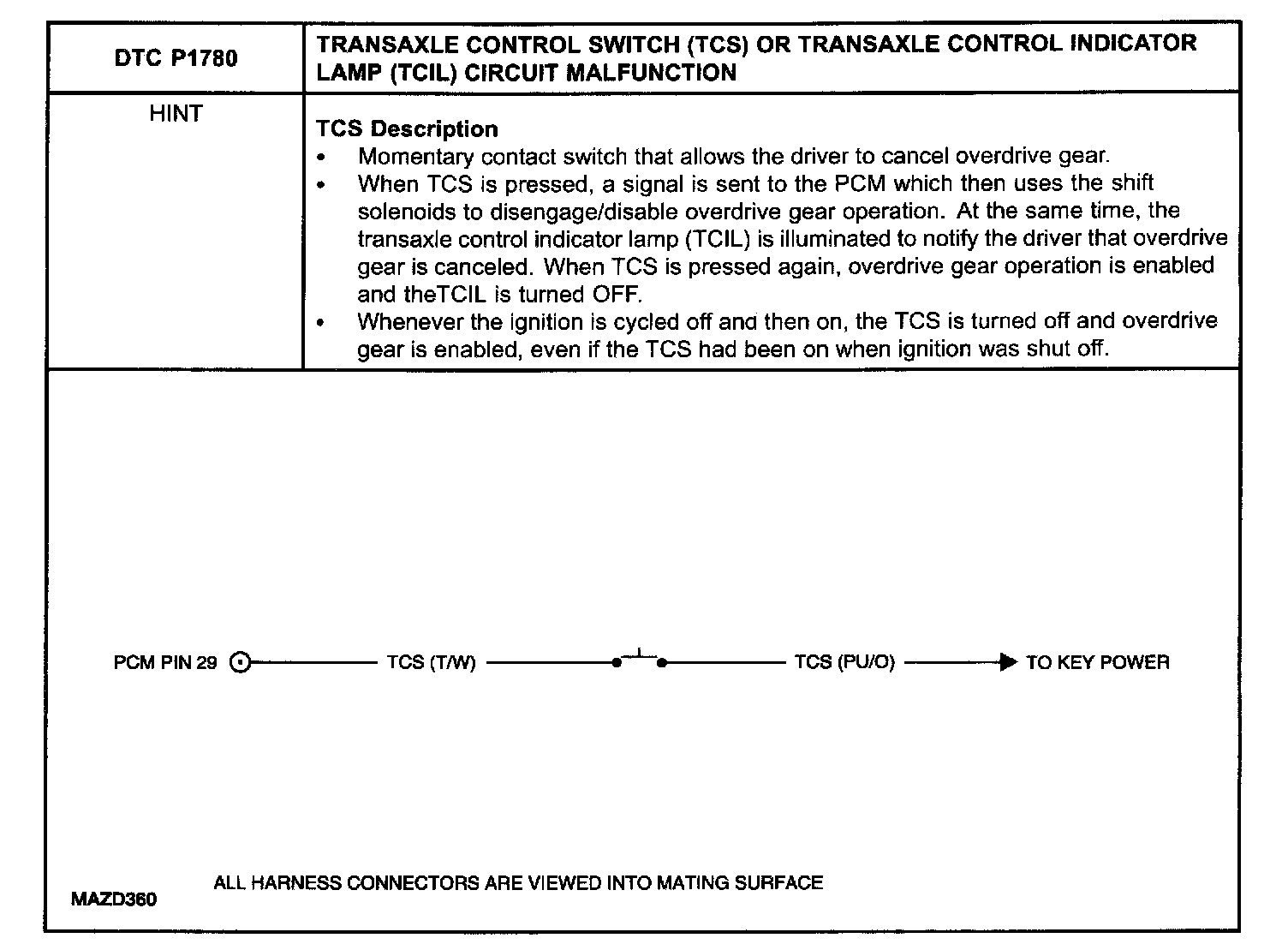

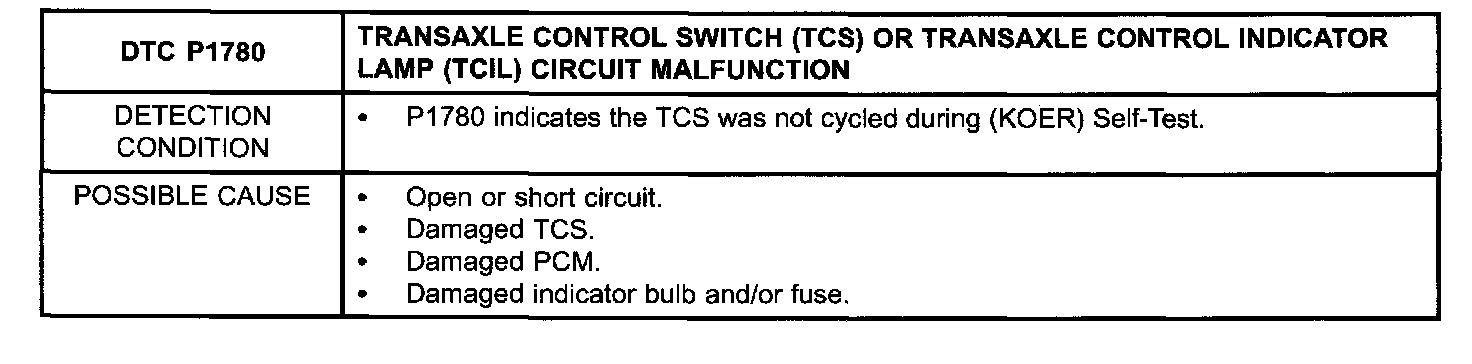

TRANSAXLE CONTROL SWITCH (TCS) OR TRANSAXLE CONTROL INDICATOR LAMP (TCIL) CIRCUIT MALFUNCTION

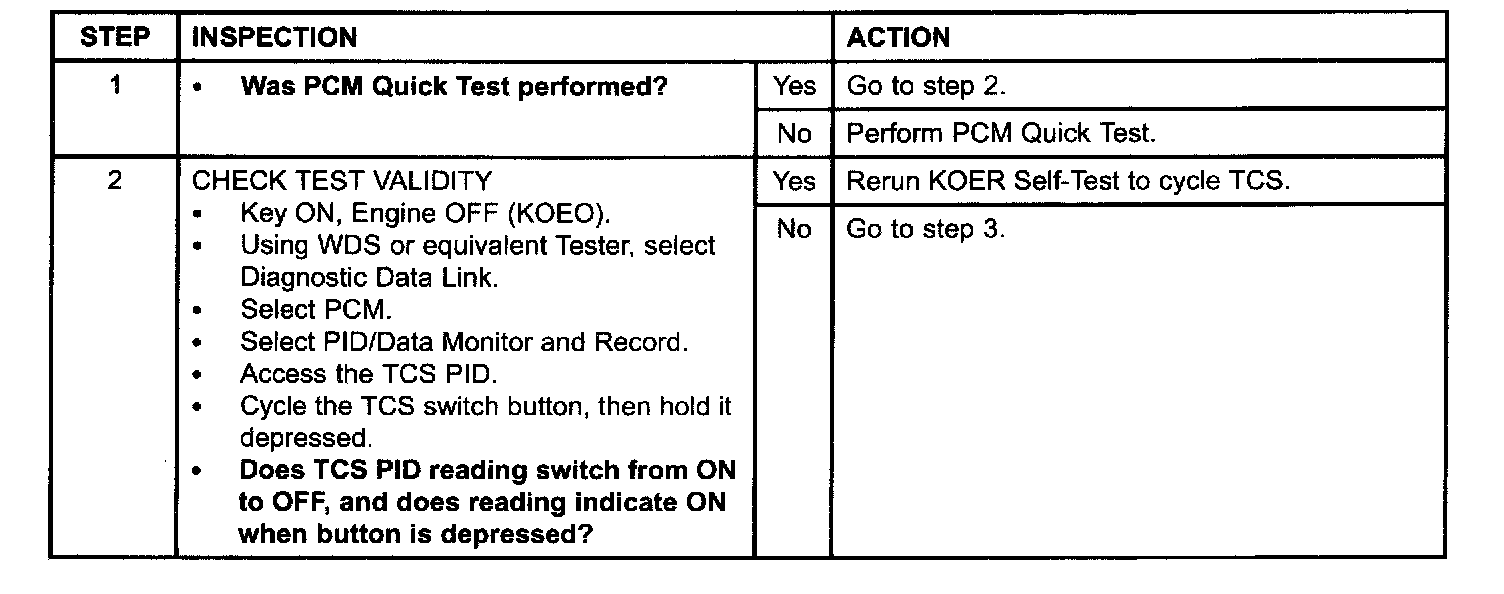

Test 1 Of 4:
Test 2 Of 4:

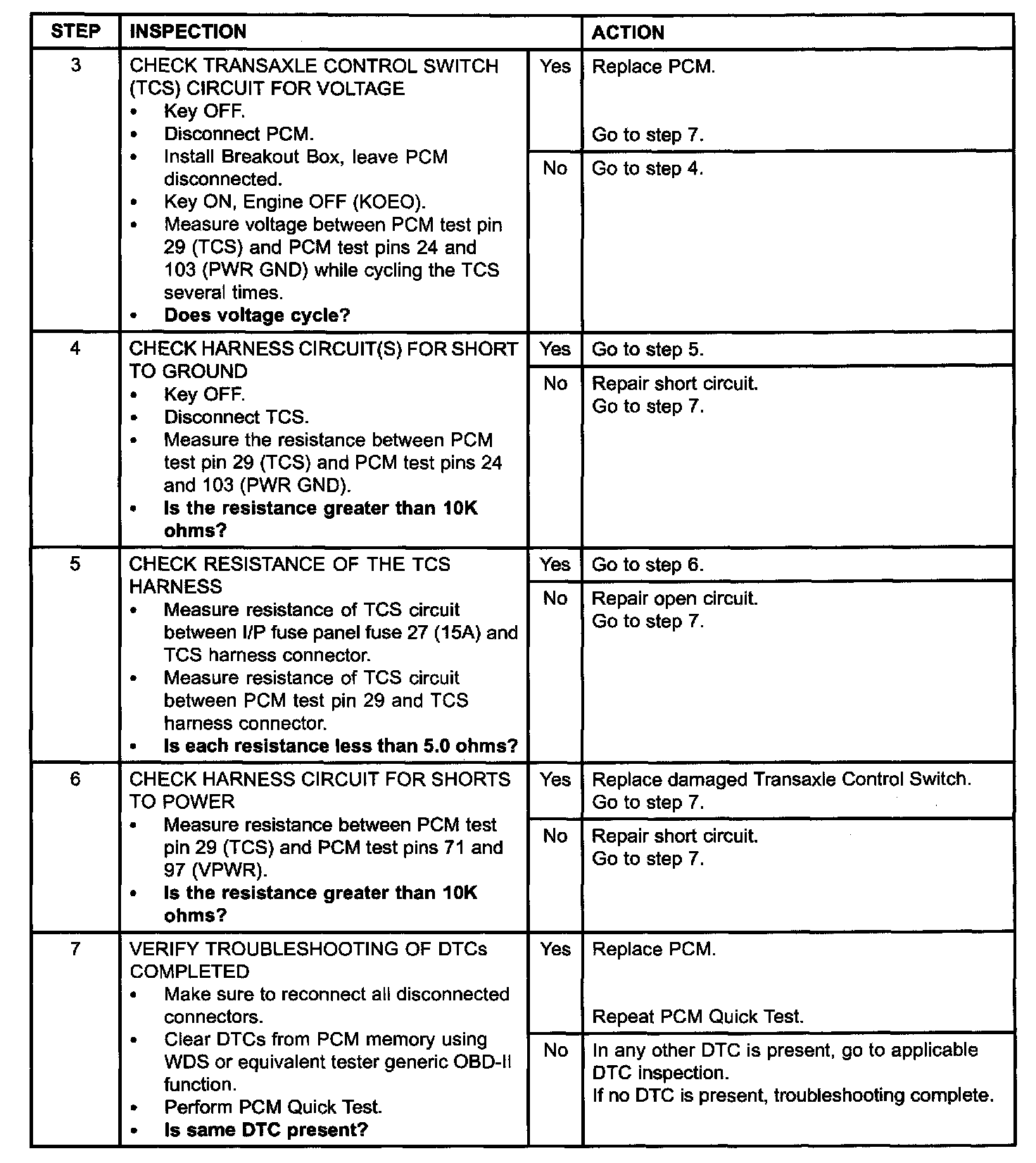

Test 3 Of 4:
Test 4 Of 4:
