PINPOINT TEST 1: THE VEHICLE DOES NOT SHIFT BETWEEN AUTO AND 4X4 ON MODES CORRECTLY

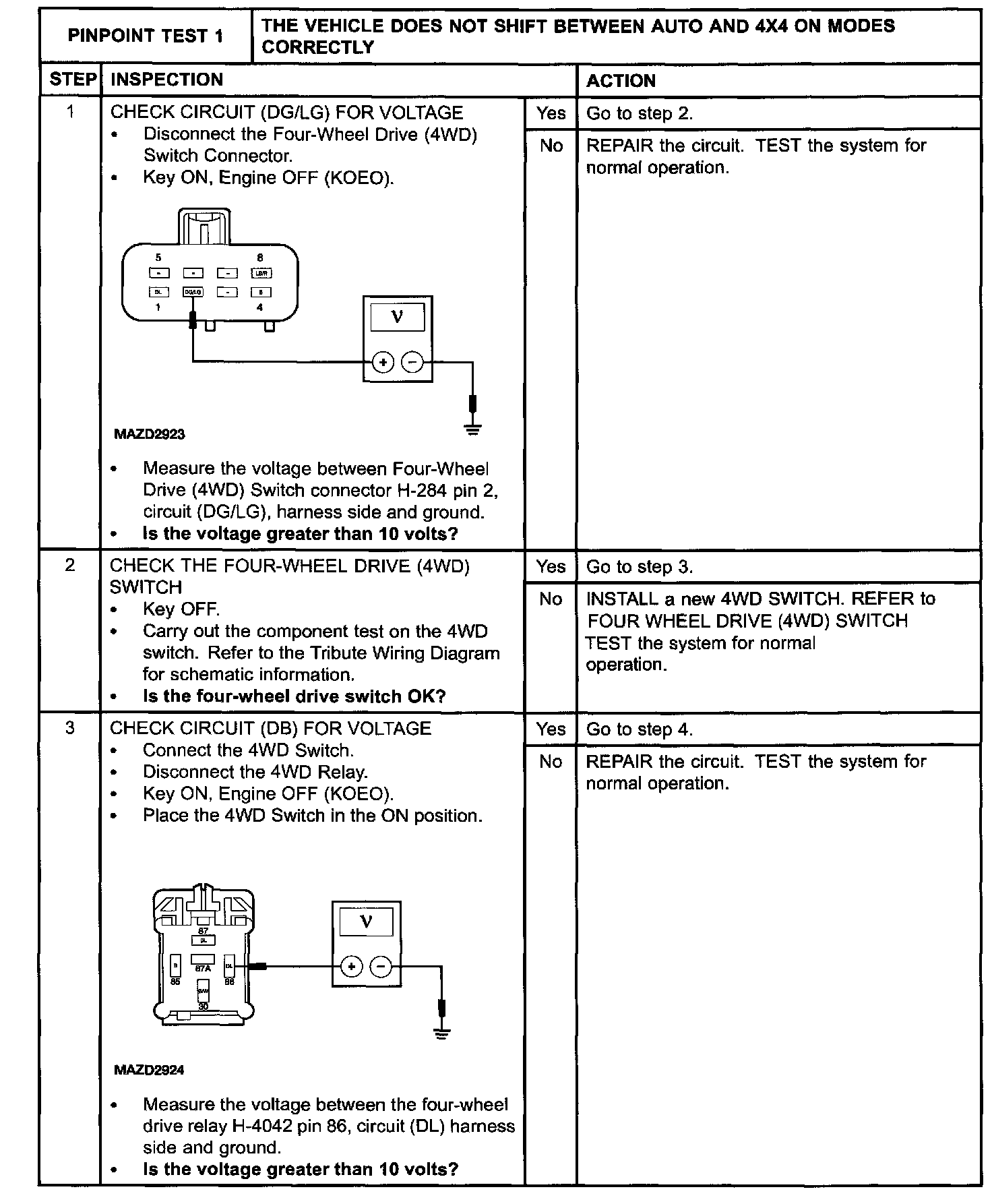

Test 1 Of 3:

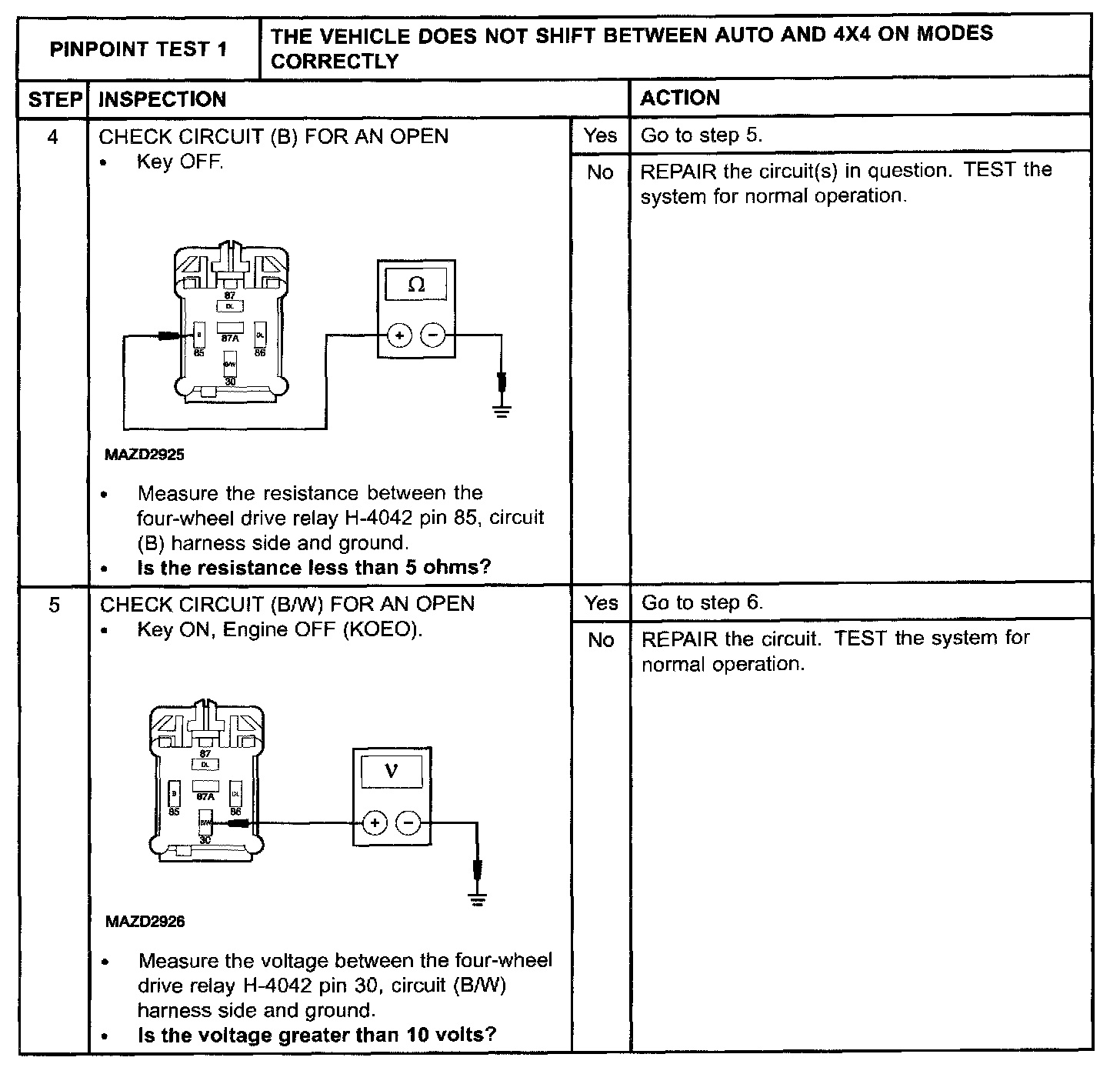

Test 2 Of 3:

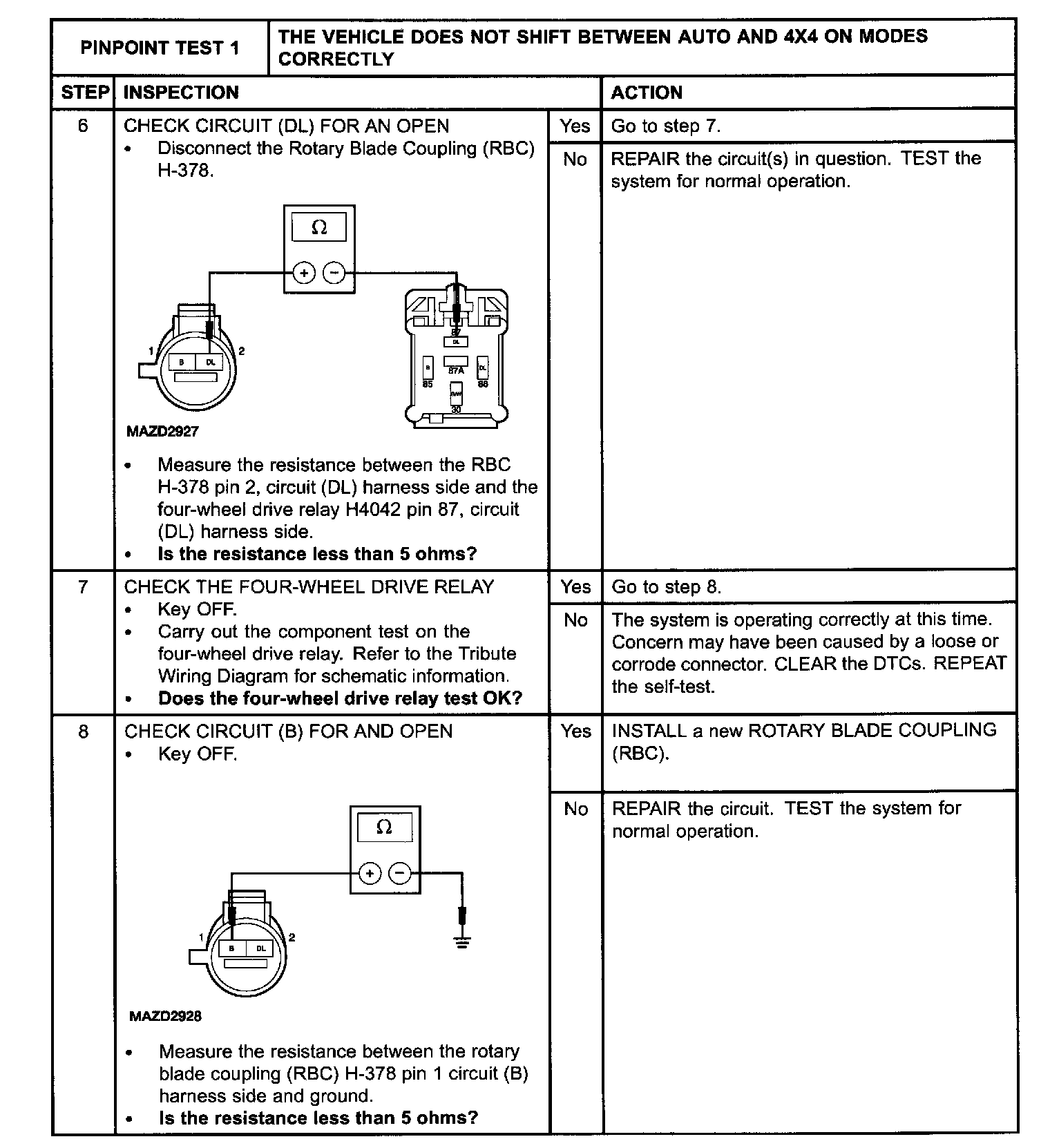

Test 3 Of 3:
