Rear Differential Mass Damper

ROTARY BLADE COUPLING - REAR DIFFERENTIAL MASS DAMPER

Removal

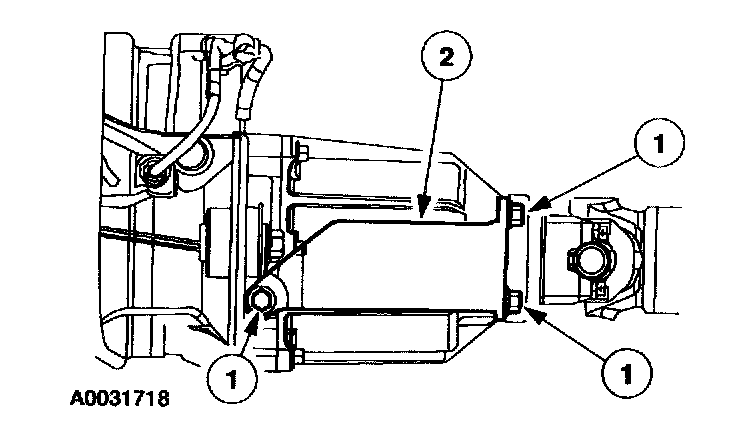

1. Remove the rear differential mass damper.
1. Remove the bolts.
2. Remove the rear differential mass damper.

Installation





Caution:
^ The mass damper bolts must be installed in the sequence shown or damage to the vehicle may occur.

Note:
^ Install the mass damper bolts by hand until finger tight.

1. Install the rear differential mass damper.

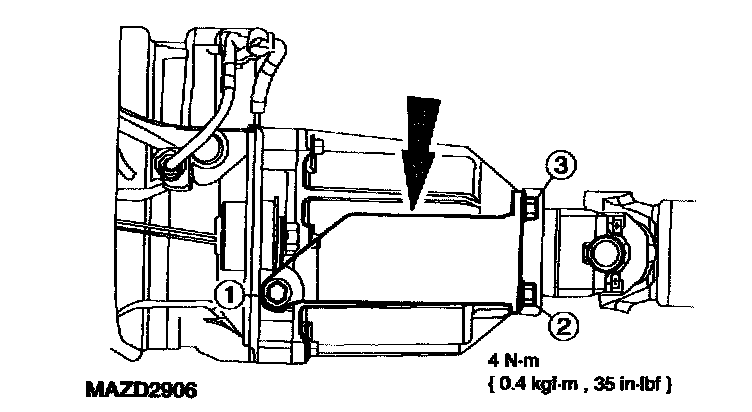

^ Position the rear differential mass damper and install the bolts in the sequence shown.

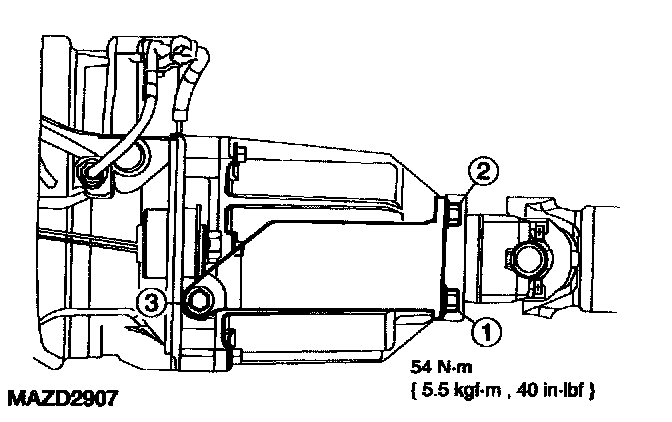

2. Final torque the mass damper bolts in the sequence shown.
