Home >> Mazda Truck >> 2003 >> Tribute 4WD L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag Control Module >> Locations >> Connector Locations

Connector Locations

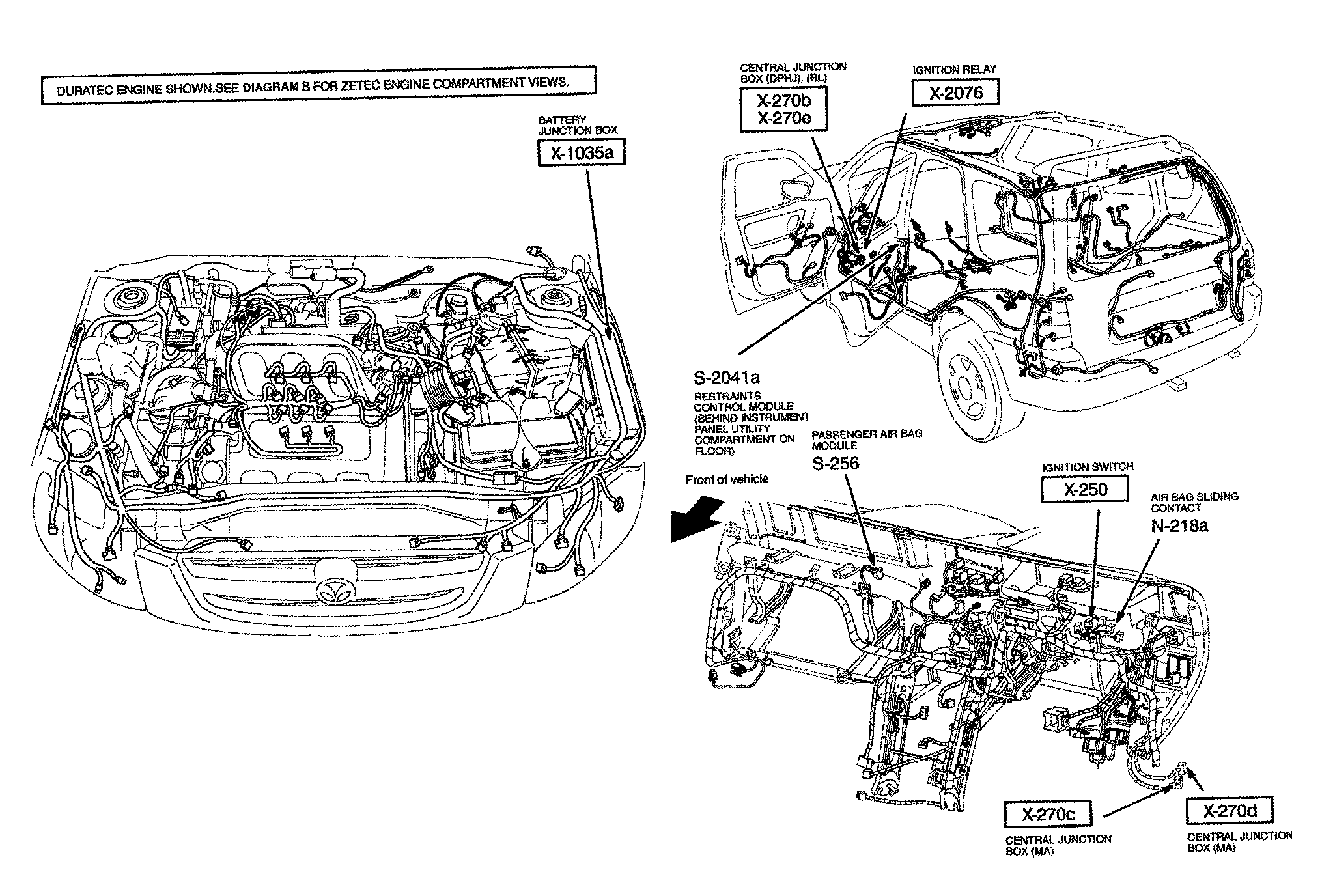

�bFRouting View S-a:

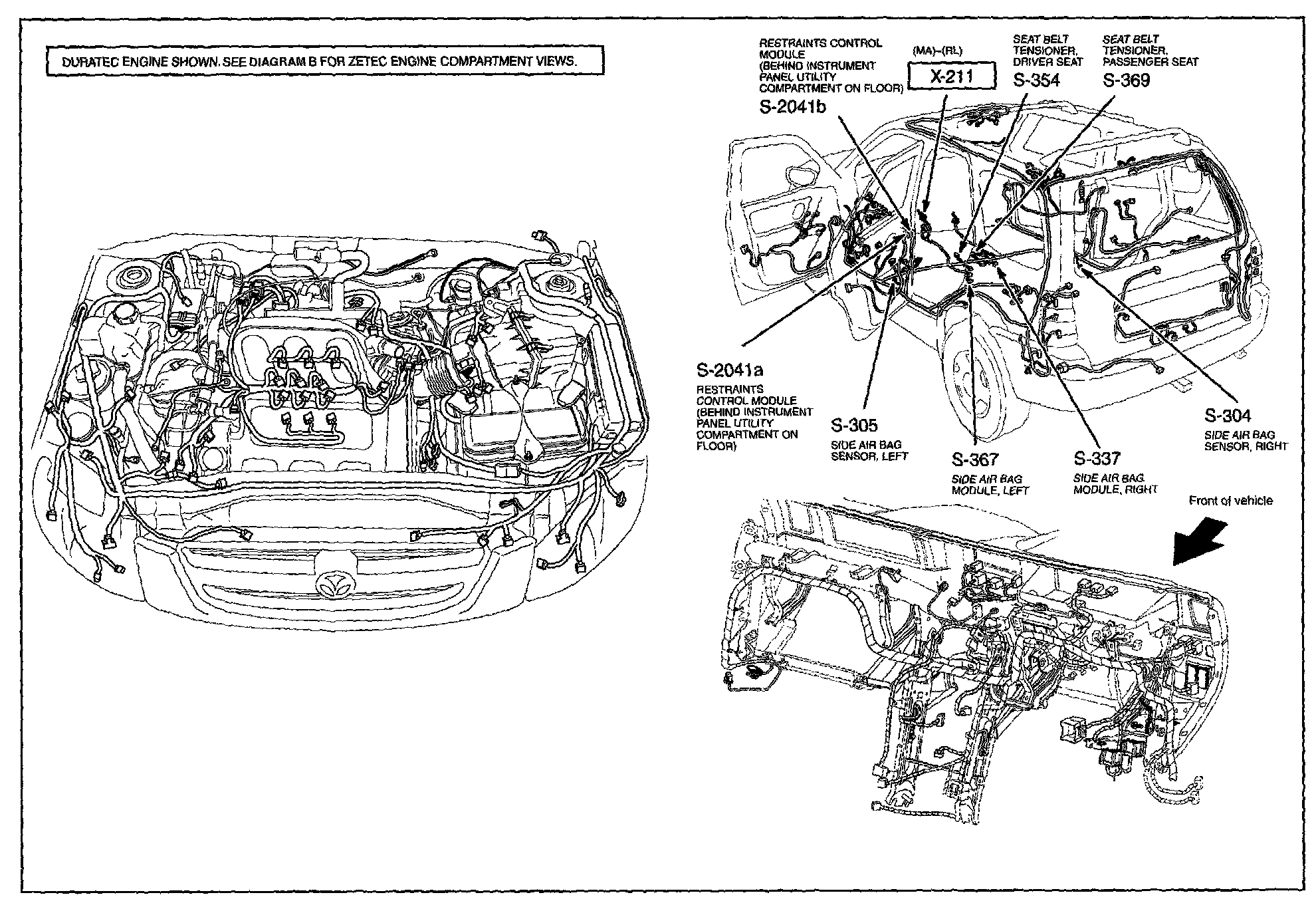

Routing View S-b:
