Piston-Pin Diameter
PISTON-PIN DIAMETER

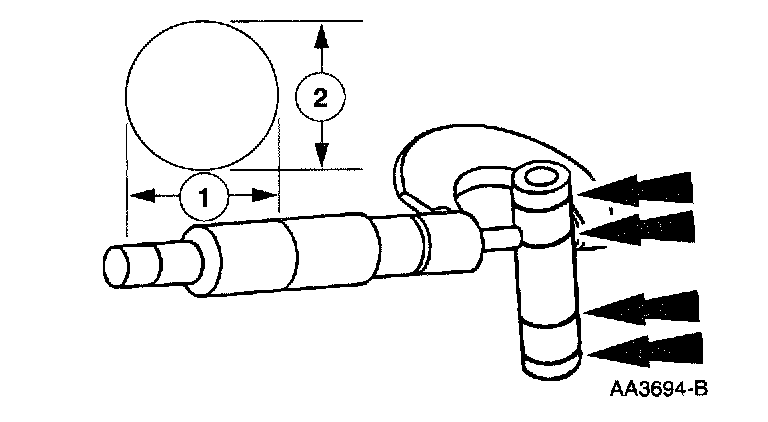

1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification. Refer to SPECIFICATIONS.
(1) If out of specification, install new components as necessary.
1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification. Refer to SPECIFICATIONS.
(1) If out of specification, install new components as necessary.
