DTC Application Charts

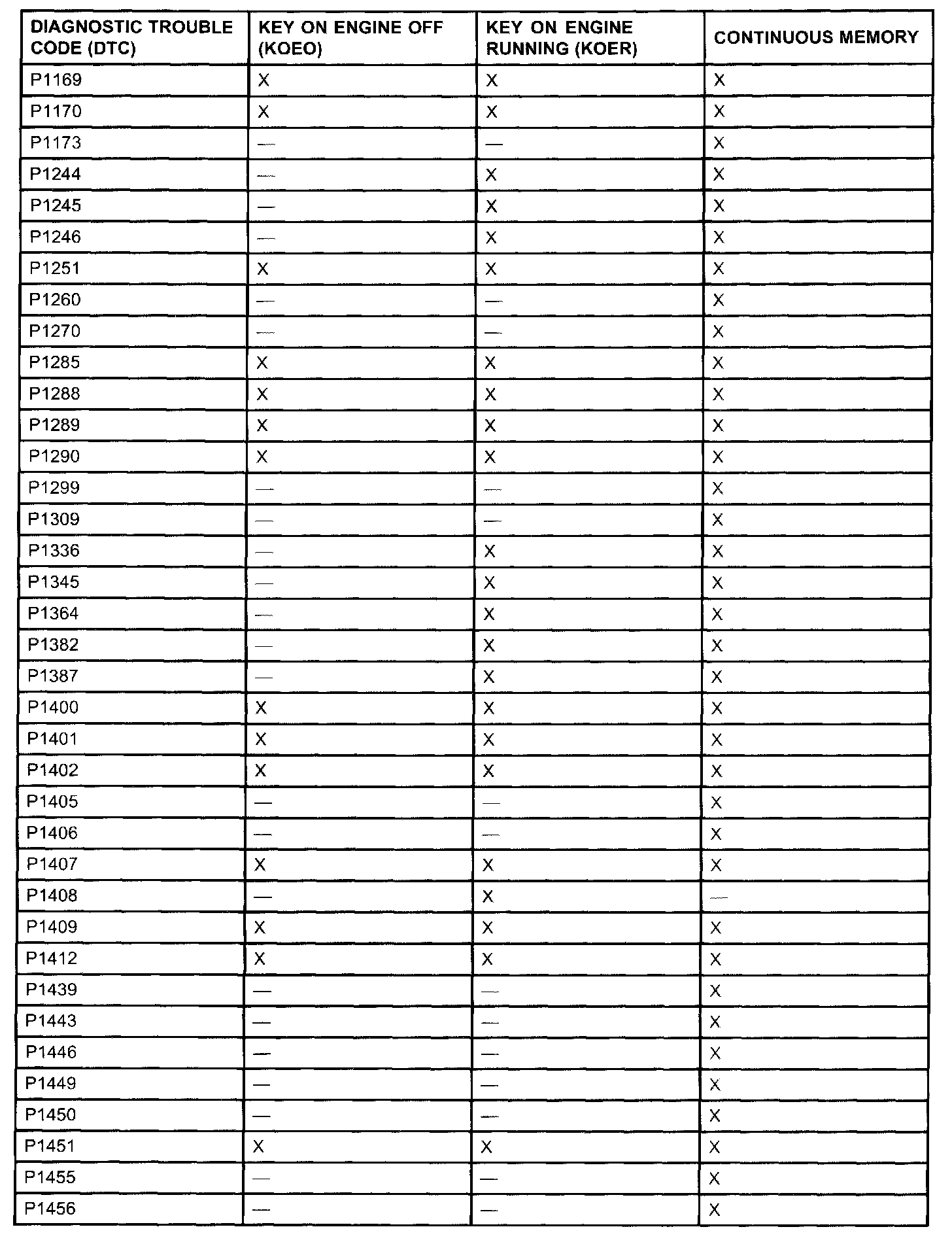

Diagnostic Trouble Code Application Chart Part 1:

Diagnostic Trouble Code Application Chart Part 2:

Diagnostic Trouble Code Application Chart Part 3:

Diagnostic Trouble Code Application Chart Part 4:

Diagnostic Trouble Code Application Chart Part 5:

Diagnostic Trouble Code Application Chart Part 6:

Diagnostic Trouble Code Application Chart Part 7:

Diagnostic Trouble Code Application Chart Part 8:

Diagnostic Trouble Code Application Chart Part 9:

Diagnostic Trouble Code Application Chart Part 10:

Diagnostic Trouble Code Application Chart Part 11:
