Intermediate Shaft

INTERMEDIATE SHAFT

Removal and Installation
1. Remove the RH front drive halfshaft.

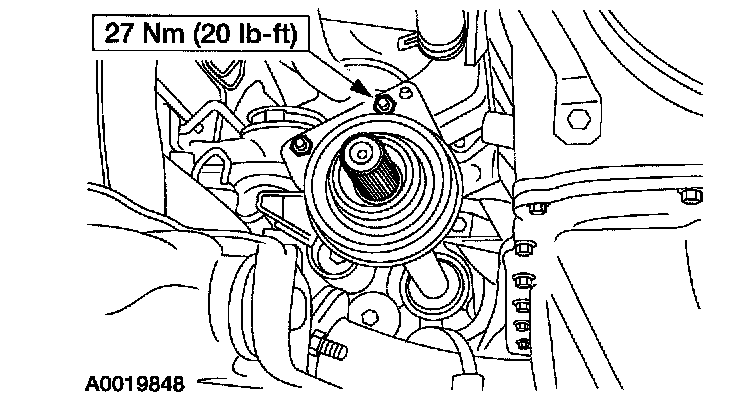

2. Remove the two inner halfshaft bearing retainer nuts.

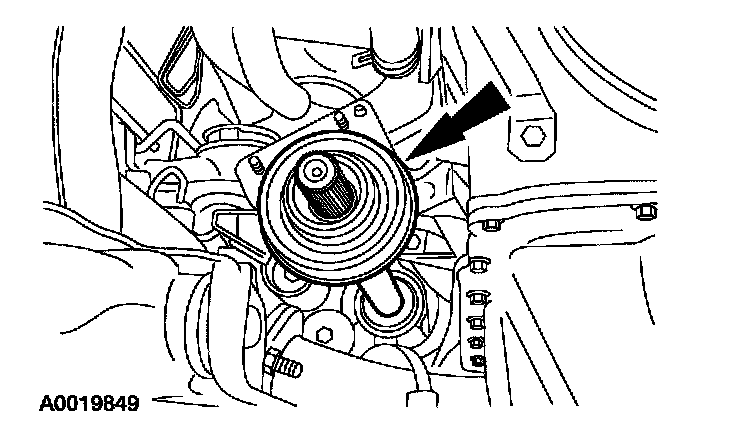

3. Remove the inner halfshaft.
4. To install, reverse the removal procedure.
