Diagnostic Procedures

Pinpoint Test 1: AIR BAG WARNING INDICATOR IS ILLUMINATED CONTINUOUSLY - RCM DISCONNECTED, INOPERATIVE OR LOST/LOW IGNITION FEED

Normal Operation

NOTE: During normal operation the air bag indicator will be lit continuously for six seconds after the ignition switch is placed in the RUN position and after five cycles of a lamp fault code (LFC) if a fault exists. Be sure to cycle the ignition switch and look for a six-second indicator prove-out without LFCs.

The restraints control module (RCM) will communicate diagnostic trouble codes (DTCs) to the scan tool through the data link connector (DLC). If the scan tool displays NO COMMUNICATION when retrieving continuous DTCs, use AIR BAG WARNING INDICATOR IS ILLUMINATED CONTINUOUSLY - RCM DISCONNECTED, INOPERATIVE OR LOST/LOW IGNITION FEED, to troubleshoot the system.

Possible Causes
An air bag indicator that is illuminated continuously can be caused by one of the following:
- the ignition circuit is damaged.
- the RCM is disconnected from the vehicle harness.
- a loss of RCM ground.
- the RCM is inoperative.
- other circuitry.
- worn or damaged shorting bar or camming beam.

WARNING: If the supplemental restraint system (SRS) is being serviced, the system must be deactivated and restraint system diagnostic tools must be installed.

The air bag restraint system diagnostic tools must be removed and the air bag modules reconnected when the system is reactivated to avoid non-deployment in a collision, resulting in possible personal injury.

NOTE: Diagnostics or repairs are not to be performed on a seat equipped with a seat side air bag with the seat in the vehicle. Prior to attempting to diagnose or repair a seat concern when equipped with a seat side air bag, the seat must be removed from the vehicle and the restraint system diagnostic tools must be installed in the seat side air bag electrical connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.

NOTE: After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.

NOTE: After diagnosing or repairing a seat system, the restraint system diagnostic tools must be removed before operating the vehicle over the road.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

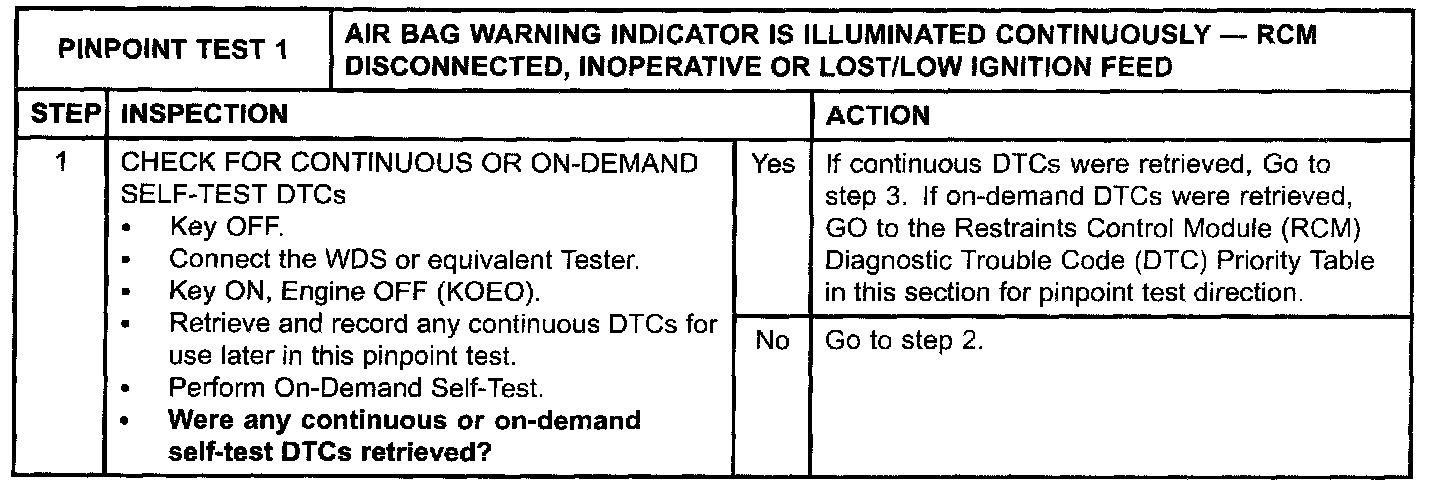

Step 1:

Step 2 - 3:

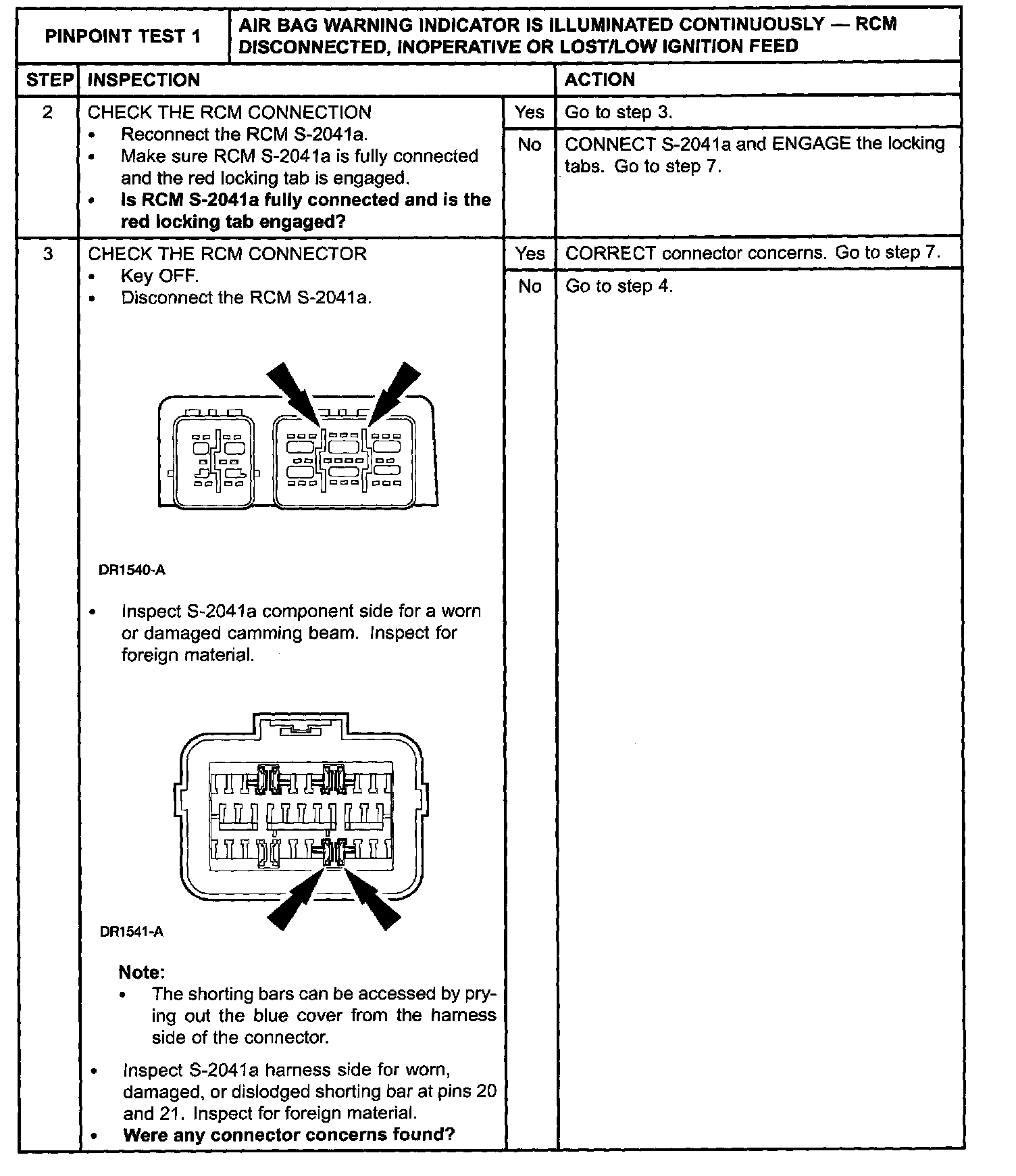

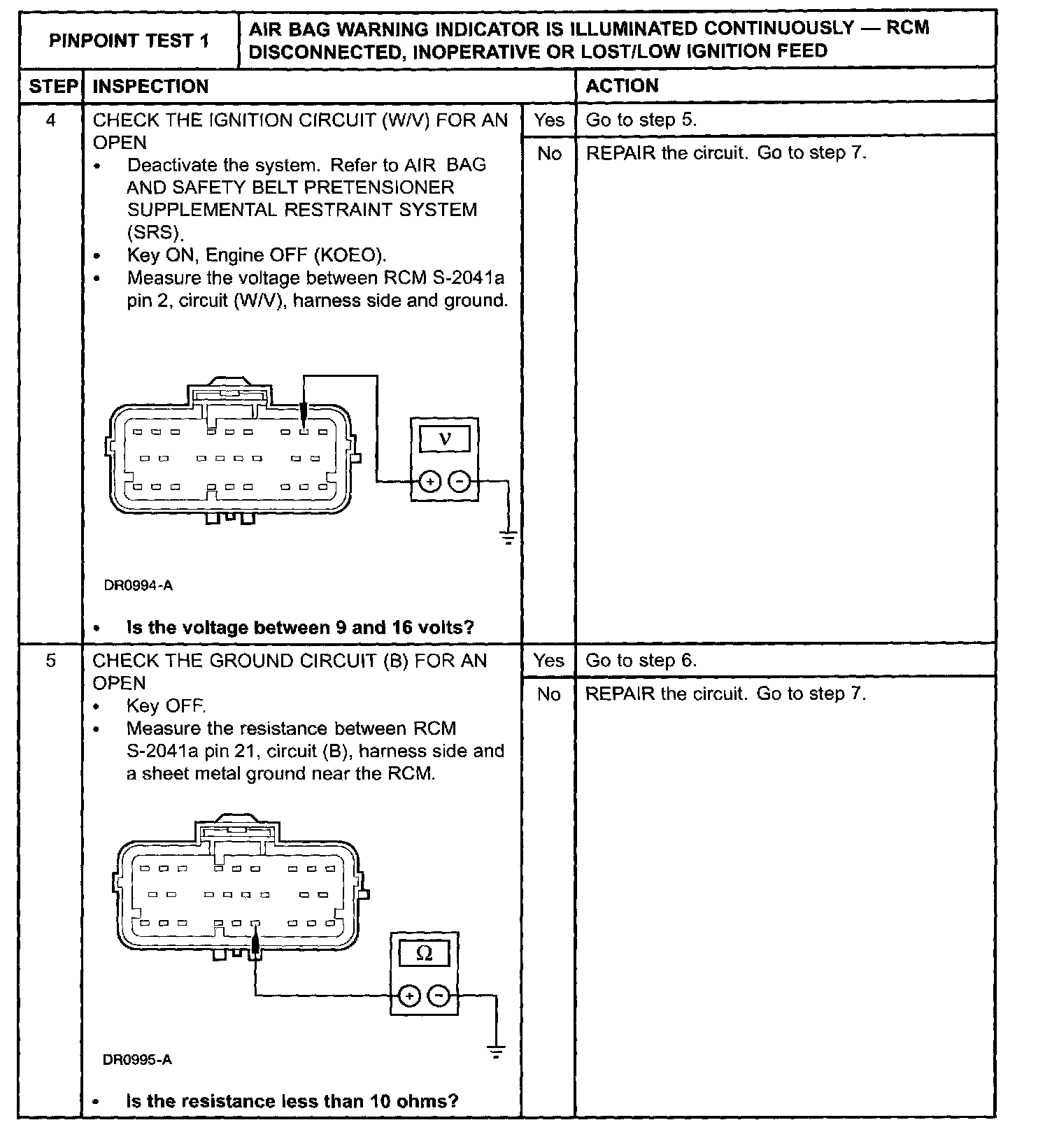

Step 4 - 5:

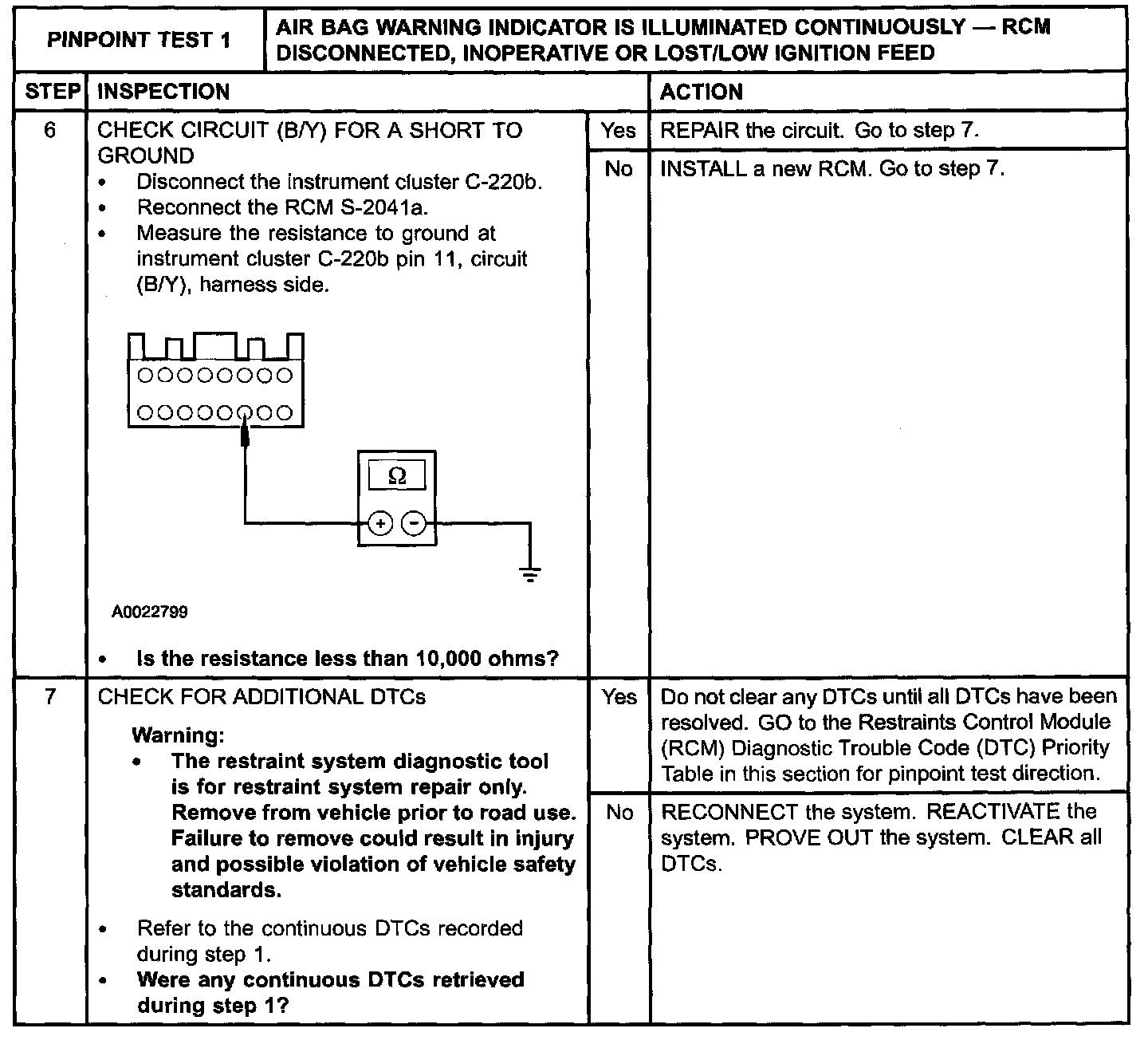

Step 6 - 7:
