Positive Crankcase Ventilation Valve: Service and Repair

Removal and Installation

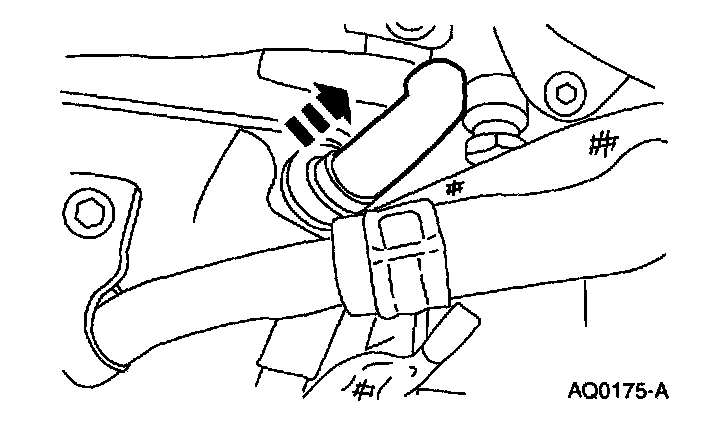

1. Remove the PCV valve.
- Remove the crankcase ventilation hose from the PCV valve.
- Remove the PCV valve from the grommet.

2. To install, reverse the removal procedure.
