Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER

Removal and Installation

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury. Failure to follow these instructions may result in personal injury.

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or fuel liquid is present in the area. Failure to follow these instructions may result in personal injury.

1. Disconnect the battery. Refer to BATTERY DISCONNECT.
2. Raise and support the vehicle. Refer to LIFTING.

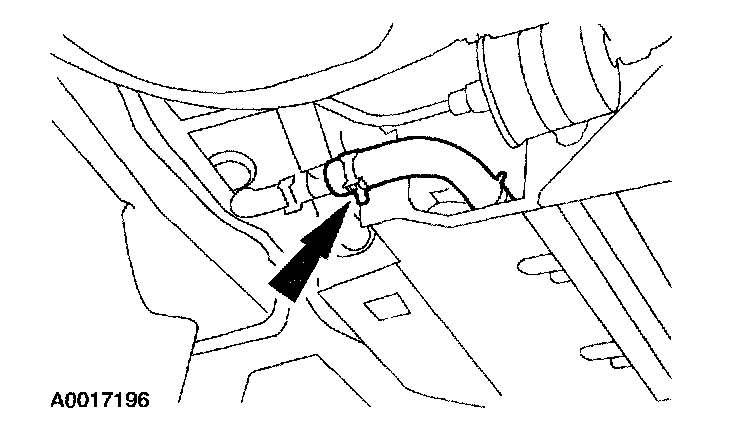

3. Disconnect the EVAP canister outlet tube.

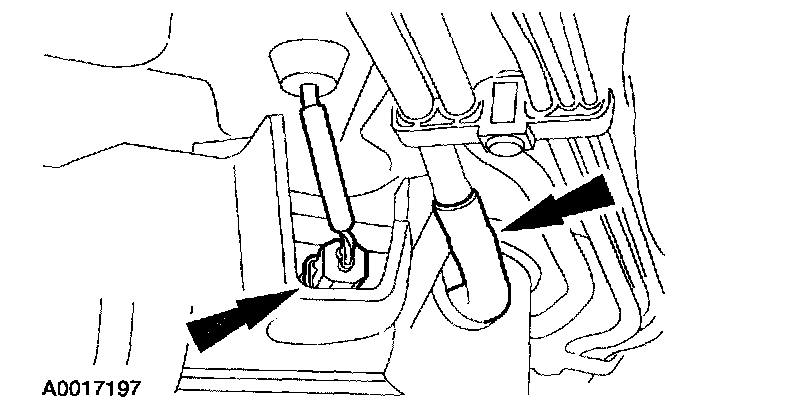

4. Disconnect the canister vent solenoid electrical connector and the remote canister vent hose.

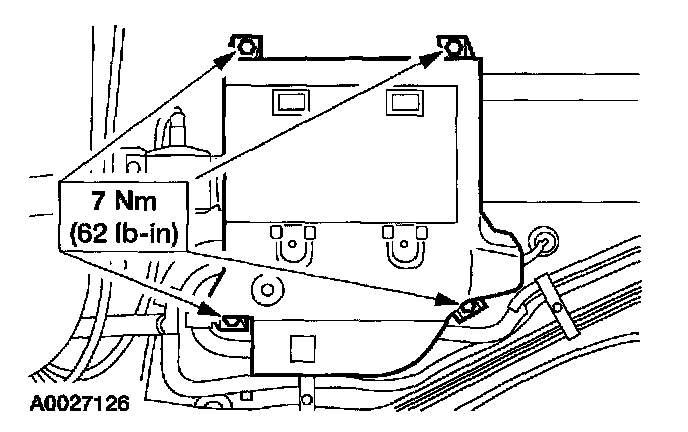

5. Remove the EVAP canister bracket assembly.

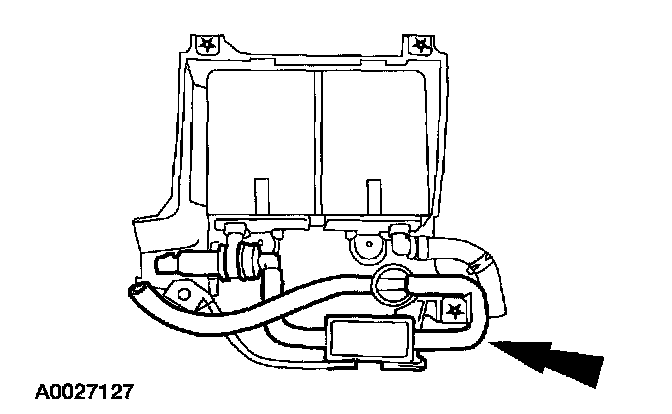

6. Remove the remote canister vent hose, dust separator and canister vent solenoid.

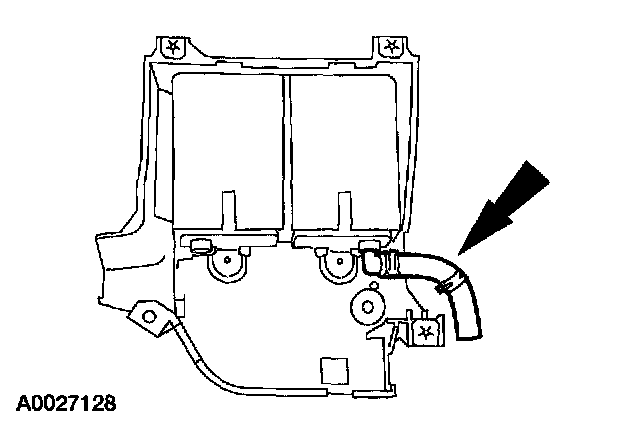

7. Remove the EVAP canister outlet tube.




8. Remove the EVAP canister.

NOTE: Lubricate all O-ring seals with MERPOL O-Ring Seal Lubricant.

9. To install, reverse the removal procedure.
1. Carry out a leak test. Refer to EVAPORATIVE EMISSION SYSTEM LEAK TEST.
2. Carry out the evaporative emission repair verification drive cycle. Refer to EVAPORATIVE EMISSION REPAIR VERIFICATION DRIVE CYCLE.
