Power Steering Pump to Steering Gear Pressure Line

POWER STEERING PUMP TO STEERING GEAR PRESSURE LINE-2.0L ZETEC
Removal
1. Raise and support the vehicle.





Note:
^ Drain the excess power steering fluid into a suitable drain pan.

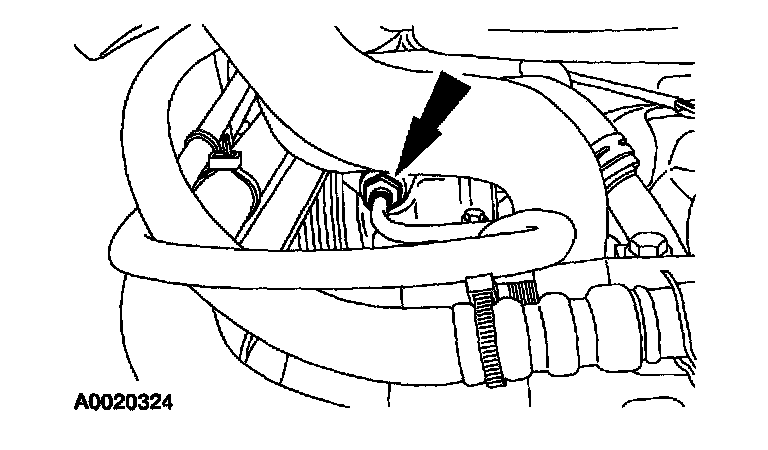

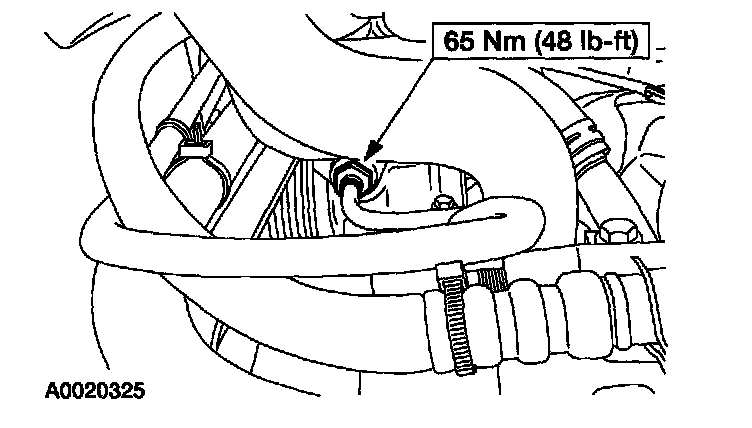

2. Disconnect the power steering pressure line from the power steering pump.
3. Lower the vehicle.





Note:
^ Do not drop the O-ring seals.

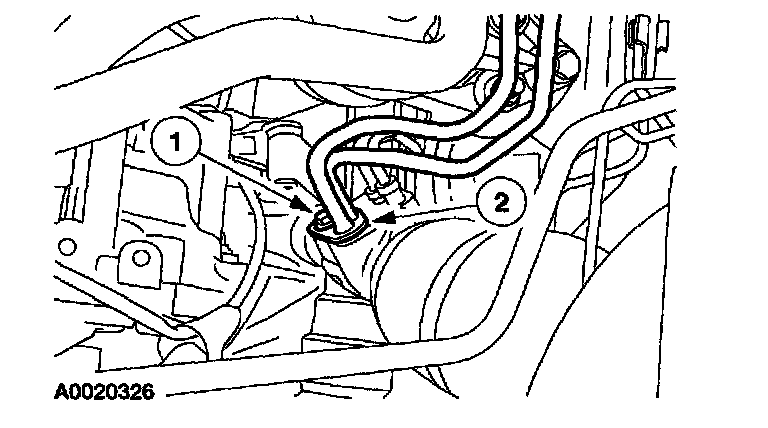

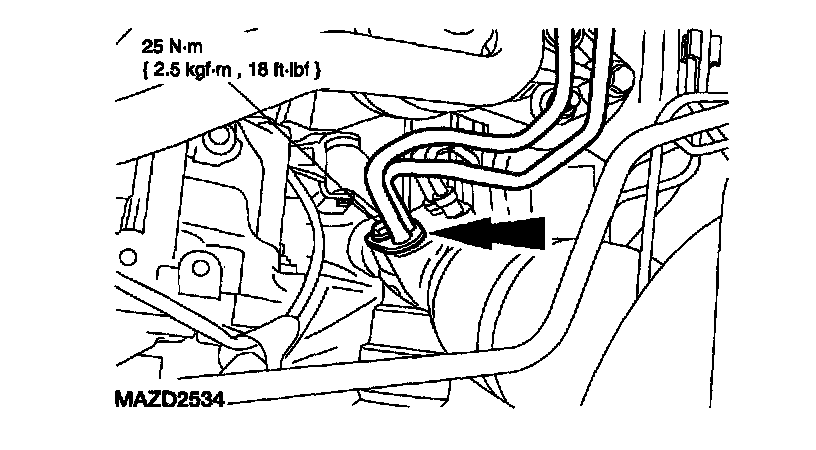

4. Disconnect the power steering pressure and return lines.
1. Remove the bolt.
2. Disconnect the power steering pressure and return lines.

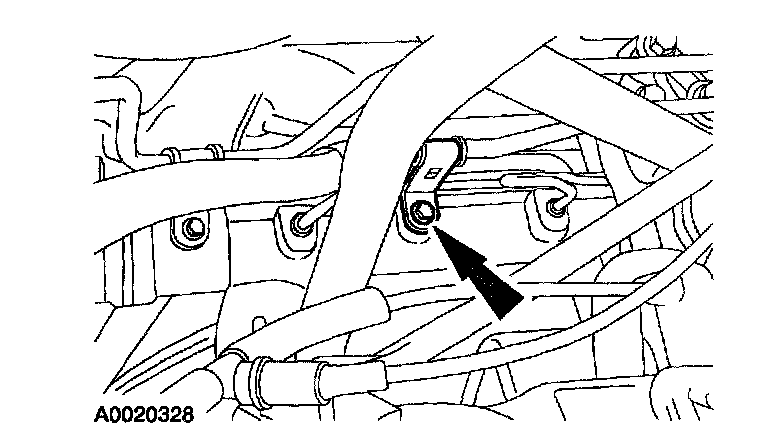

5. Remove the power steer bolt to the steering gear.

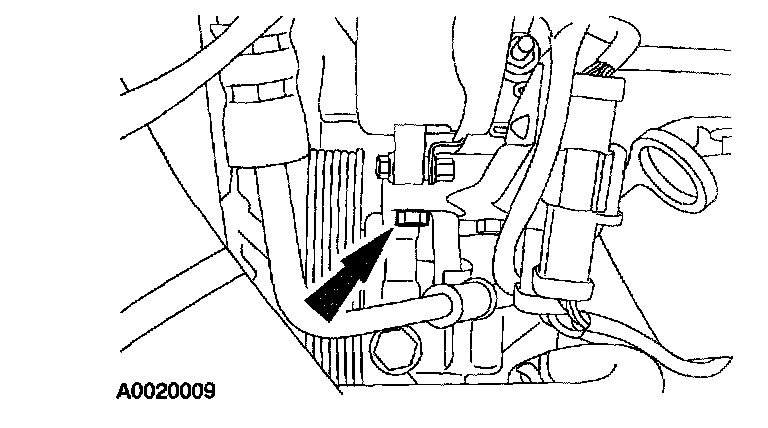

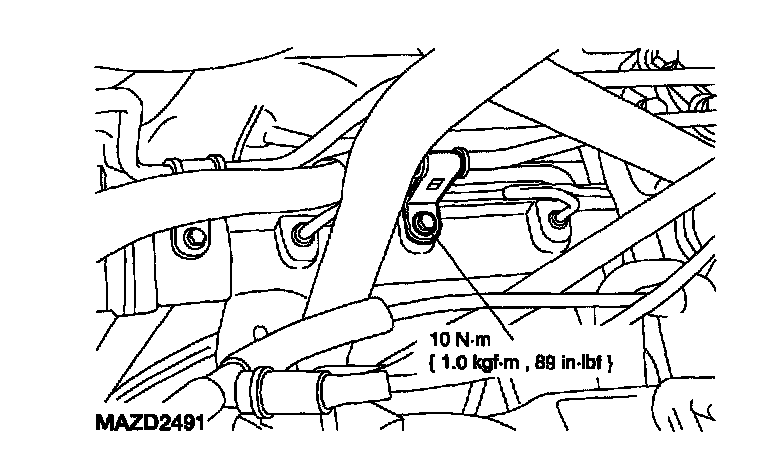

6. Remove the power steering pressure line bracket bolt to the engine lifting hook.

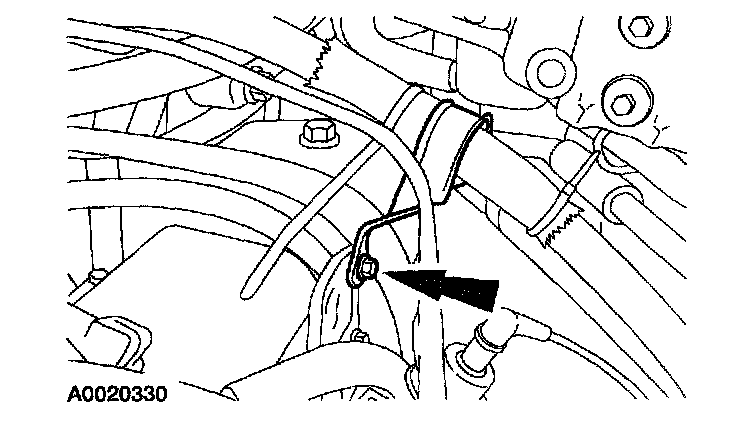

7. Remove the power steering pressure line bracket to engine bolt and the power steering pressure line.

Installation

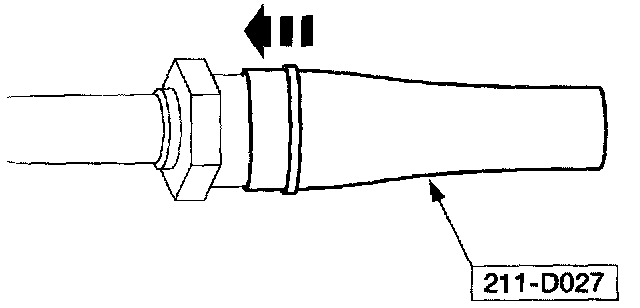

1. Using the special tool, install a new seal on the power steering pressure line fitting.
1. Remove and discard the original seal.
2. Stretch the seal over the special tool and slide it onto the tube nut.

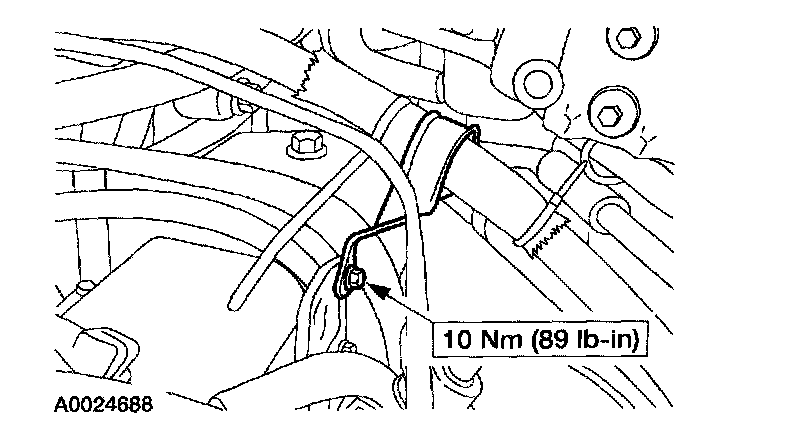

2. Install the power steering pressure line bracket to engine bolt.





3. Install the power steering pressure line bracket bolt to the engine lifting hook.

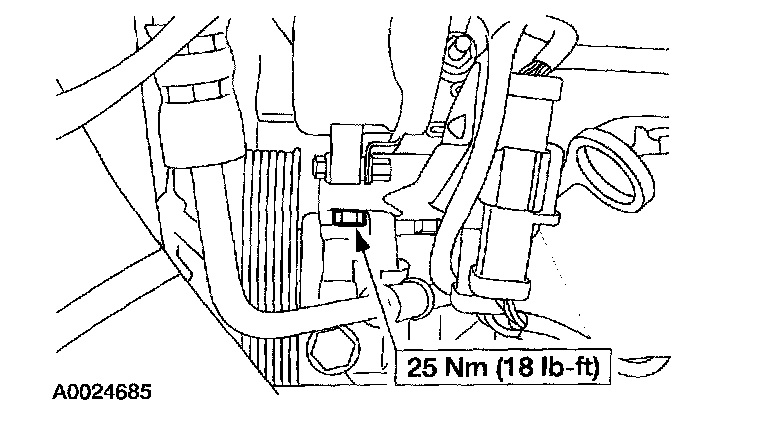

4. Install the power steering pressure line bracket bolt to the steering gear.





Note:
^ Make sure the O-ring seals are on the power steering pressure and return lines.

5. Connect the power steering pressure and return lines to the steering gear and install the bolt.
6. Raise the vehicle.





7. Connect the power steering pressure line to the power steering pump.
8. Lower the vehicle.
9. Fill, bleed and leak check the power steering system.
