Heater Hose: Service and Repair

Removal and Installation

1. Drain the engine coolant. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING.

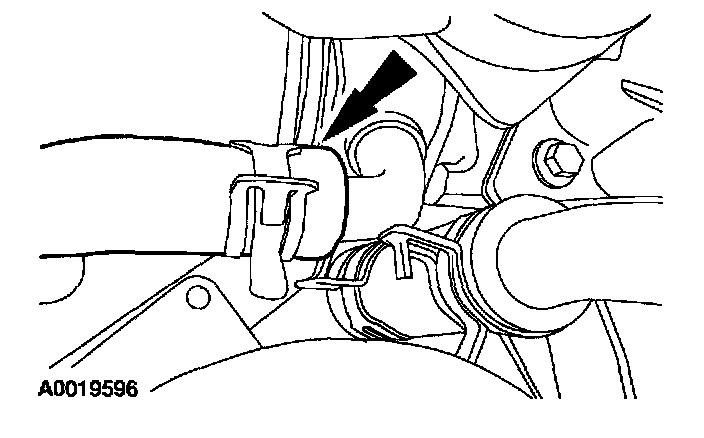

2. Disconnect the heater hoses from the heater core.




3. Disconnect the heater hose from the hose connection.
4. Remove the RH front wheel. For additional information, refer to WHEEL AND TIRE.




5. Disconnect the heater hose from the hose connection.
6. To install, reverse the removal procedure.
1. Lubricate the hoses with Rubber Suspension Insulator Lube.
