Condenser to Evaporator Line

CONDENSER TO EVAPORATOR LINE

Removal and Installation

1. Remove the A/C pressure cut-off switch. Refer to PRESSURE CUTOFF SWITCH.

2. Remove the evaporator core orifice. Refer to EVAPORATOR CORE ORIFICE.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

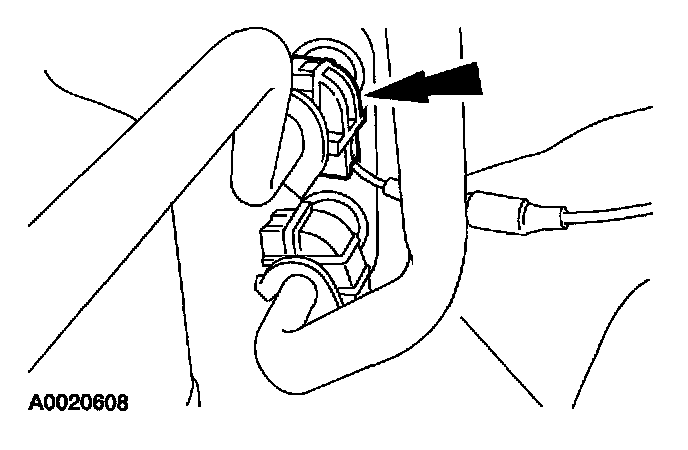

3. Disconnect the condenser to evaporator line from the A/C evaporator core. Refer to SPRING LOCK COUPLING.




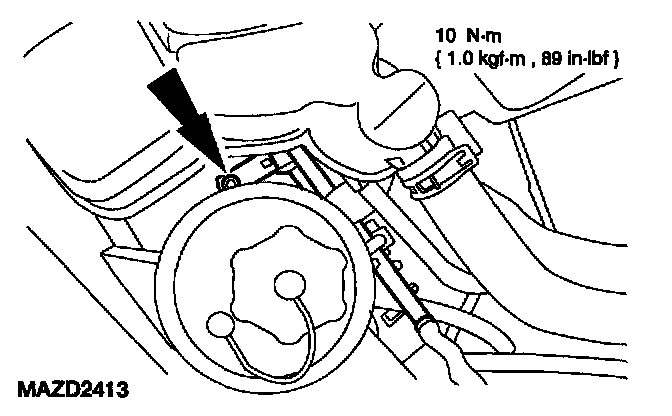

4. Remove the evaporator line support nut and remove the line from the A/C evaporator core.
5. Remove the front bumper cover. Refer to FRONT BUMPER COVER.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

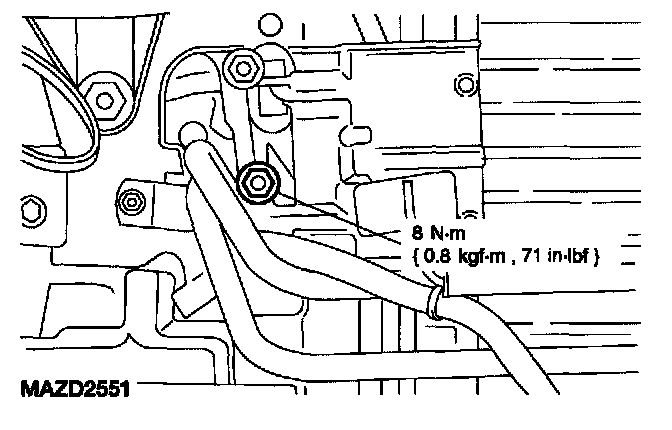

6. Remove the nut and disconnect the condenser to evaporator line from the A/C condenser core and remove the condenser to evaporator line.
7. To install, reverse the removal procedure.
- Lubricate the O-ring seals with PAG compressor oil. Refer to REFRIGERANT OIL ADDING.
