Air Door Cable: Service and Repair

TEMPERATURE BLEND DOOR CONTROL CABLE

Removal and Installation

1. Disconnect the negative battery cable. For additional information, refer to BATTERY DISCONNECT.




2. Lower the glove compartment.
1. Press the glove compartment release tabs inward while pulling downward on the glove compartment door.




3. Disconnect the temperature blend door control cable.

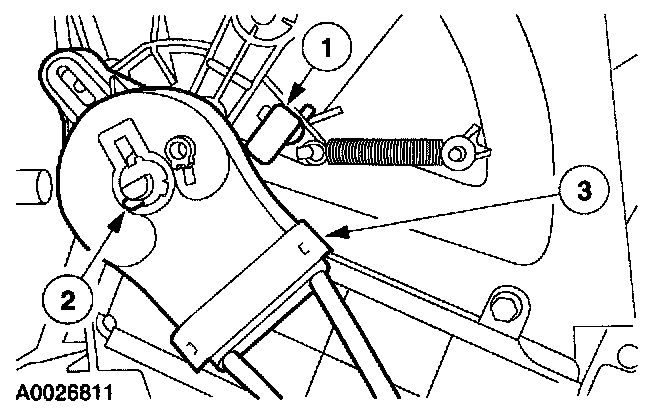

1. Align the locator holes and insert the special tool.
2. Release the locking tab.
3. Remove the temperature blend door control cable from the blend door shaft.




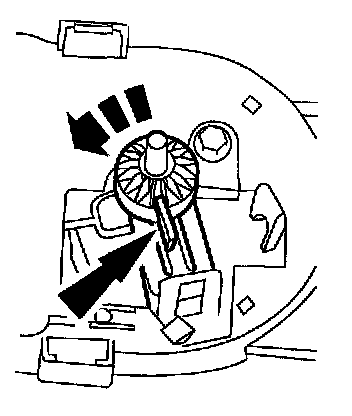

4. Remove the instrument cluster finish panel.
1. Remove the two screws.
2. Remove the instrument cluster finish panel and disconnect the electrical connectors.

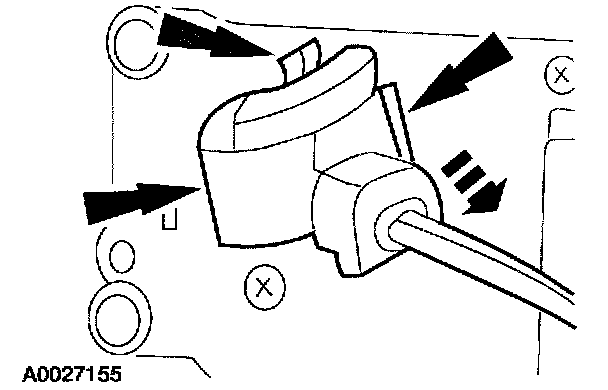

5. Depress the three tabs and remove the temperature blend door control cable.






NOTE: Rotate the gear to align the locking tab with the notch in the gear before installing.

6. To install, reverse the removal procedure.
