Thermostat Housing: Service and Repair

THERMOSTAT HOUSING-2.0L ZETEC

Removal and Installation
1. Remove the thermostat.

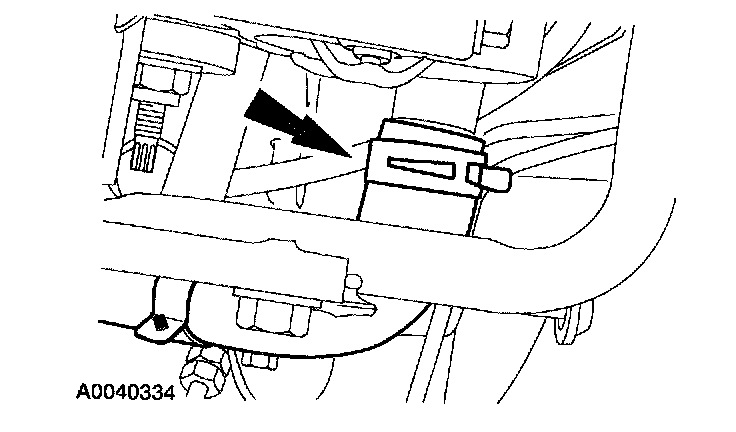

2. Disconnect the heater hose and position out of the way.

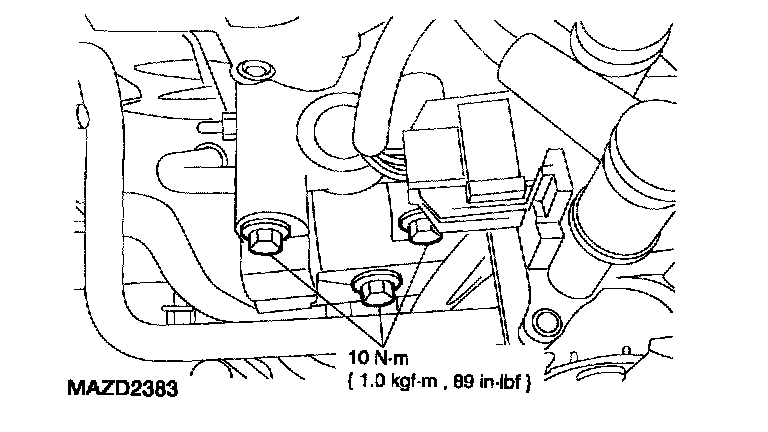

3. Remove the thermostat housing.

Note:
^ Clean and inspect the sealing surfaces.

4. To install, reverse the removal procedure.
