Antilock Brakes / Traction Control Systems

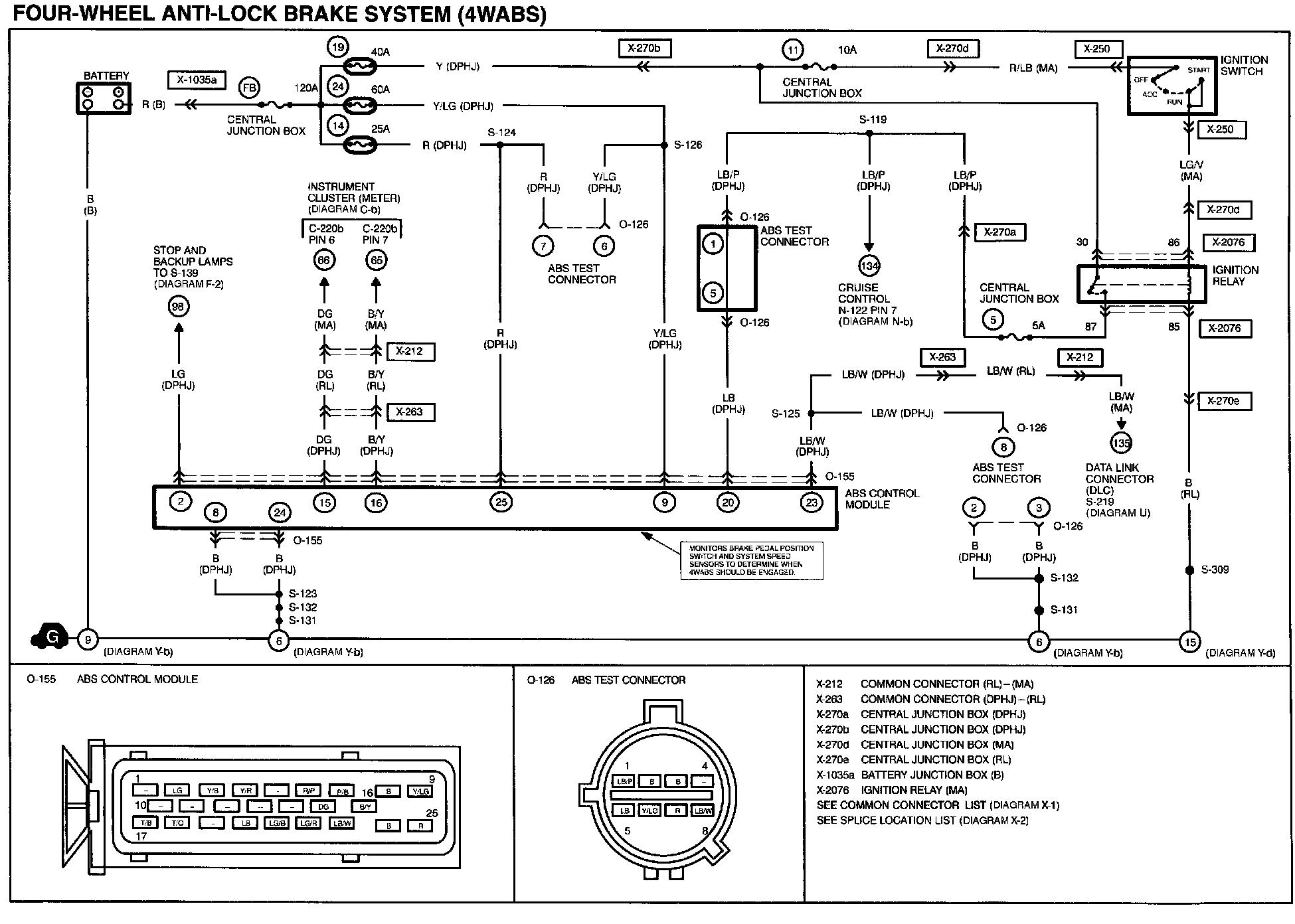

Diagram O-a:

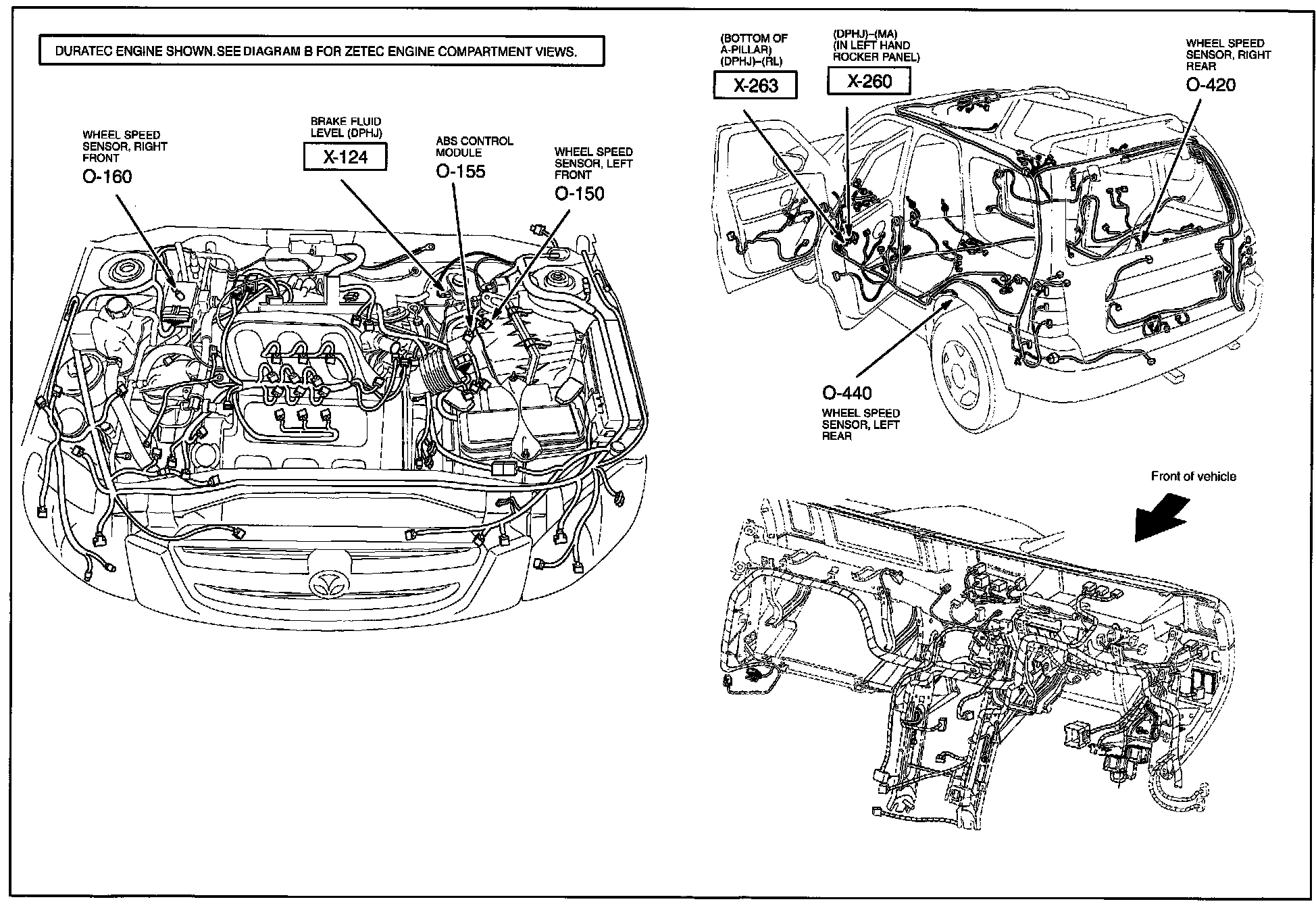

Routing View O-a:

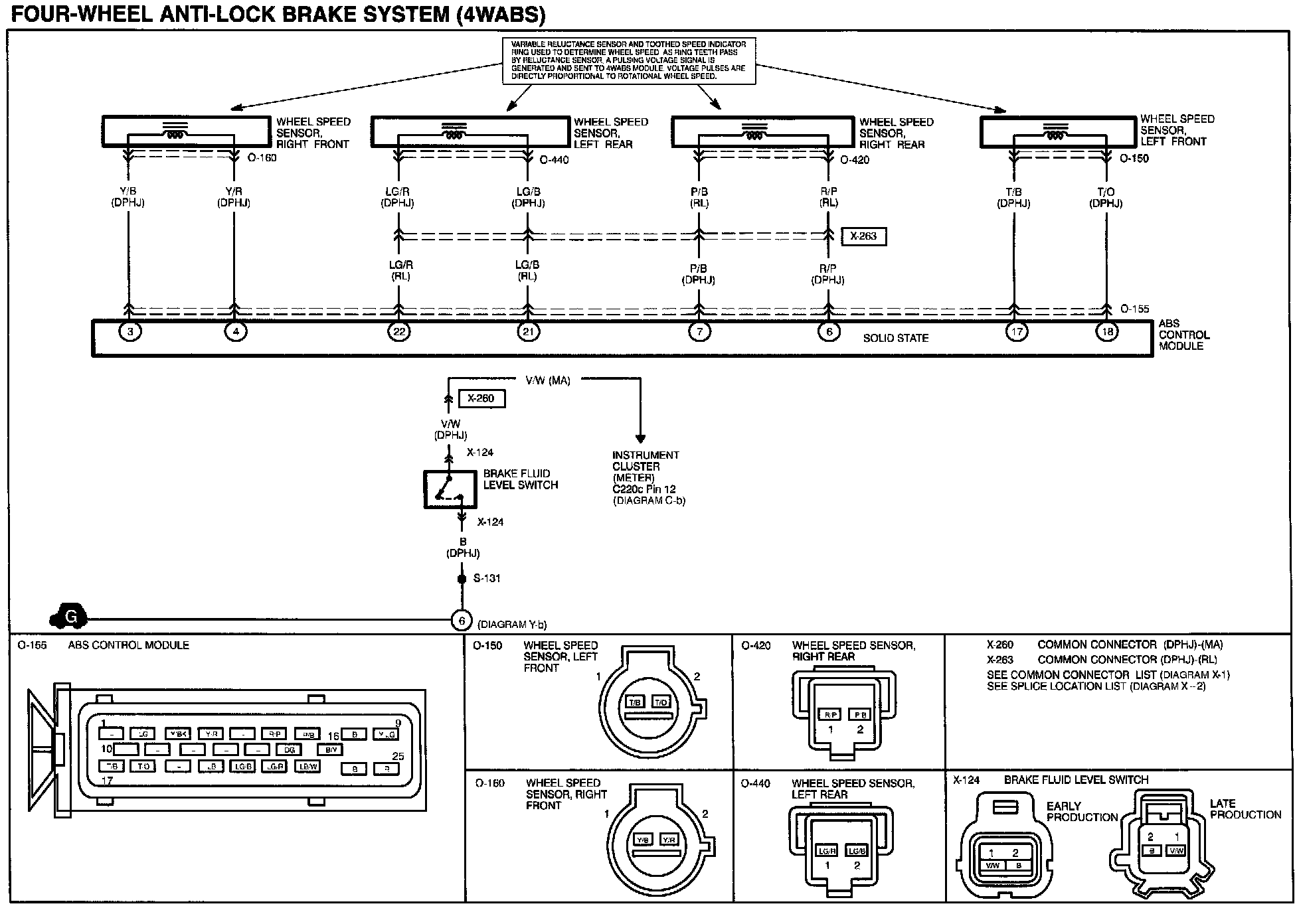

Diagram O-b:

Routing View O-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
