Air Bag Systems

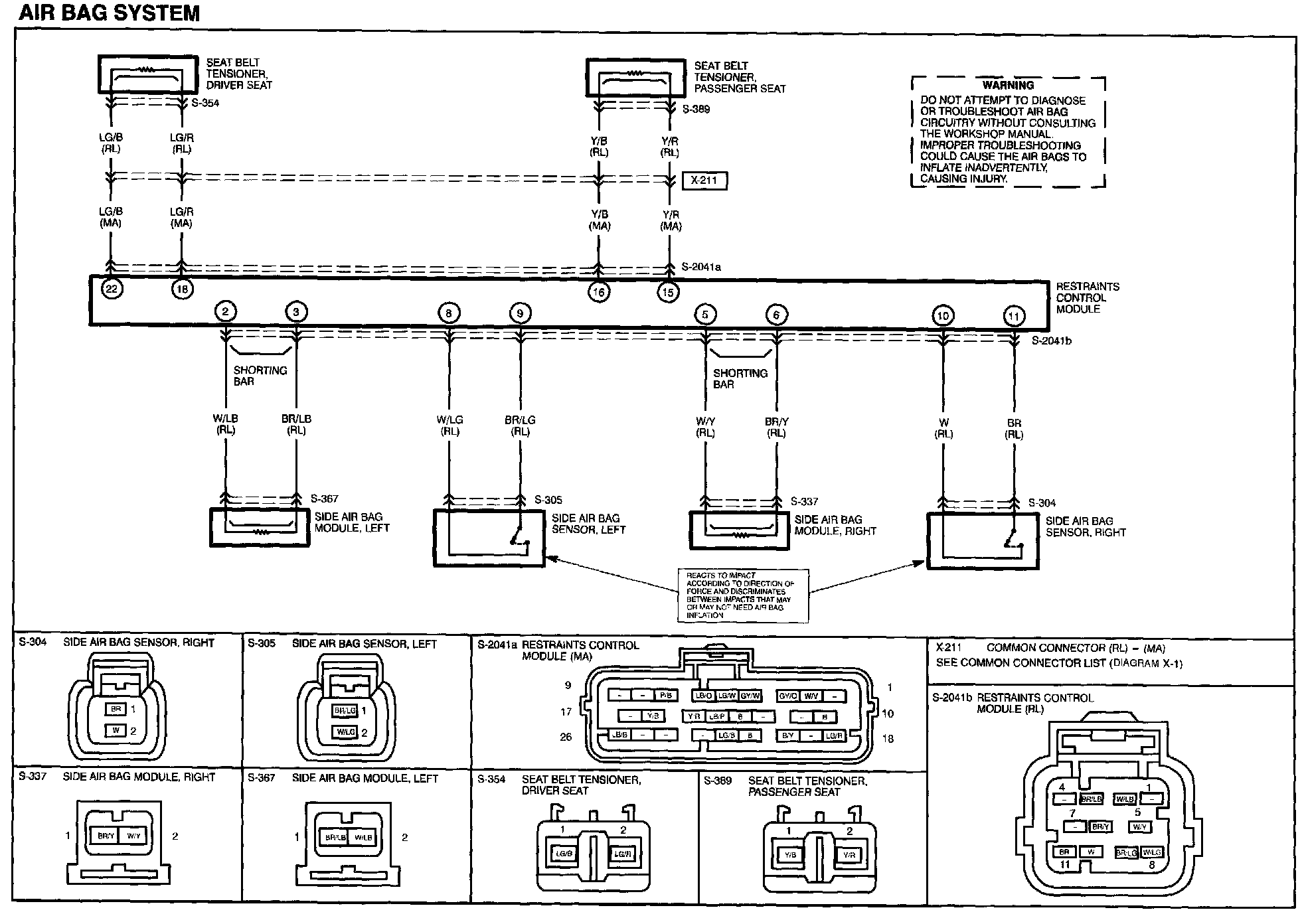

Diagram S-a:

�bFRouting View S-a:

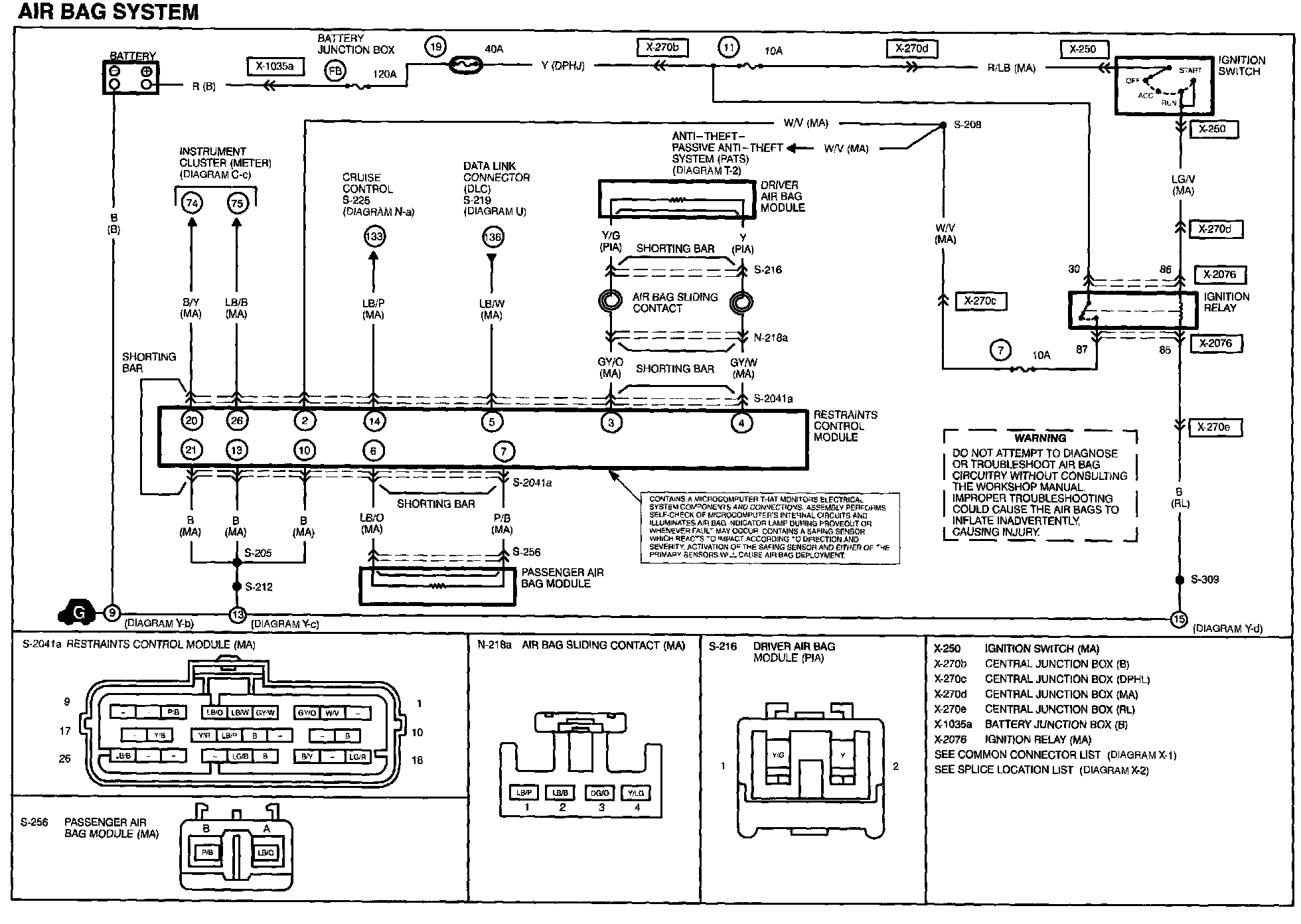

Diagram S-b:

Routing View S-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
