Parking Brake Cable: Adjustments

PARKING BRAKE CABLE ADJUSTMENT





Vehicles with low series floor console
1. Remove the floor console front finish panel.

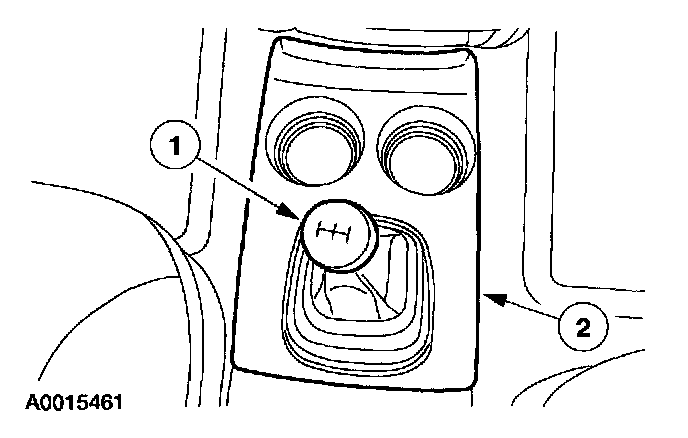

1. If equipped, remove the manual transaxle shift knob by turning it counterclockwise.

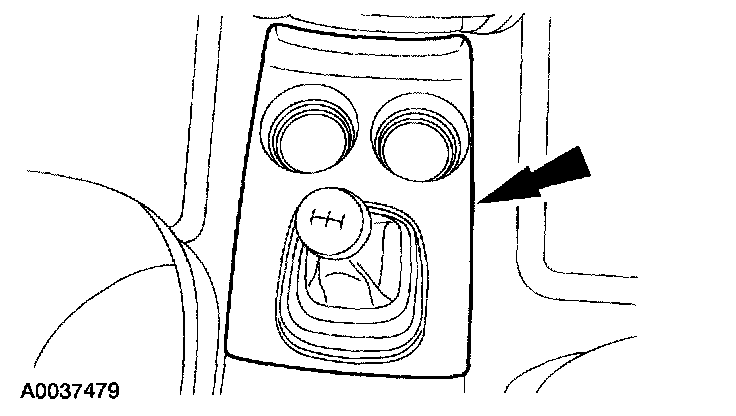

2. Remove the floor console front finish panel.

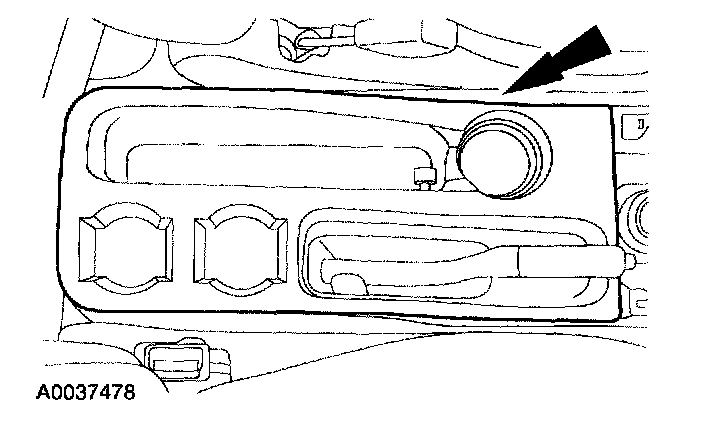

2. Remove the floor console rear finish panel.

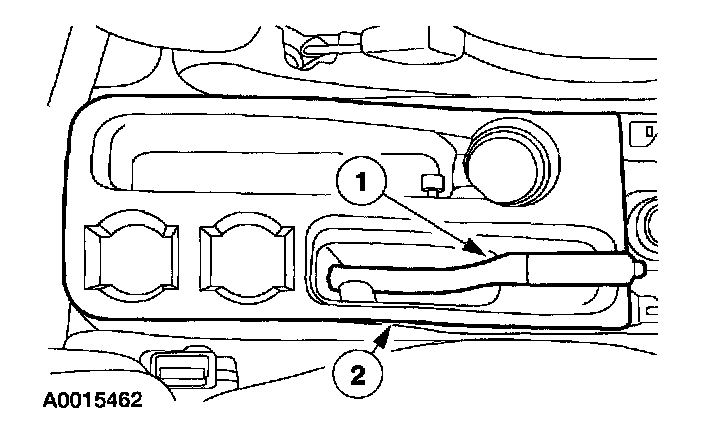

1. Apply the parking brake.
2. Remove the floor console rear finish panel.





Vehicles with high series floor console

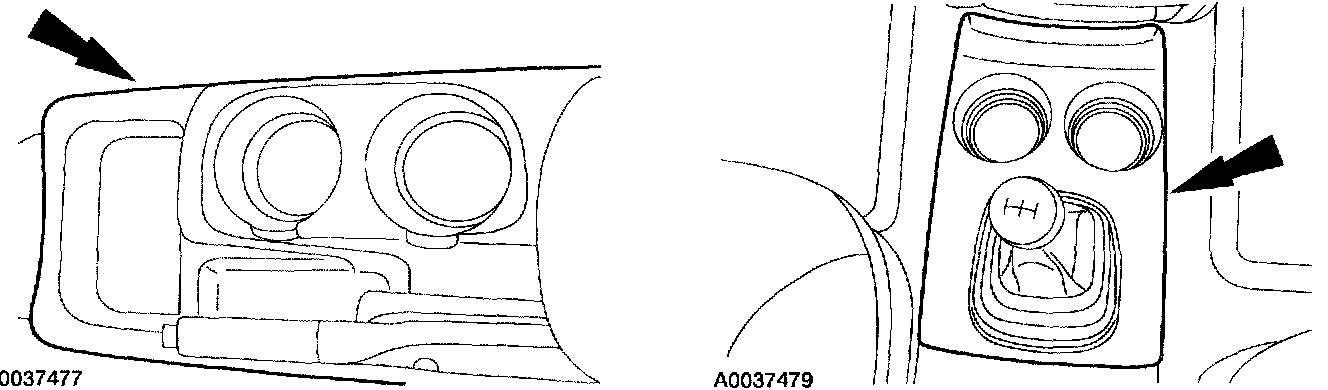

3. Remove the floor console finish panel.

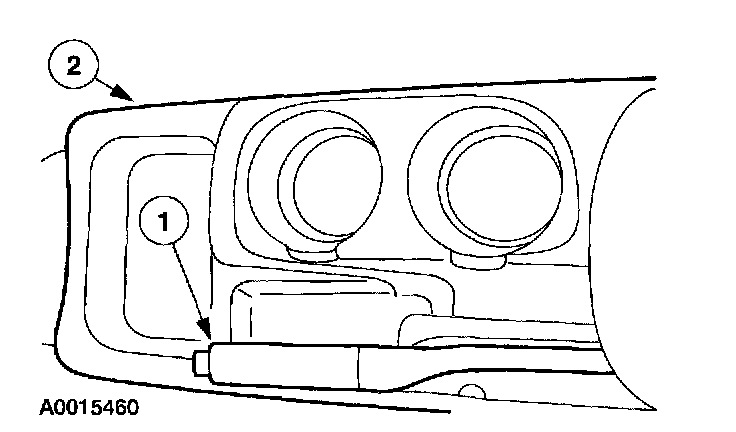

1. Apply the parking brake.
2. Remove the floor console finish panel.

All vehicles

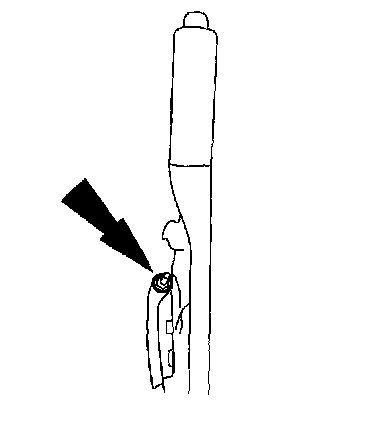

4. Remove the adjustment nut clip.





5. Turn the parking brake control adjustment nut so that the parking brake control stroke is three to five notches when pulled.
6. Confirm the parking brake is applied.
7. Install the adjustment nut clip.





Vehicles with high series floor console
8. Install the floor console finish panel.





Vehicles with low series floor console
9. Install the floor console rear finish panel.





10. Install the floor console front finish panel.
^ If equipped, install the manual transaxle shifter knob.
