Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Removal and Installation

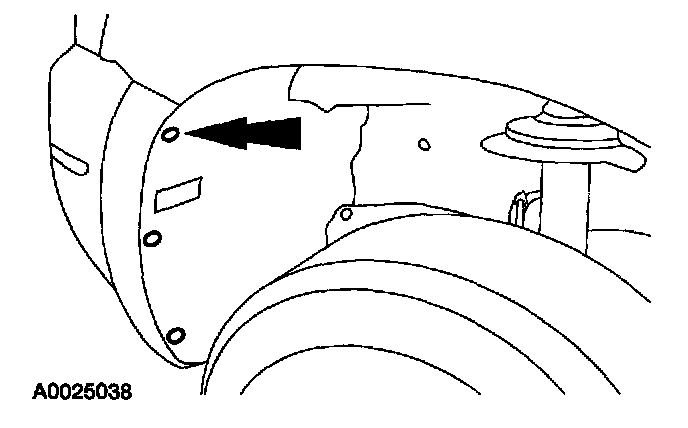

1. Remove the six pin-type retainers (three each side).

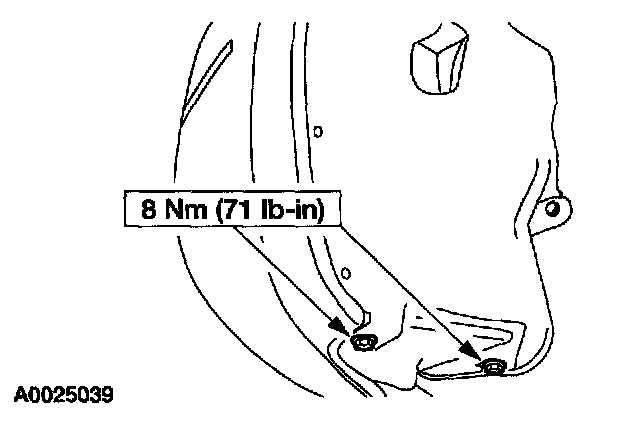

2. Remove the four front bumper cover bolts (two each side).

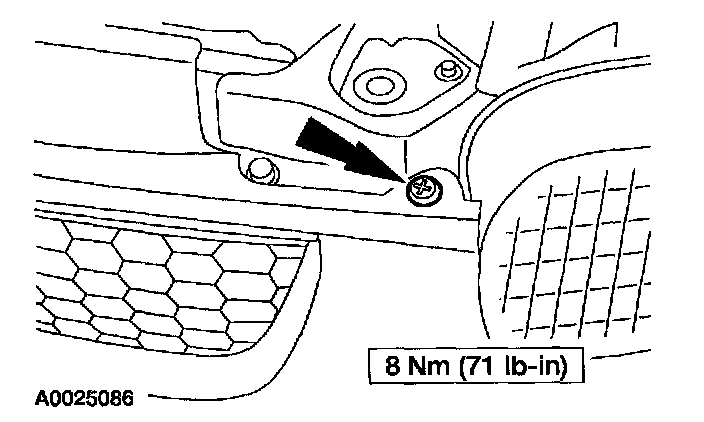

3. Remove the two front bumper cover to front fender pin-type retainers (one each side).
4. If equipped, disconnect the fog lamp electrical connectors.

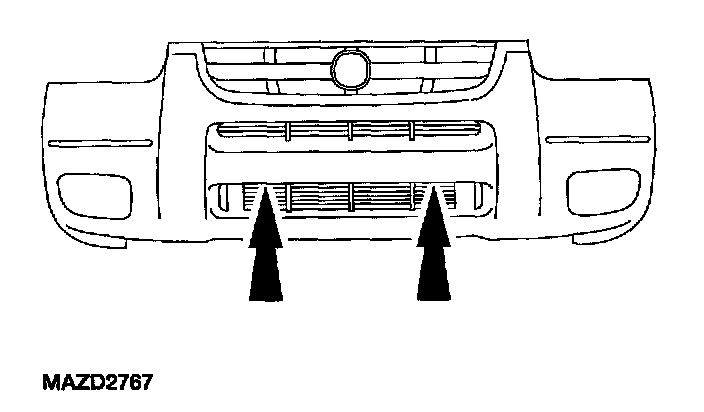

5. Remove the lower front bumper cover bolts.






6. Remove the pin-type retainers.






7. Remove the two upper bolts (one each side) and the front bumper cover.
8. To install, reverse the removal procedure.
1. When installing, be sure to position the front bumper cover into the bumper slides.
2. Transfer components as necessary.
