Diagnostic Assist Function
DIAGNOSTIC ASSIST FUNCTIONStructural View Switch Location:

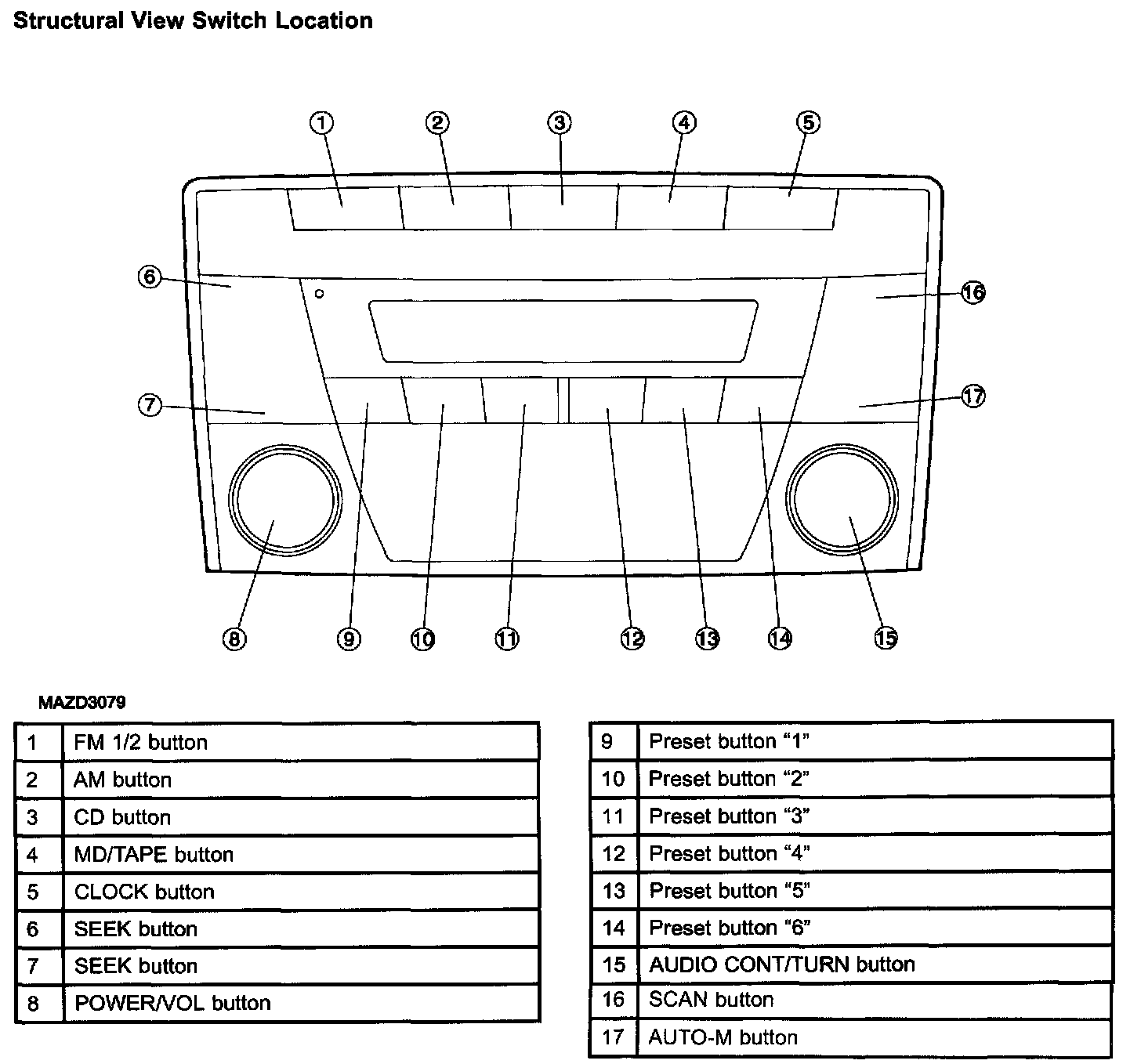

Structural View Switch Location

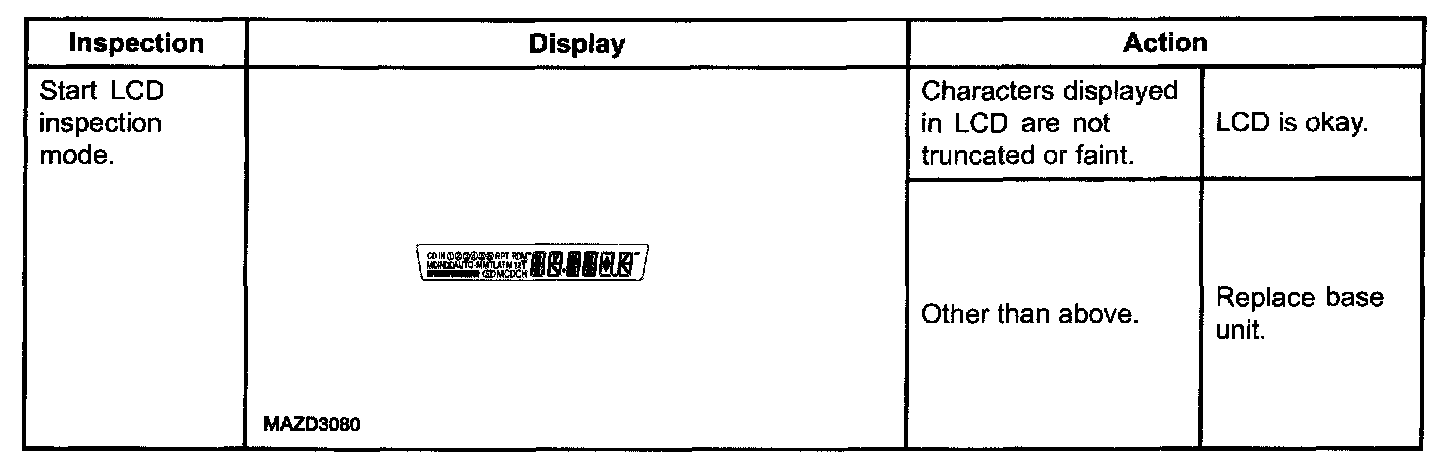

LCD Inspection
1. With audio on, first press the POWER button and hold it, then press the SEEK button (upper) for approximately 1 second.
2. Inspect the LCD according to the given table.
3. Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.

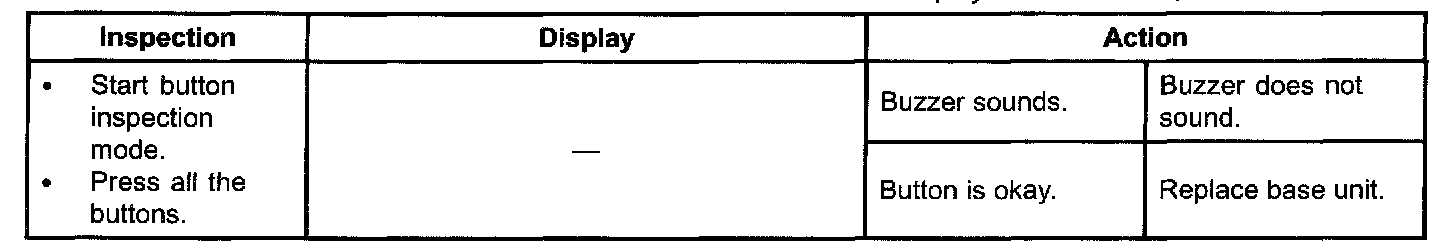

Button Inspection
1. With audio on, first press the POWER button and hold it, then press the CLOCK button for approximately 1 second.
2. Inspect the button according to the given table.
NOTE:
- The button inspection mode is designed for base unit button. The following lower module button cannot be inspected in this mode. (A buzz will not sound.)
- Cassette deck: DOLBY button, EJECT button.
- MD player: DISP button, EJECT button.
3. Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.

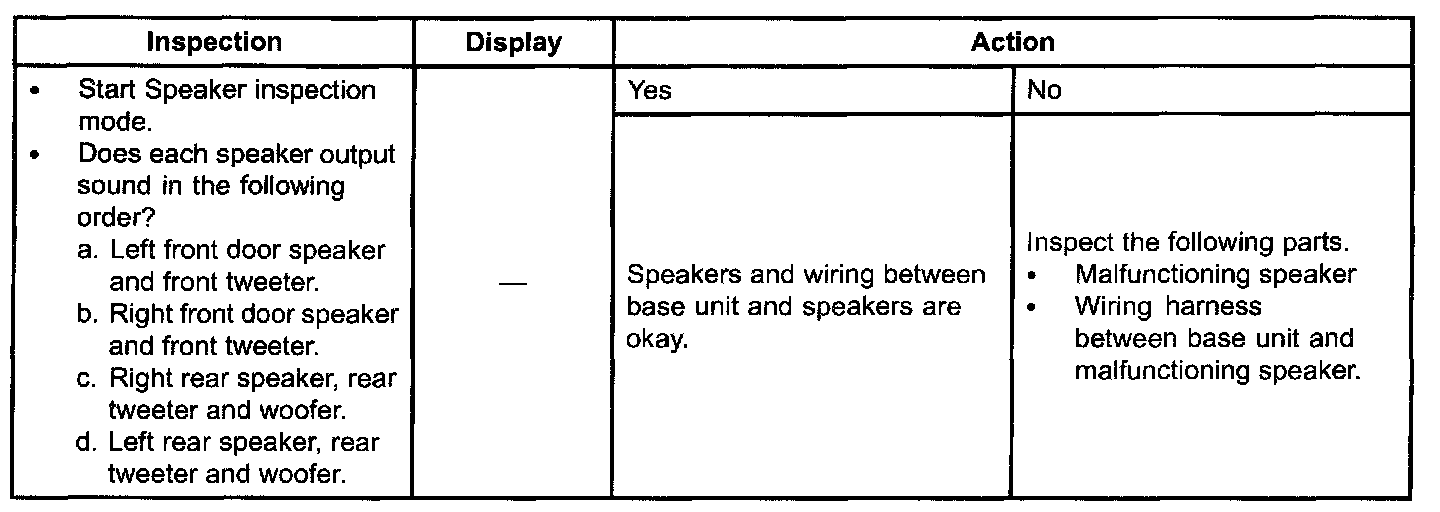

Speaker Inspection
1. With audio on, first press the POWER button and hold it, then press the AUTO-M button for approximately 1 second.
2. Inspect the speaker according to the given table.
3. Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.

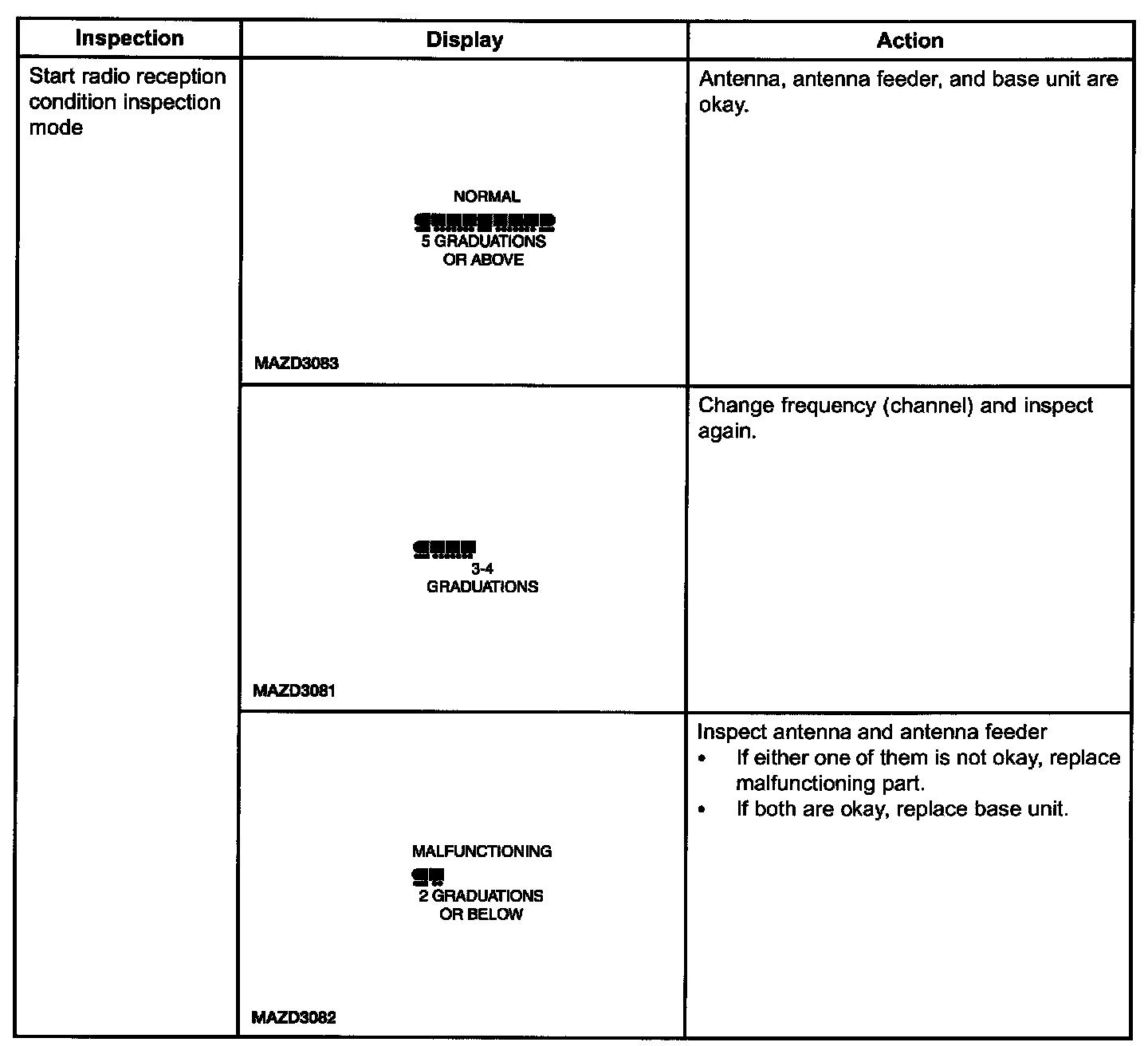

Radio Reception Condition Inspection
1. With audio on and in radio mode, first press the POWER button and hold it, then press the "2" button for approximately 1 second.
2. Inspect the radio reception condition according to the given table.
3. Turn the audio off or the ignition switch to the LOCK position to stop the diagnostic assist function.
