Antenna: Service and Repair

ANTENNA BASE

Removal and Installation

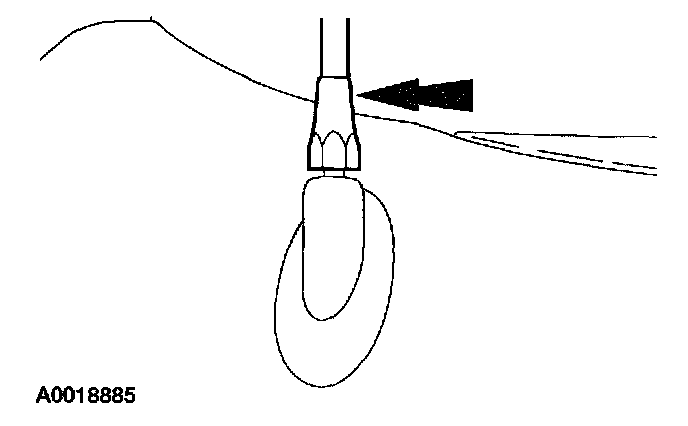

1. Remove the antenna mast.
2. Remove the right lower A-pillar trim.

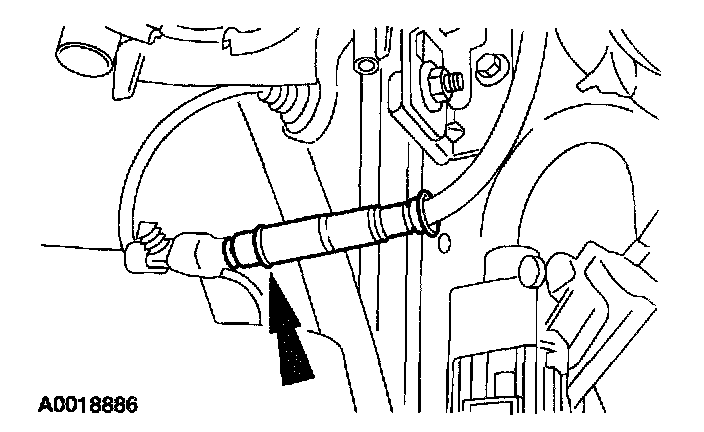

3. Disconnect the antenna cable connector and pull the pin-type retainer away from the body.
4. Remove the fender splash shield. For additional information, refer to FENDER SPLASH SHIELD.

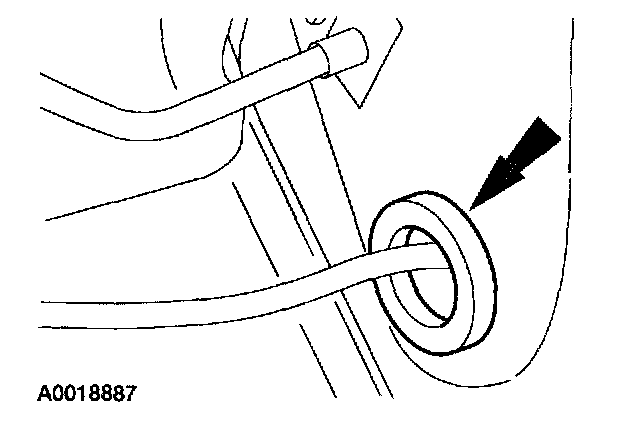

5. Remove the rubber grommet and pull the cable into the fender area.

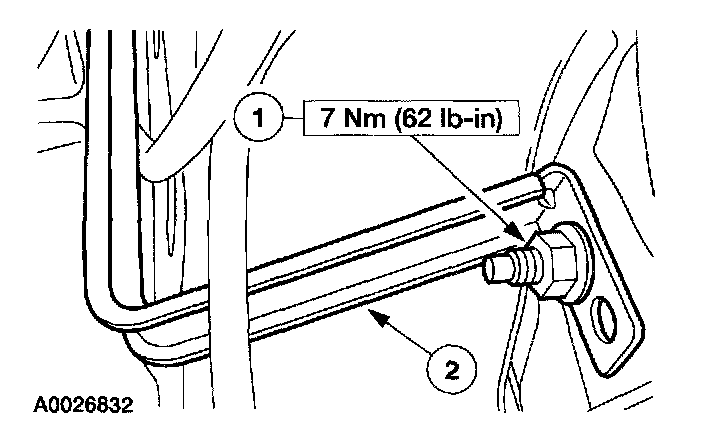

6. Remove the antenna.
1. Remove the nut.
2. Remove the antenna out through the fender opening.
7. To install, reverse the removal procedure.
