Radiator: Service and Repair

RADIATOR REMOVAL / INSTALLATION-4.0L
1. Drain the engine coolant.

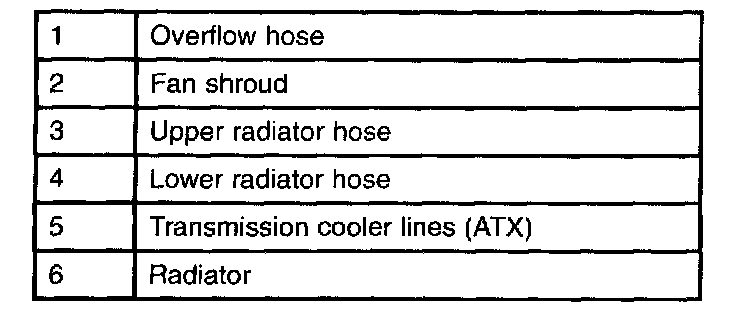

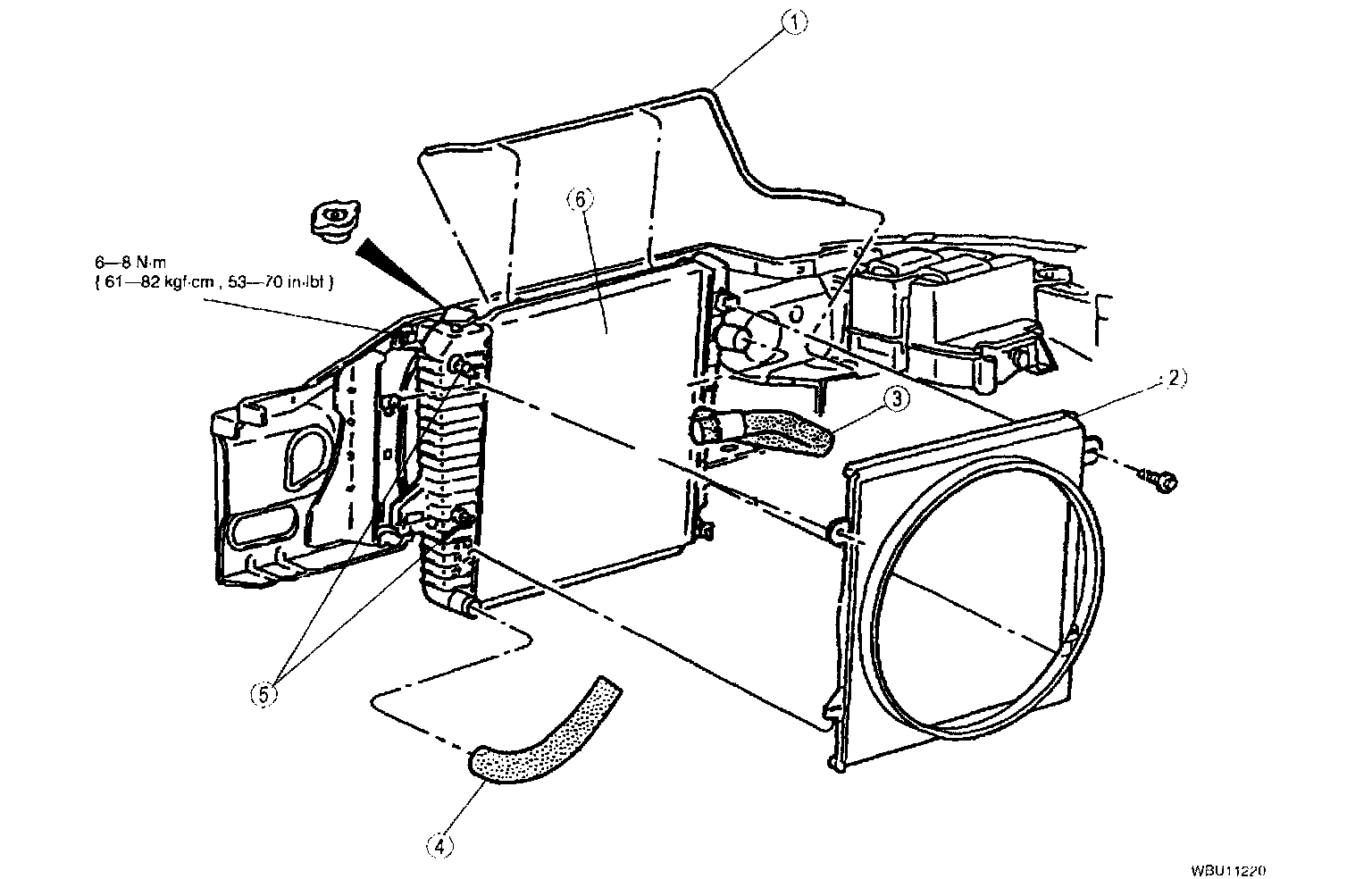

2. Remove in the order shown in the figure.
3. Install in reverse order of removal

Steps After Procedure
1. Fill the radiator with the specified amount and type of engine coolant and bleed the cooling system.
