Engine - Coolant Temperature Sensor/Switch: Service and Repair

WATER TEMPERATURE SENDING UNIT REMOVAL / INSTALLATION - 4.0L
1. Disconnect the negative battery cable.
2. Drain the engine cooling system.
3. Remove the thermostat.





4. Disconnect the electrical connector.

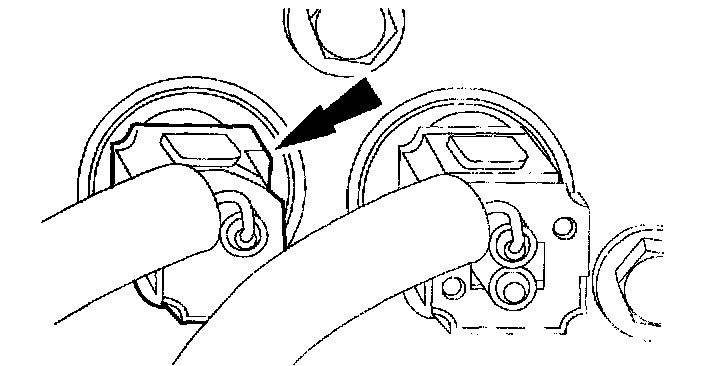

5. Remove the water temperature indicator sending unit.
6. To install, reverse the removal procedure.
