Door Sensor/Switch (For Alarm): Service and Repair

DOOR DISARM SWITCH REMOVAL/INSTALLATION

1. Remove the front door trim panel.
2. Position the watershield aside.




3. Remove the door disarm switch.

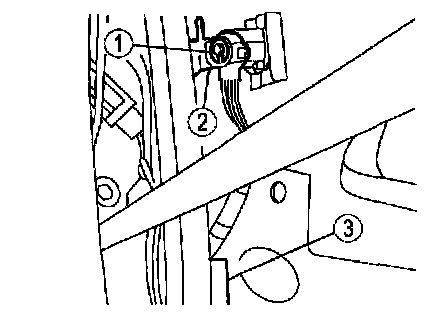

1. Remove the E-clip.
2. Remove the door lock rod actuator.
3. Disconnect the electrical connector.

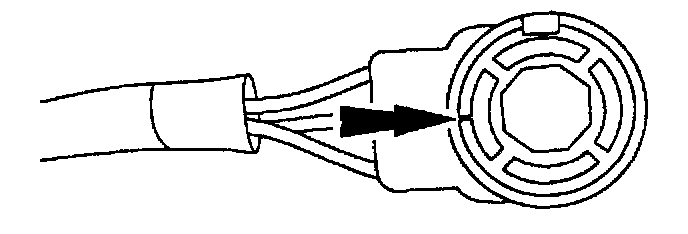

NOTE: The door disarm switch locator mark must be in the down position prior to installation.

4. Install in reverse order of removal.
