Removal and Replacement

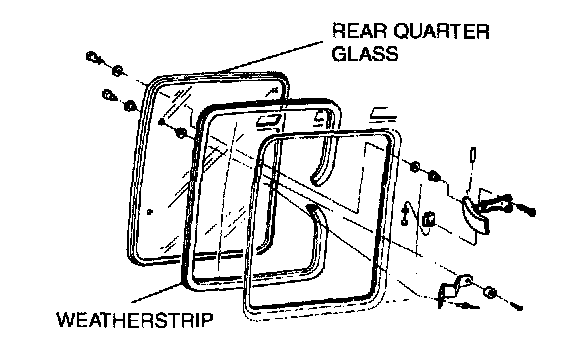

QUARTER WINDOW MOLDING REMOVAL/INSTALLATION

1. Remove the necessary interior trim from around the glass to gain access to the nuts.
2. Remove the nuts.
3. Remove the molding.






4. Install in reverse order of removal.

Tightening torque: 1-1.9 N-m (10.2 - 20.3 kgf-cm, 8.8-17.7 in-lbf)
