Quarter Glass Rear (Moveable)

QUARTER GLASS REAR (MOVEABLE) REMOVAL/INSTALLATION

NOTE: The rear quarter glass must be open to perform this step.




1. Remove the two screws attaching the window latch to the glass.
2. Remove the B-pillar trim panel.

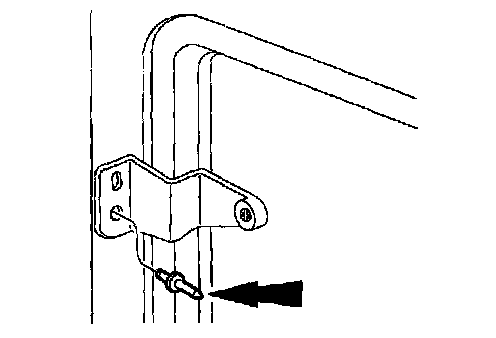

3. Drill out the four rivets that attach the hinges to the body panel.
4. Remove the rear quarter glass.
5. Install in reverse order of removal.
