Quarter Glass Rear (Fixed)

QUARTER GLASS REAR (FIXED) REMOVAL/INSTALLATION

1. Remove the B-pillar trim panel.

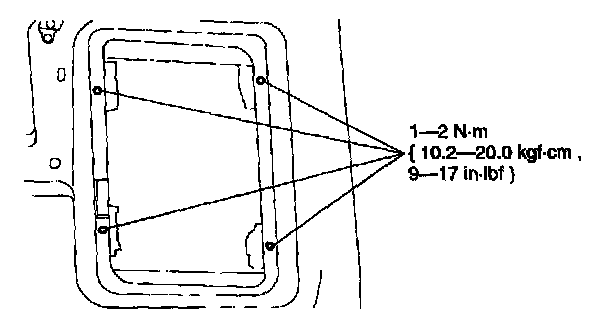

2. Remove the nuts.
3. Cut the sealant from around the window.
4. Remove the rear quarter glass.

NOTE: Clean area around glass prior to installation.
Apply sealant to the window prior to installation

5. Install in reverse order of removal.
6. Test glass for water leaks.
