Door Glass Run Retainer, Top

DOOR GLASS RUN RETAINER, TOP REMOVAL/INSTALLATION

1. Remove the door glass.

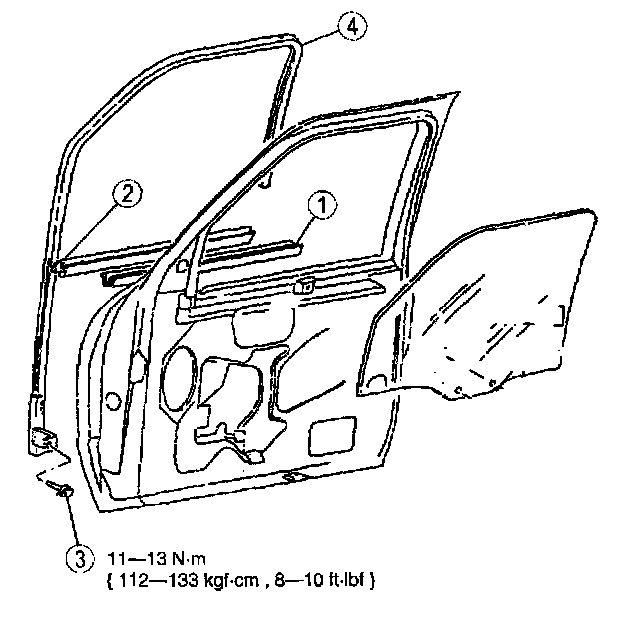

2. Remove in order shown in figure.
1. Beltline molding (inside)
2. Beltline molding (outside)
3. Bolt
4. Top door glass run retainer.

3. Install in reverse order of removal.
