Door Glass Run Retainer, Center

DOOR GLASS RUN RETAINER, CENTER REMOVAL/INSTALLATION

1. Remove the door glass; DOOR GLASS FRONT REMOVAL/INSTALLATION.

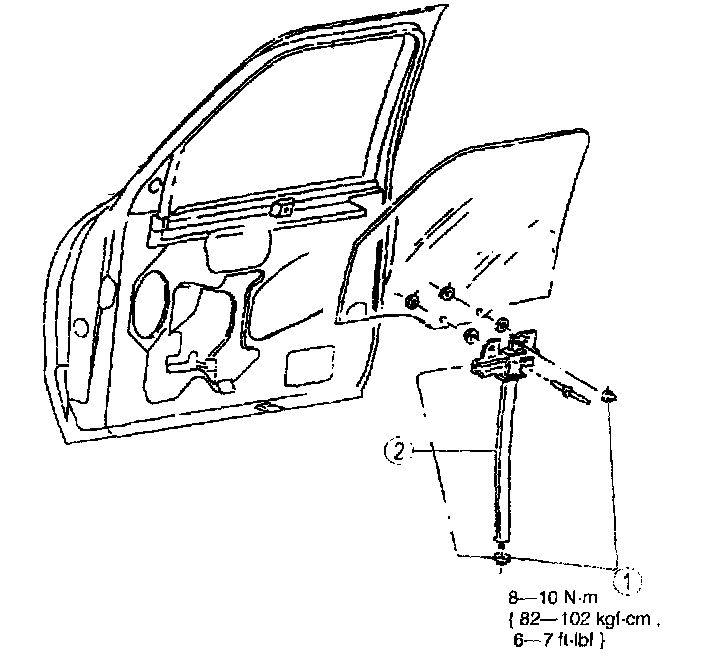

2. Remove in order shown in figure.
1. Nuts
2. Center door glass run retainer

3. Install in reverse order of removal.
