Door Glass

DOOR GLASS FRONT REMOVAL/INSTALLATION

NOTE: Position the door glass half-way up to gain access to the rivets.

1. Remove the front door trim panel and watershield.




2. Remove in order shown in figure.
1. Bolt
2. Door glass run retainer
3. Rivets
4. Door glass

3. Install in reverse order of removal.

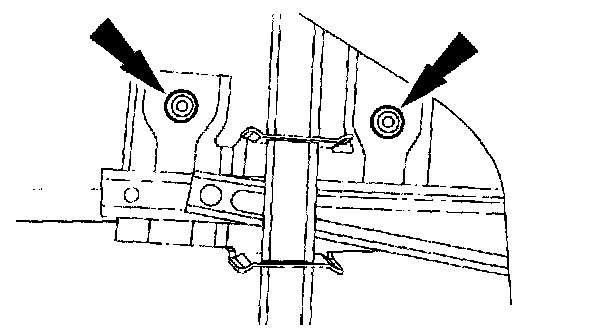

Rivets Removal Note
- Support window glass before removing the rivets.




- Use a drift punch to remove the steel centers and a 6.35 mm (1/4 in) diameter drill bit to remove the rivets.
