With Scan Tool

On-Board Diagnostic Test - Worldwide Diagnostic System (WDS) 418-FS475 or equivalent Hook-Up Procedure

On-Board Diagnostic Test

DTCs Reading Procedure
1. Perform the necessary vehicle preparation and visual inspection.

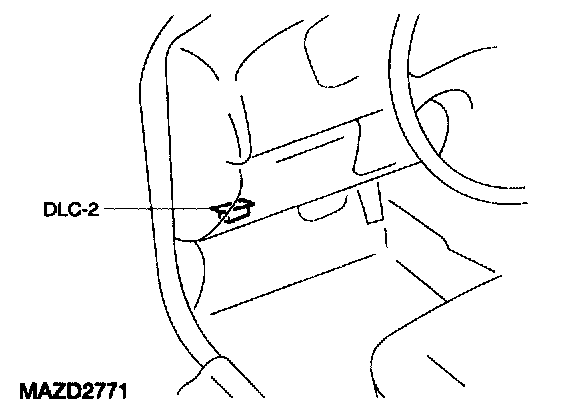

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Retrieve DTCs by WDS or equivalent.

Pending Trouble Code Access Procedure
1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

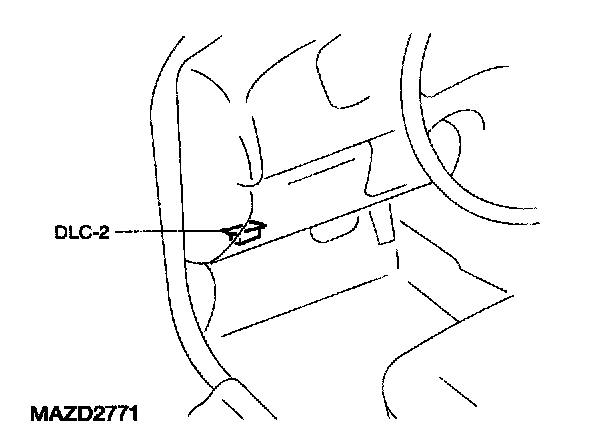

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Retrieve PENDING TROUBLE CODES by WDS or equivalent.
