Instrument Panel Register Duct

INSTRUMENT PANEL REGISTER DUCT REMOVAL/INSTALLATION - LH




1. Remove the LH instrument panel finish panel.
2. Remove the two screws and remove the LH instrument panel register duct.
3. Install in reverse order of removal.

INSTRUMENT PANEL REGISTER DUCT REMOVAL/INSTALLATION - RH

1. Remove the RH instrument panel register.
2. Remove the passenger side air bag module.
3. Remove the two RH instrument panel register duct screws then remove the duct.

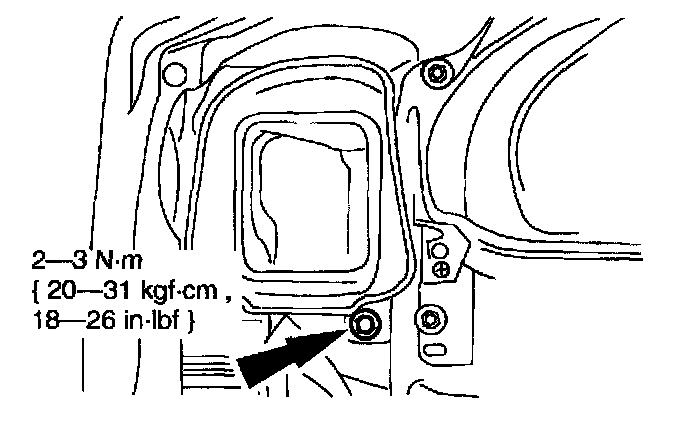

Tightening Torque
2 - 3 N.m {20 - 3O kgf.cm, 18 - 26 in.lbf}.

4. Install in reverse order of removal.

INSTRUMENT PANEL DUCT REGISTER CENTER REMOVAL/INSTALLATION

1. Remove the center instrument panel register.
2. Remove the center instrument panel register duct screws then remove the duct.

Tightening torque
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf)

3. Install in reverse order of removal.
