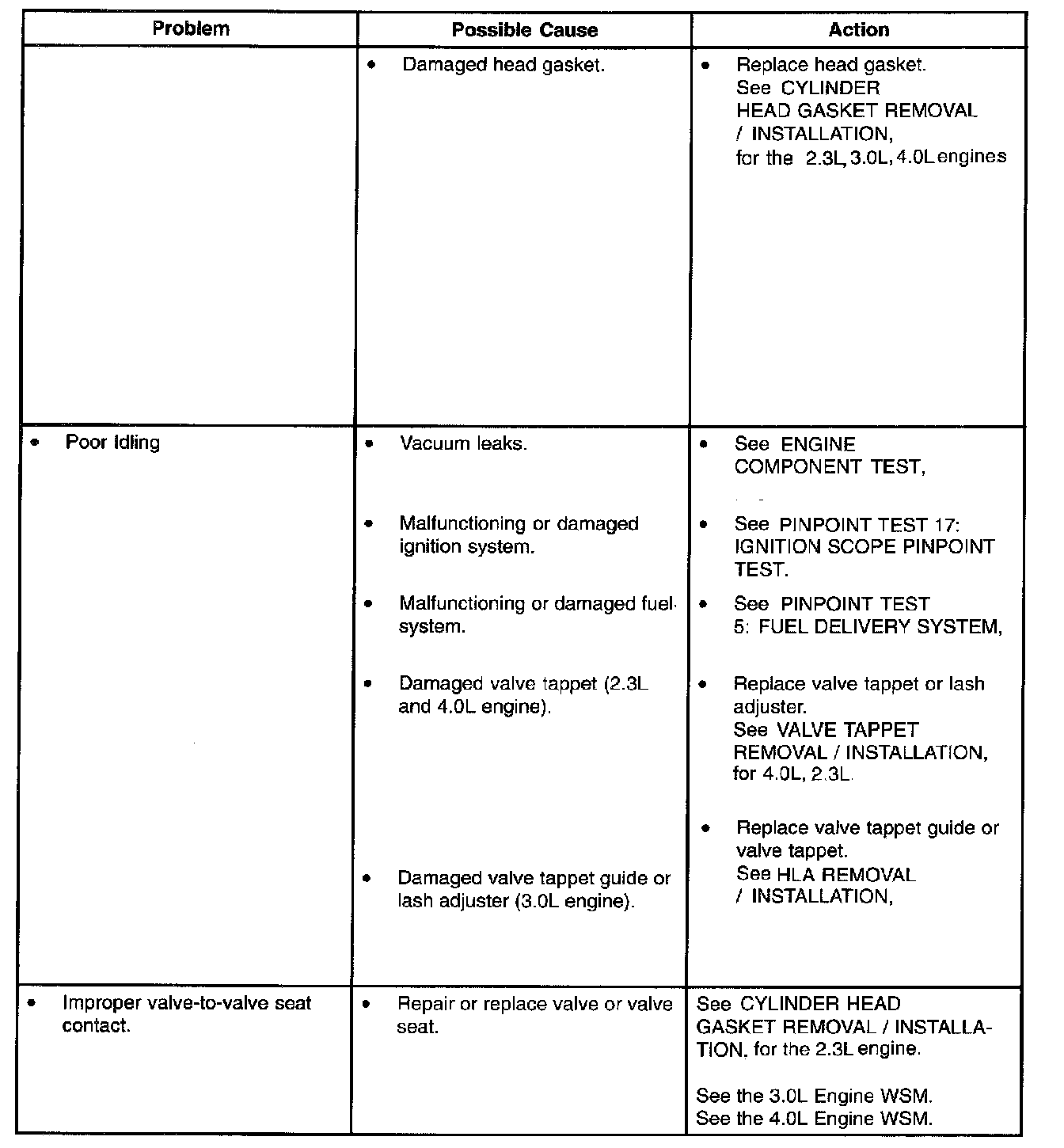

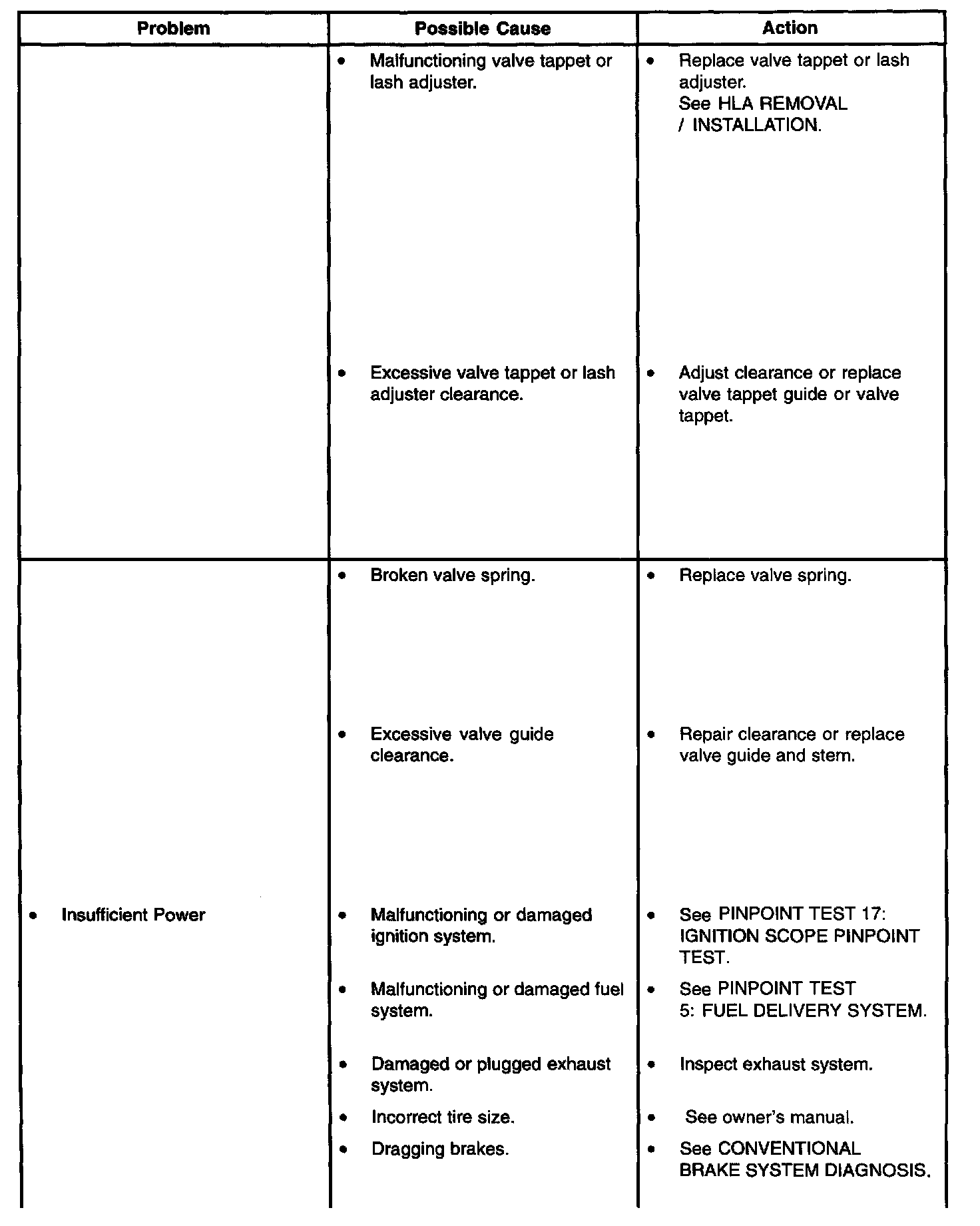

Engine Symptom Chart

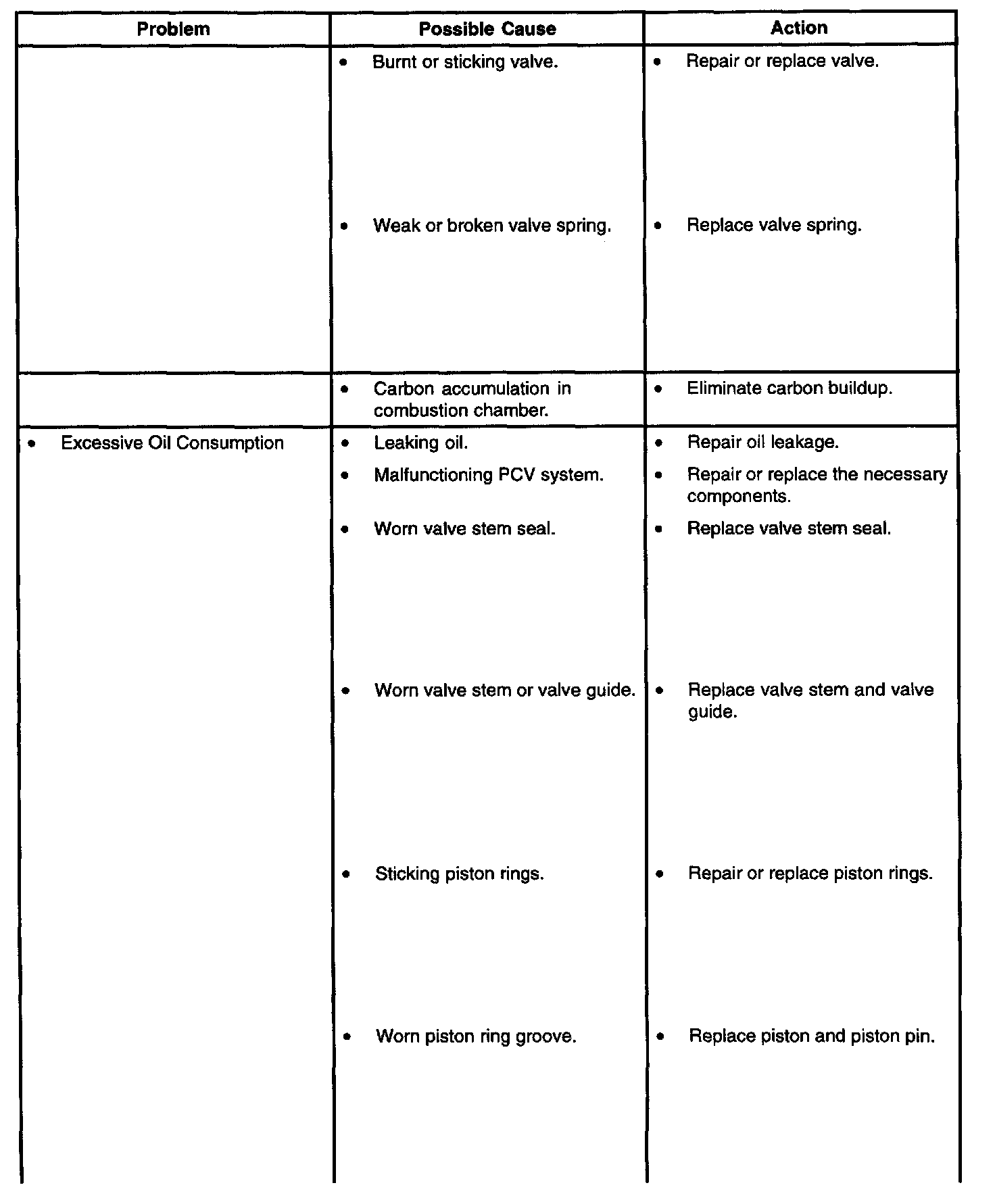

Problem / Possible Cause Part 1:

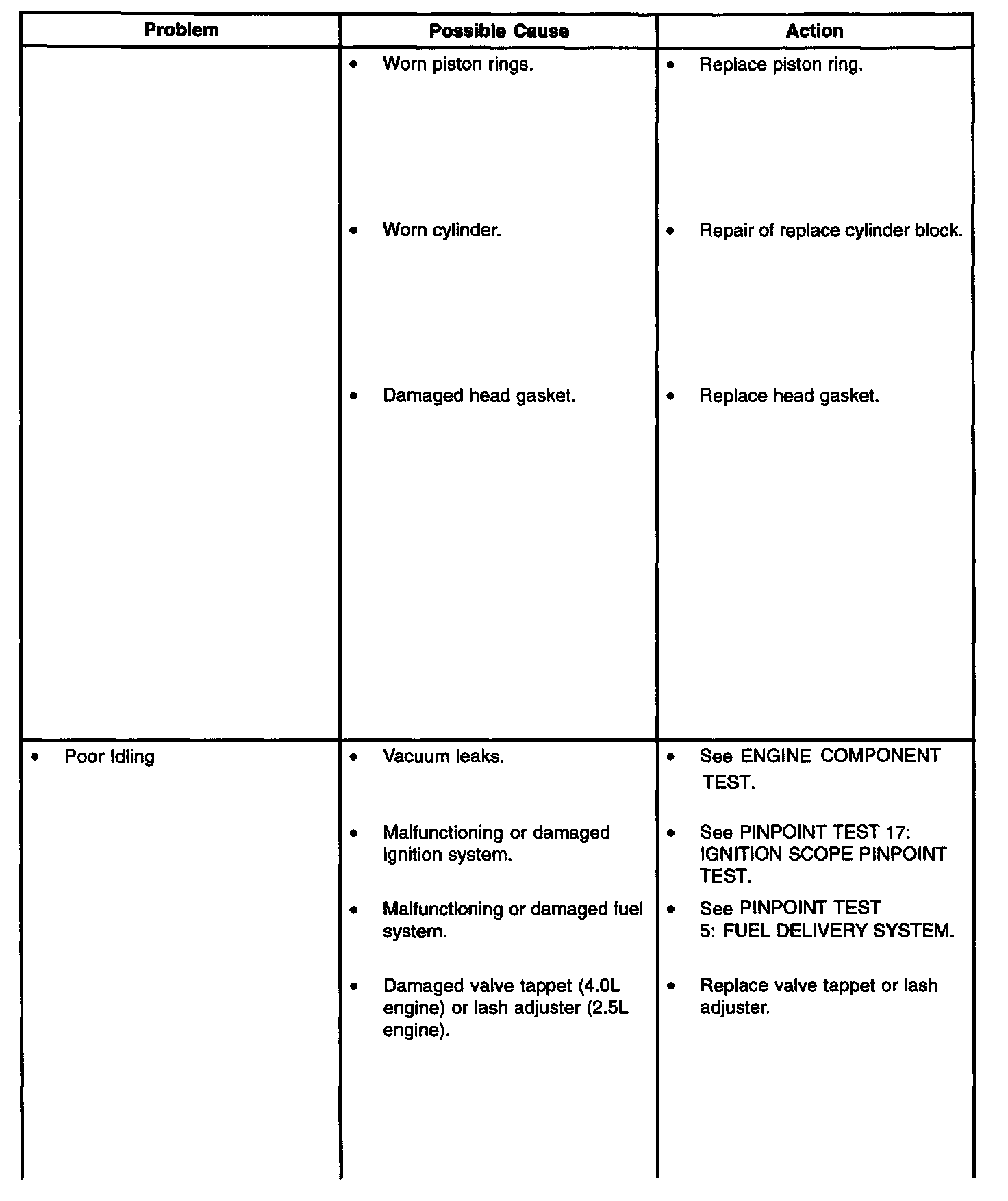

Problem / Possible Cause Part 2:

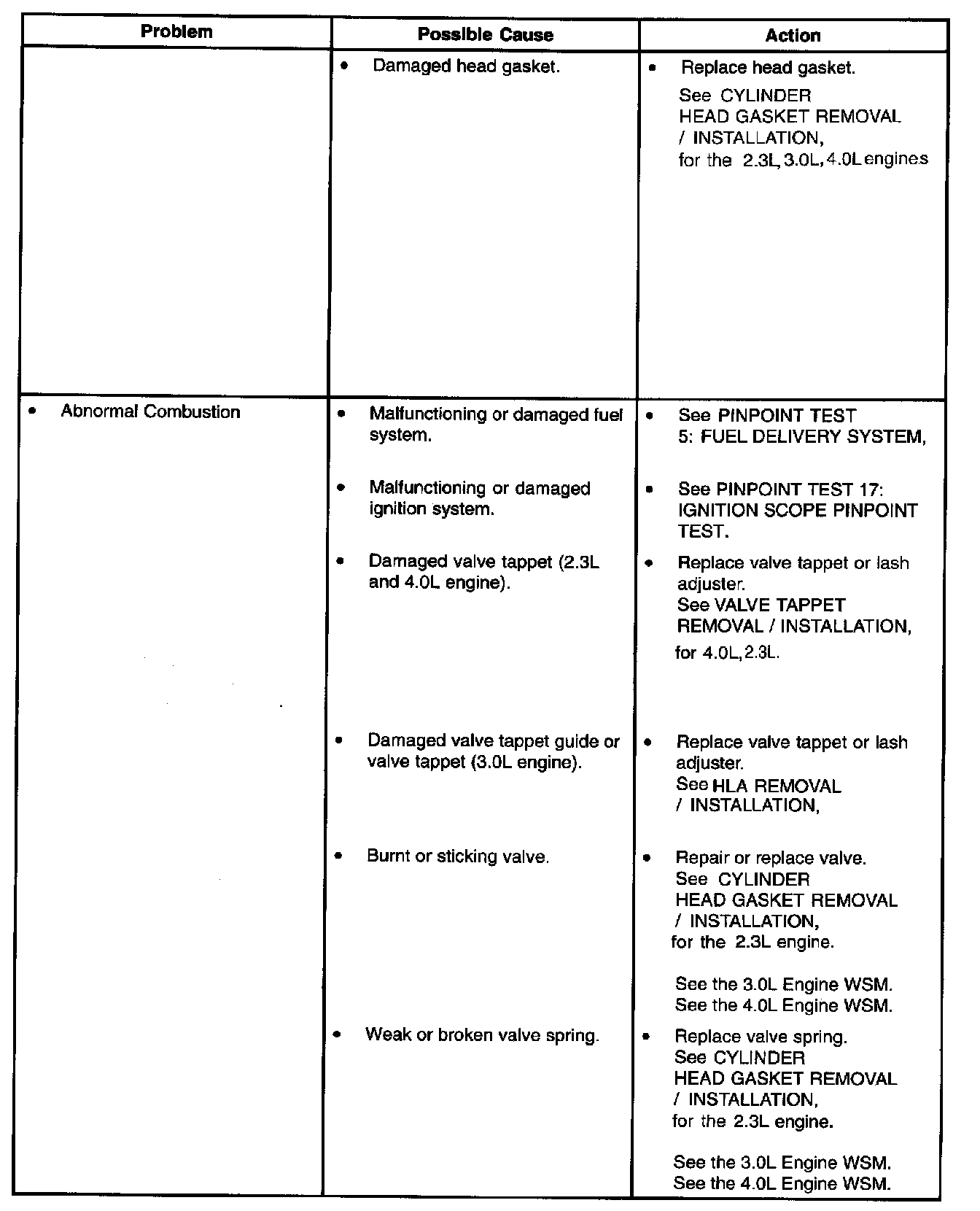

Problem / Possible Cause Part 3:

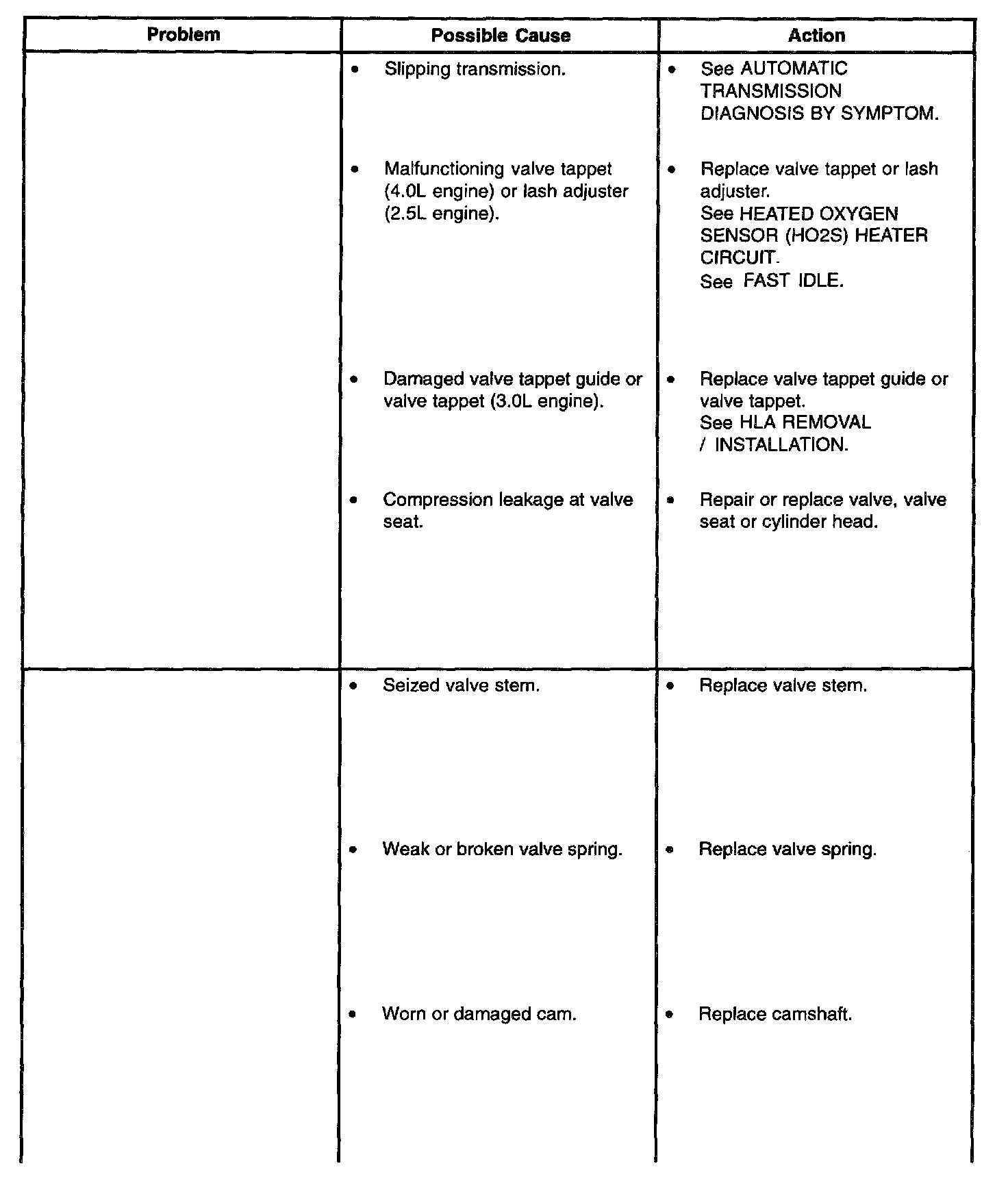

Problem / Possible Cause Part 4:

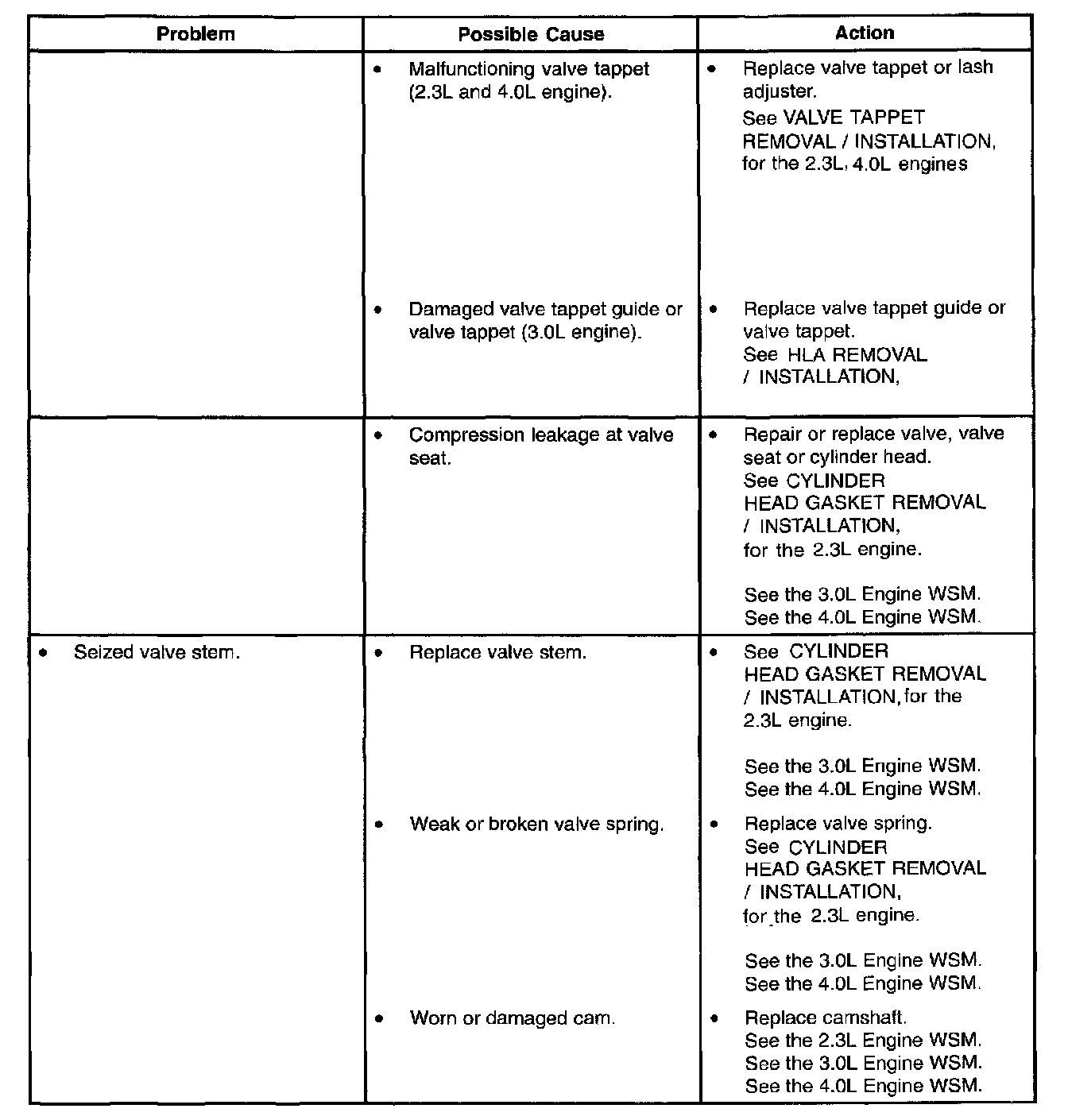

Problem / Possible Cause Part 5:

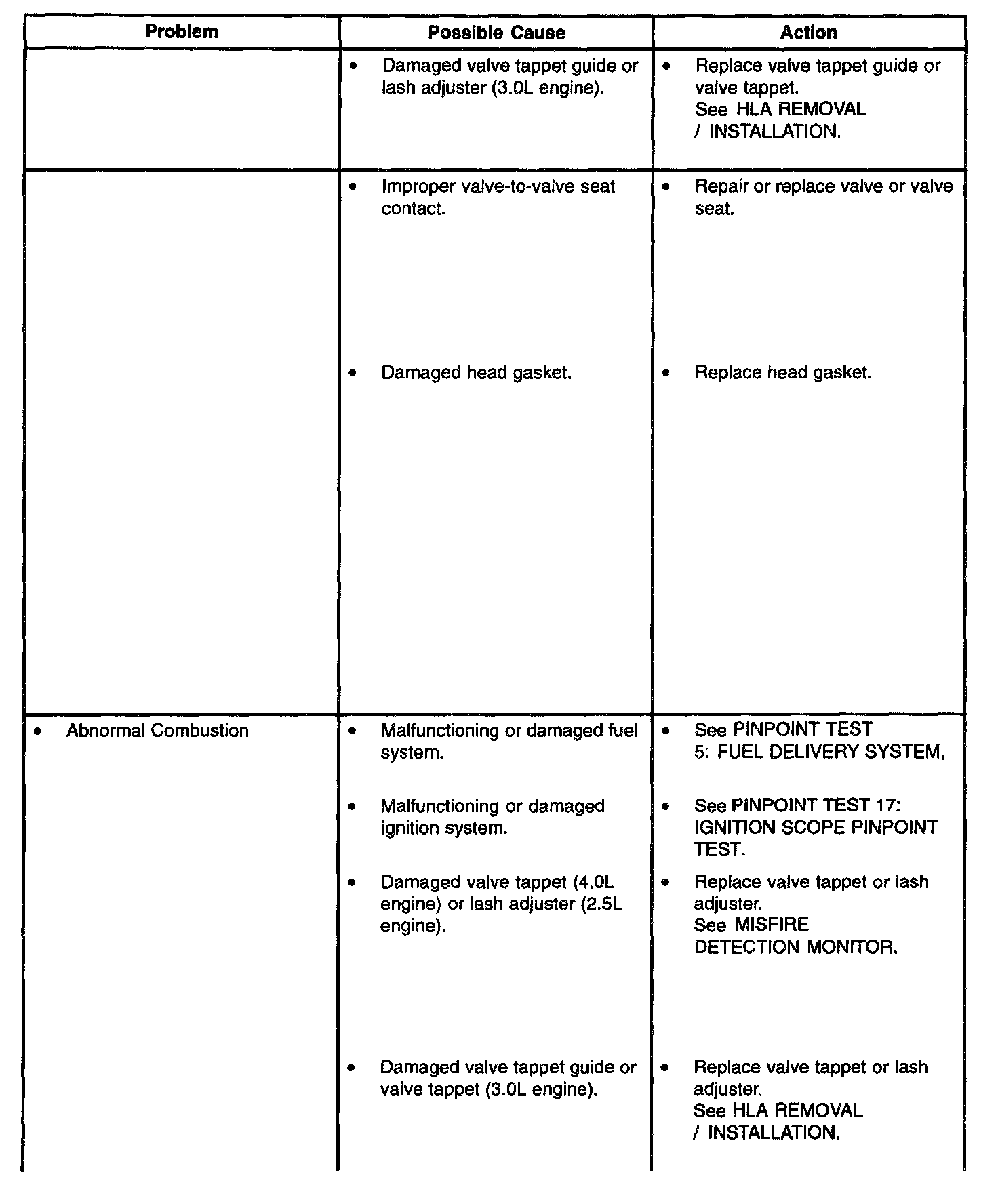

Problem / Possible Cause Part 6:

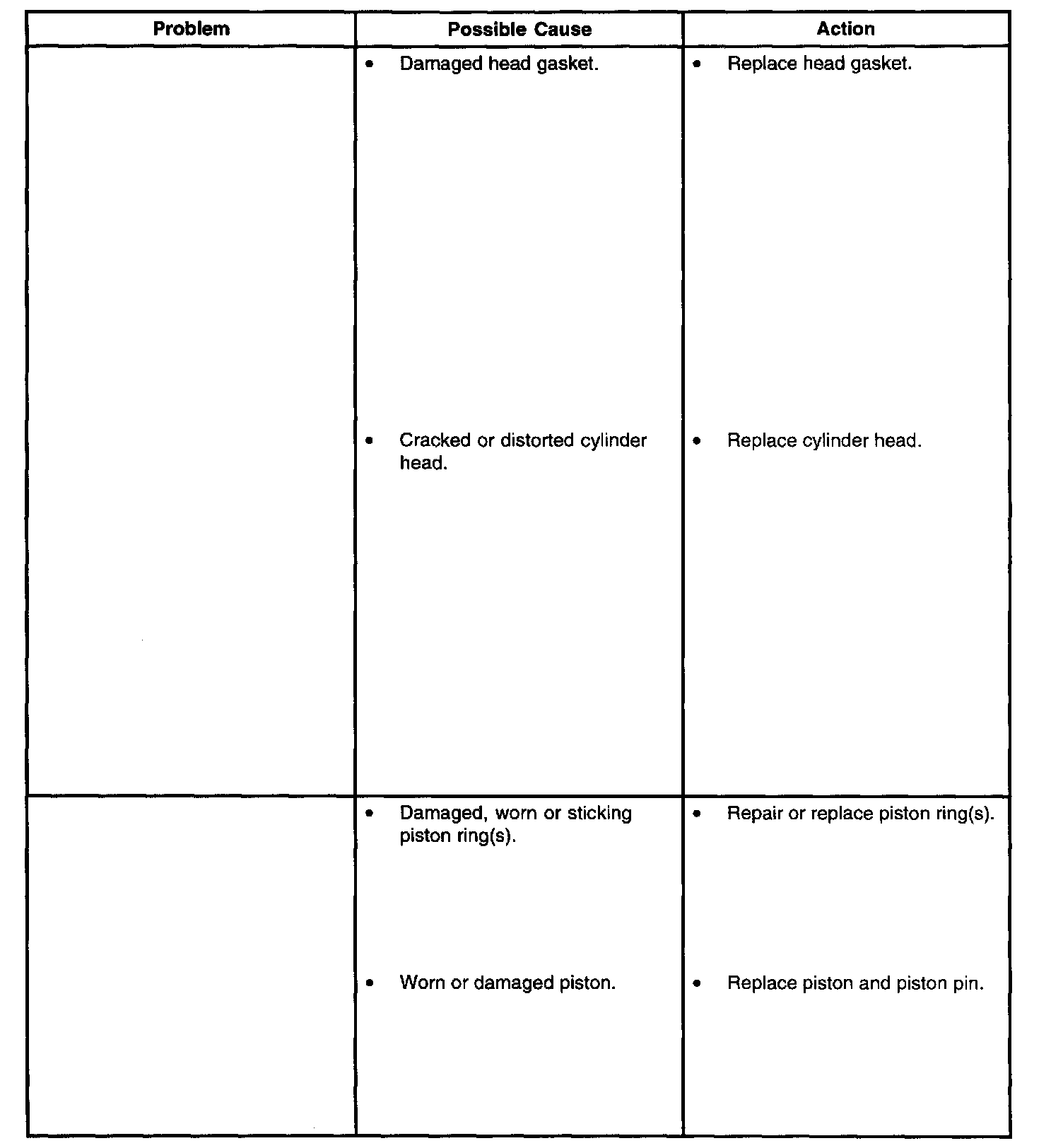

Problem / Possible Cause Part 7:

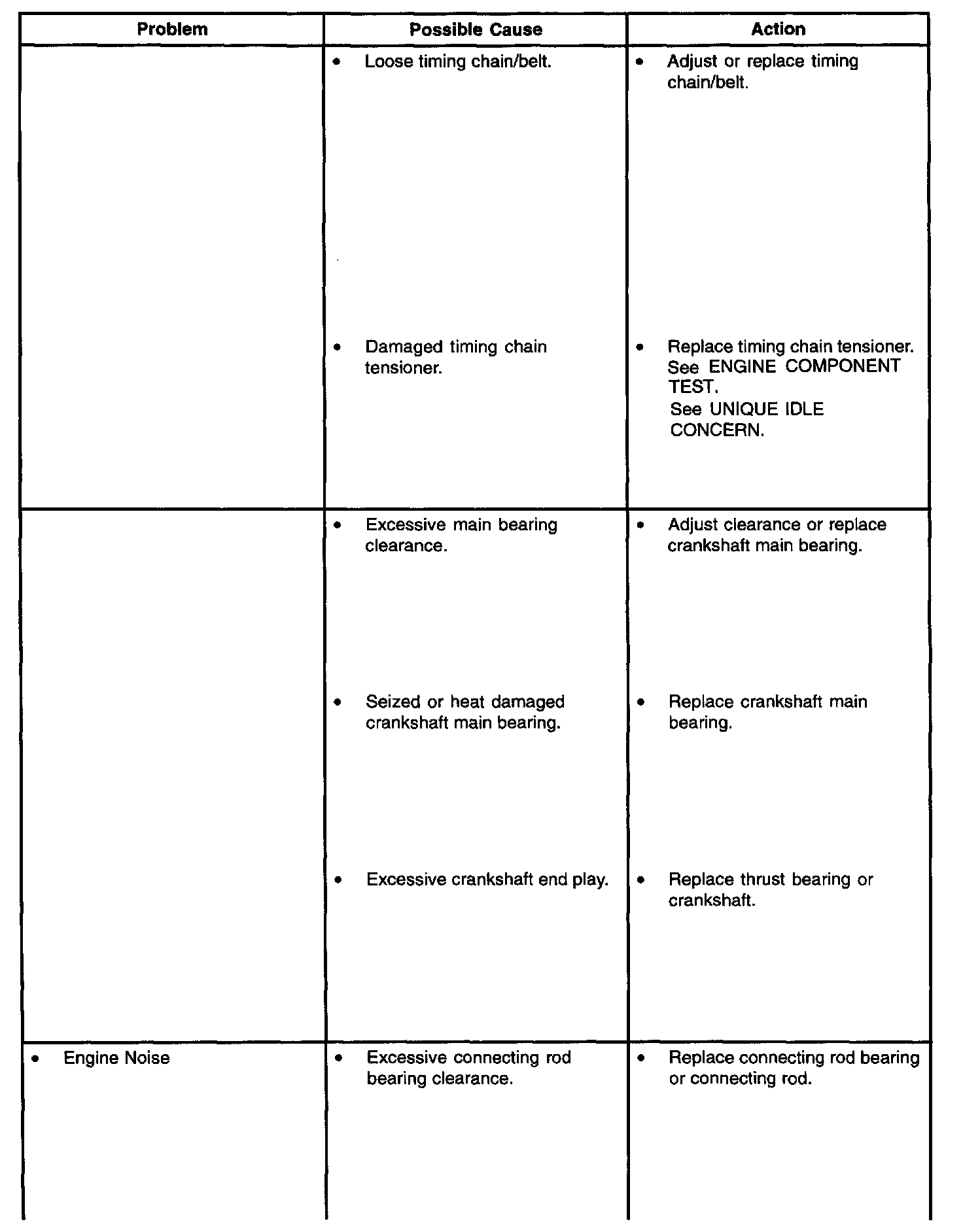

Problem / Possible Cause Part 8:

Problem / Possible Cause Part 9:

Problem / Possible Cause Part 10:

Problem / Possible Cause Part 1:

Problem / Possible Cause Part 2:

Problem / Possible Cause Part 3:

Problem / Possible Cause Part 4:

Problem / Possible Cause Part 5:

Problem / Possible Cause Part 6:

Problem / Possible Cause Part 7:

Problem / Possible Cause Part 8:

Problem / Possible Cause Part 8:

Problem / Possible Cause Part 9:
