Cylinder Head Disassembly/Assembly
CYLINDER HEAD DISASSEMBLY / ASSEMBLYDisassembly Note
1. Remove the exhaust manifold.

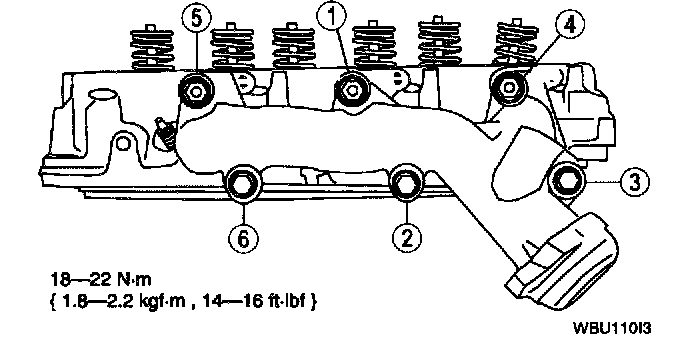

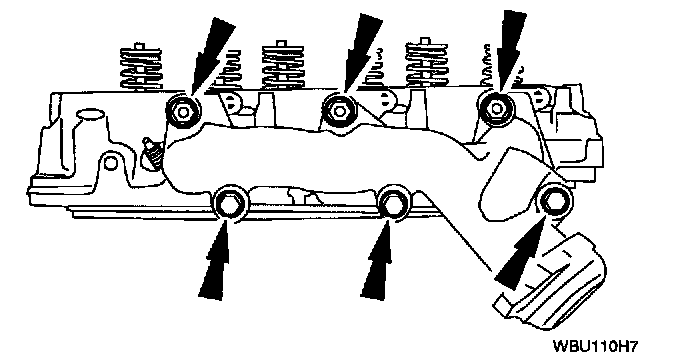

1. Remove the bolts.

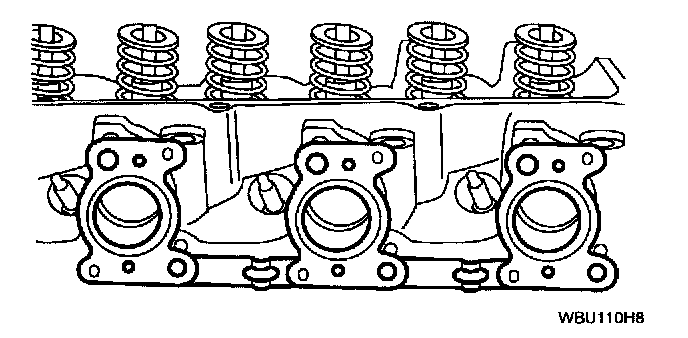

2. Remove the exhaust manifold.
2. Remove the exhaust manifold gasket.
3. Using a Valve Spring Compressor SST 303-163 (T81 P-6513-A) or equivalent, remove the valve spring retainer key.

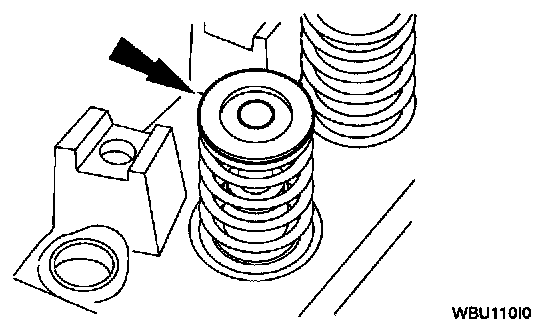

4. Remove the valve spring retainer.
^ For component tests for the valve spring retainer, refer to Cylinder Head Assembly; Testing and Inspection; Procedures; Valve Spring Inspection.

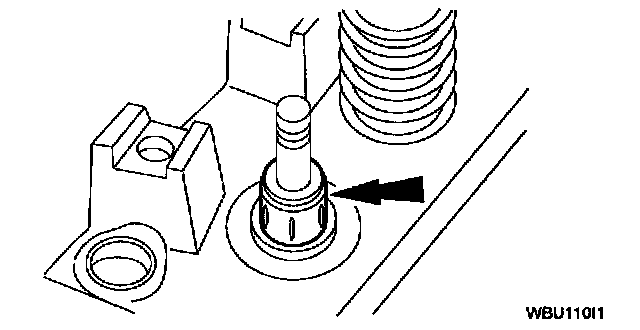

5. Remove the valve stem seal.

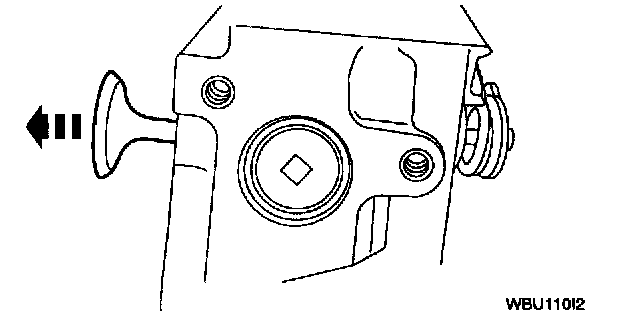

6. Remove the valve.
^ For component tests for the valve, refer to Cylinder Head Assembly; Testing and Inspection; Procedures; Valve Inspection.
^ For component tests for the cylinder head, refer to Cylinder Head Assembly; Testing and Inspection; Procedures; Cylinder Head Inspection.
Assembly Note
1. Assemble in reverse order of disassembly.
1. Lubricate the valve stem and the valve stem seal with clean engine oil.
