Diagram B-2f

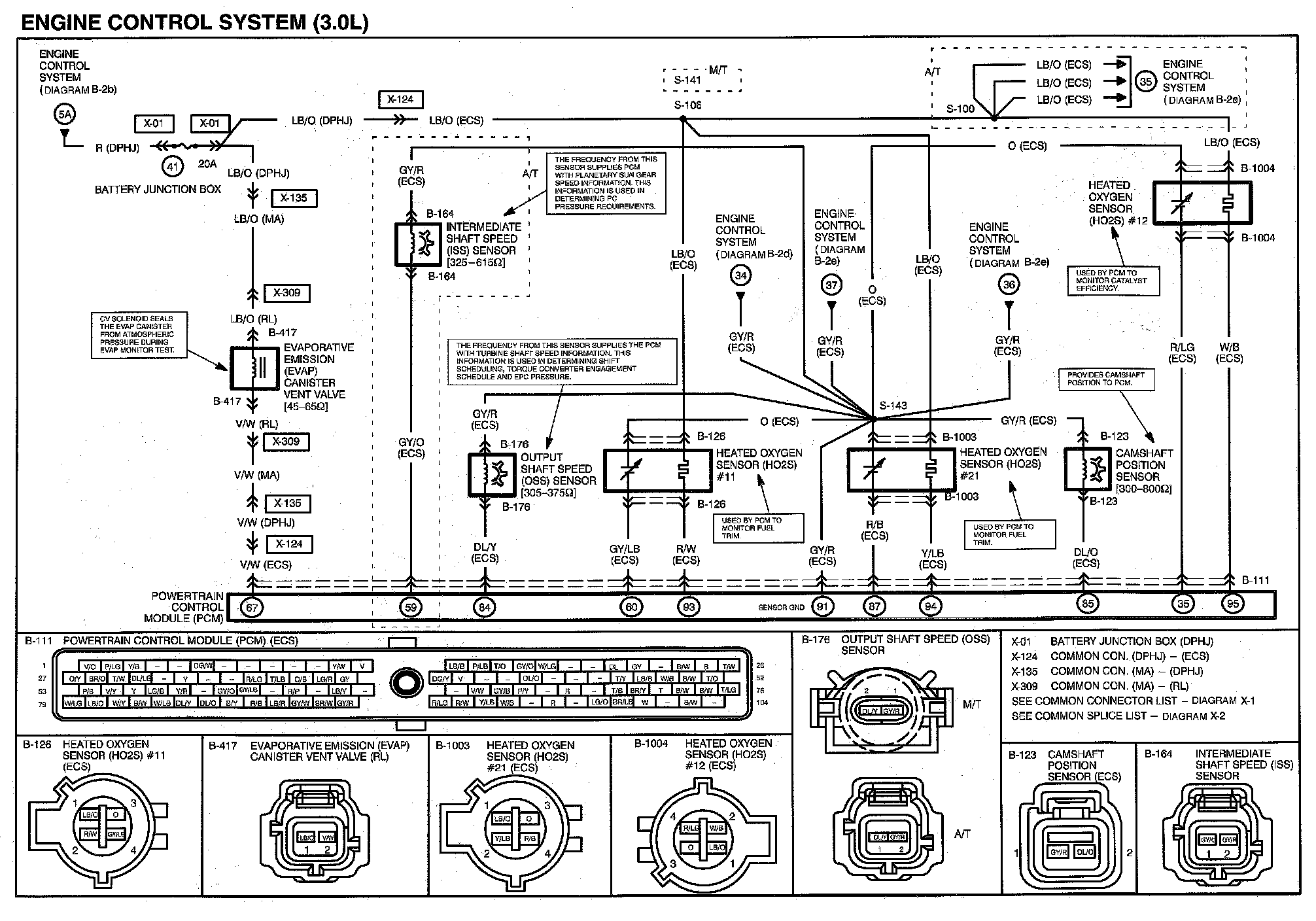

Diagram B-2f:

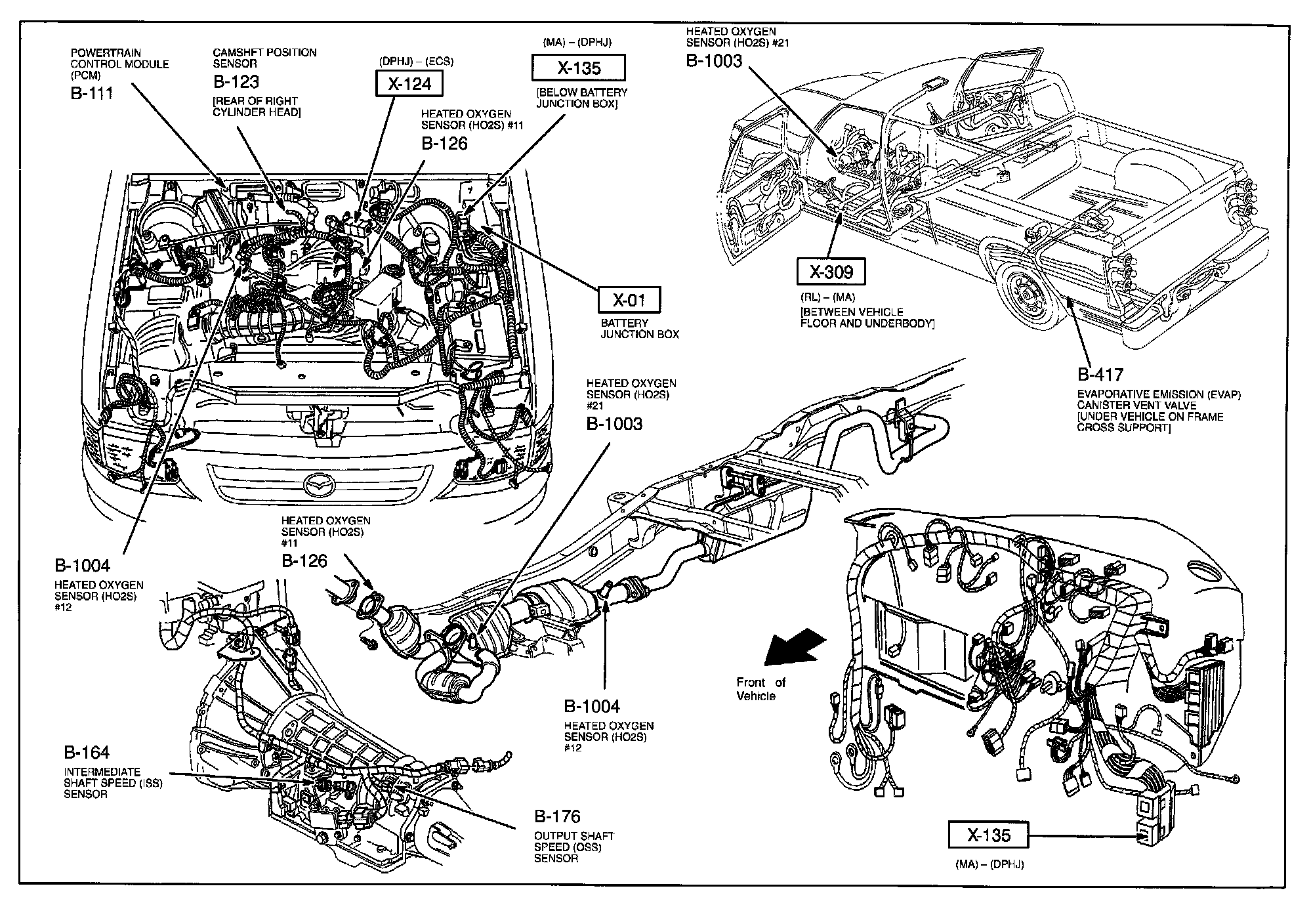

Routing View B-2f:

Previous Diagram Diagram B-2e


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
