Hood Sensor/Switch (For Alarm): Service and Repair

HOOD SWITCH REMOVAL/INSTALLATION

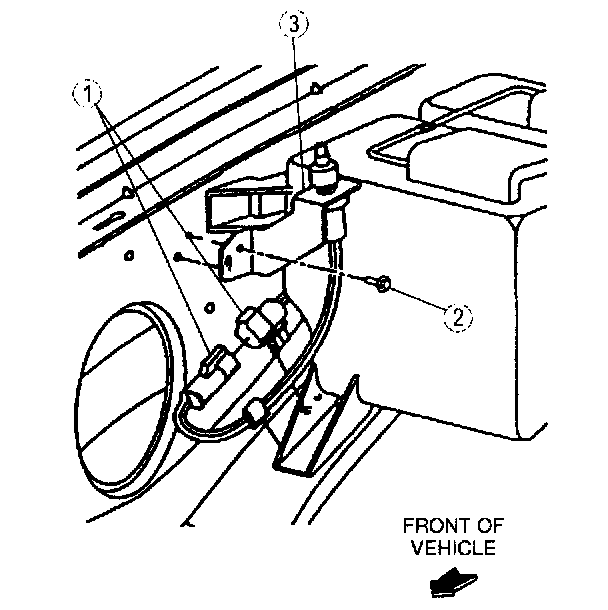

1. Remove in the order shown in the figure.
1. Electrical connector
2. Hood switch mounting screw
3. Hood switch

2. Install in reverse order of removal.

NOTE: Make sure hood switch bracket is firmly seated when driving mounting screw to retain switch.
