Home
>>
Mazda Truck
>>
2003
>>
B2300 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Troubleshooting Chart
Symptom Troubleshooting Chart
Symptom Troubleshooting Chart-Automatic Transmission

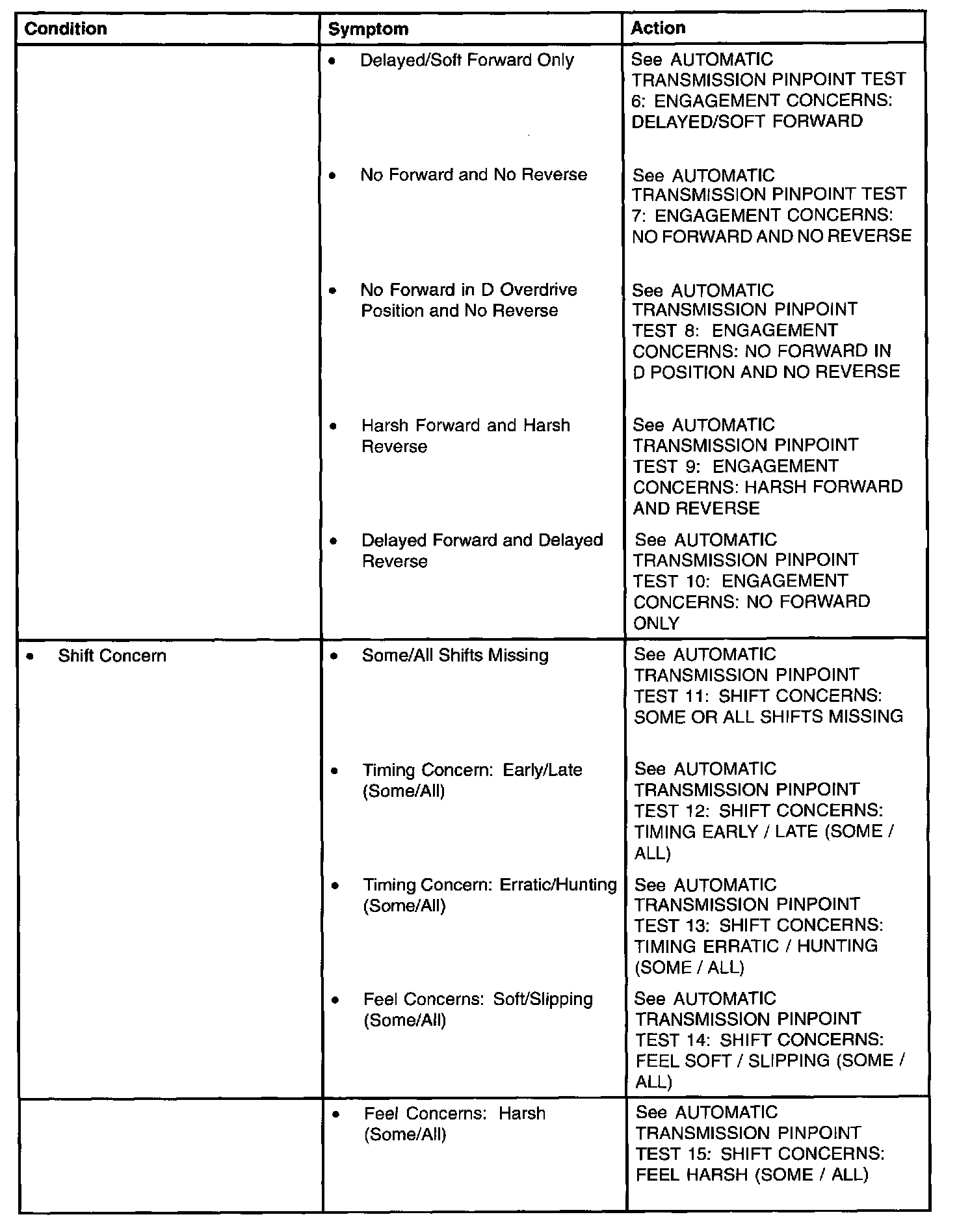

Chart 1 Of 5:
Chart 2 Of 5:

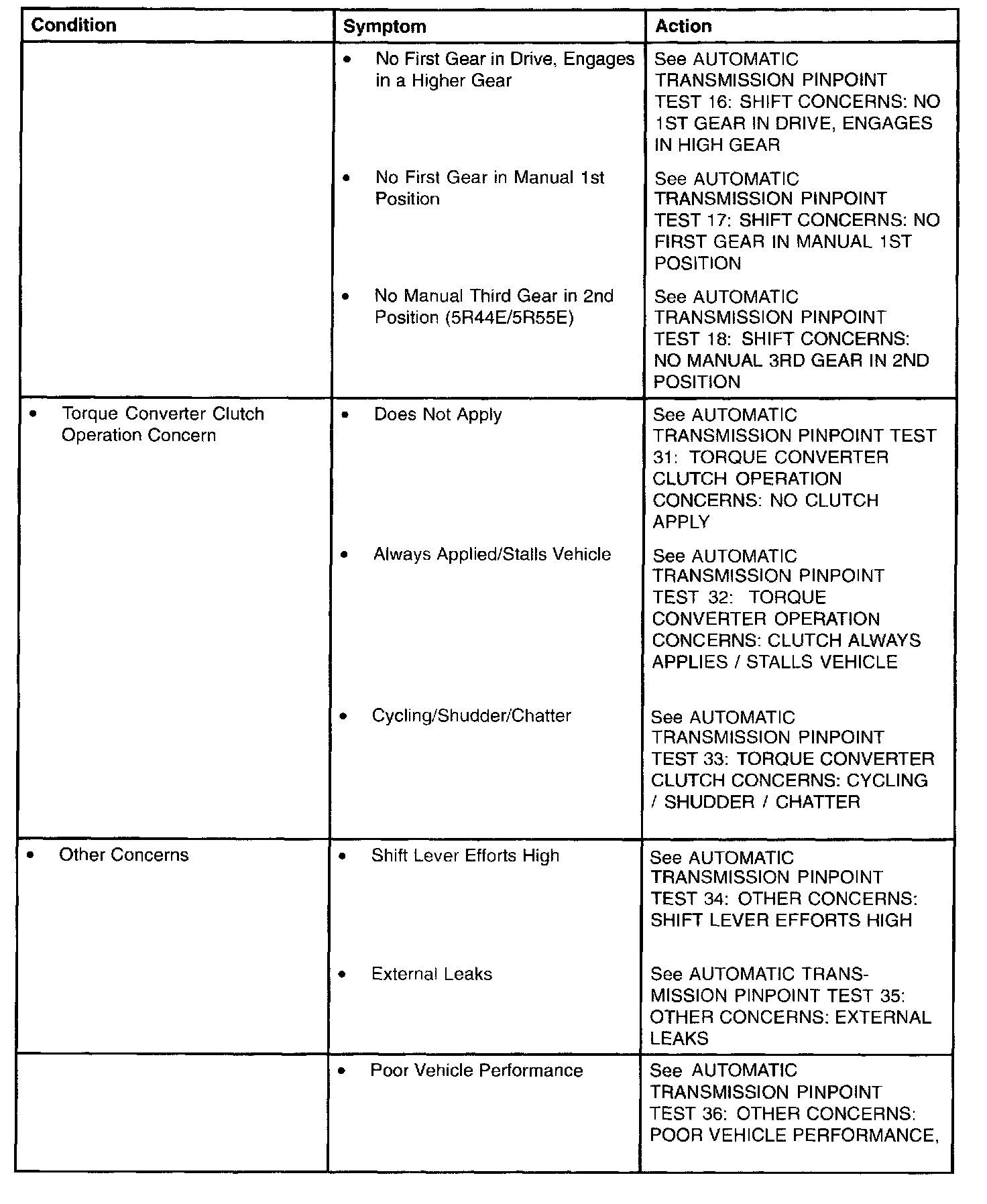

Chart 3 Of 5:
Chart 4 Of 5:

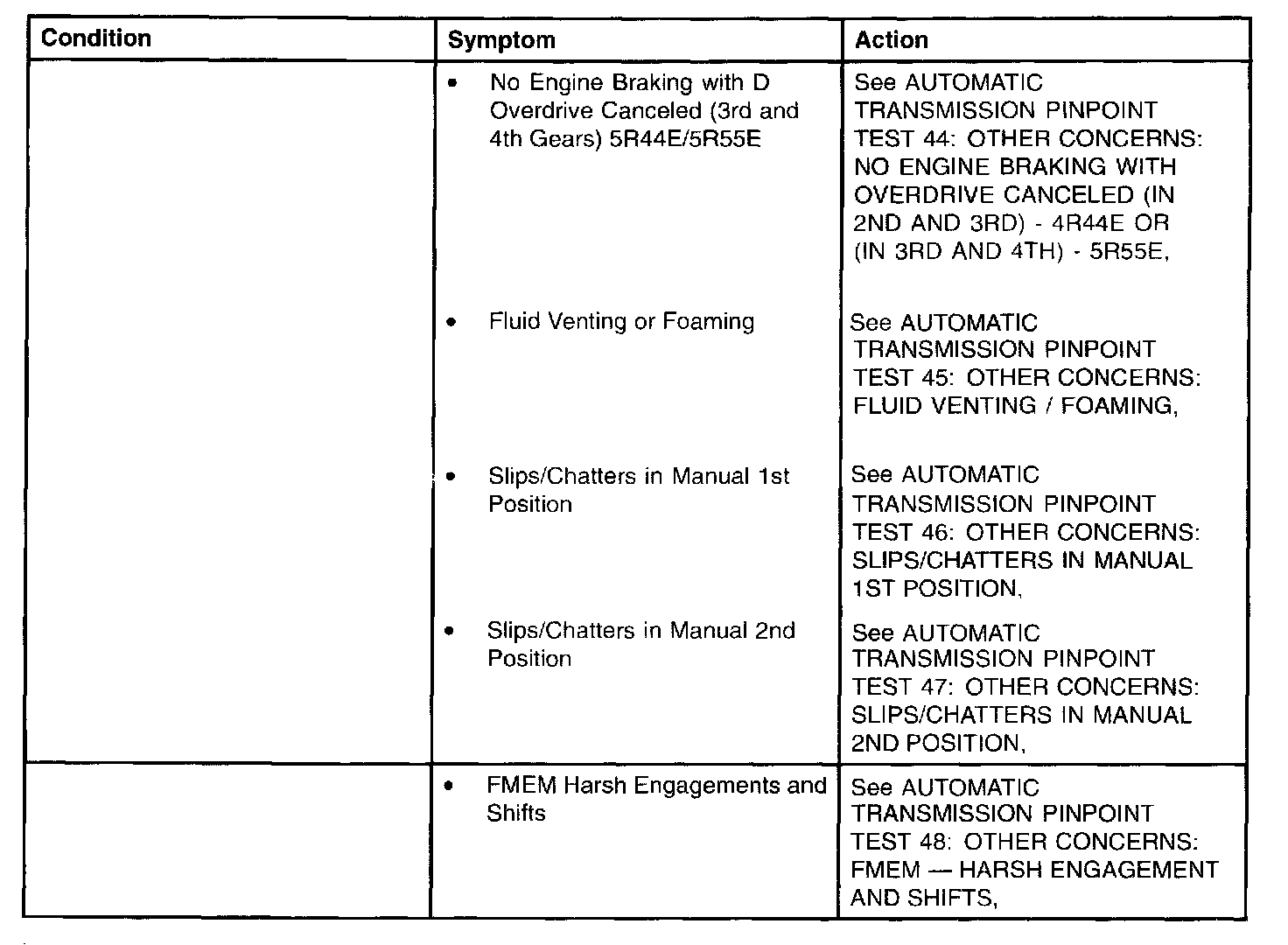

Chart 5 Of 5:
