Pinpoint Test 13

AUTOMATIC TRANSMISSION PINPOINT TEST 13: SHIFT CONCERNS: TIMING ERRATIC / HUNTING (SOME / ALL)

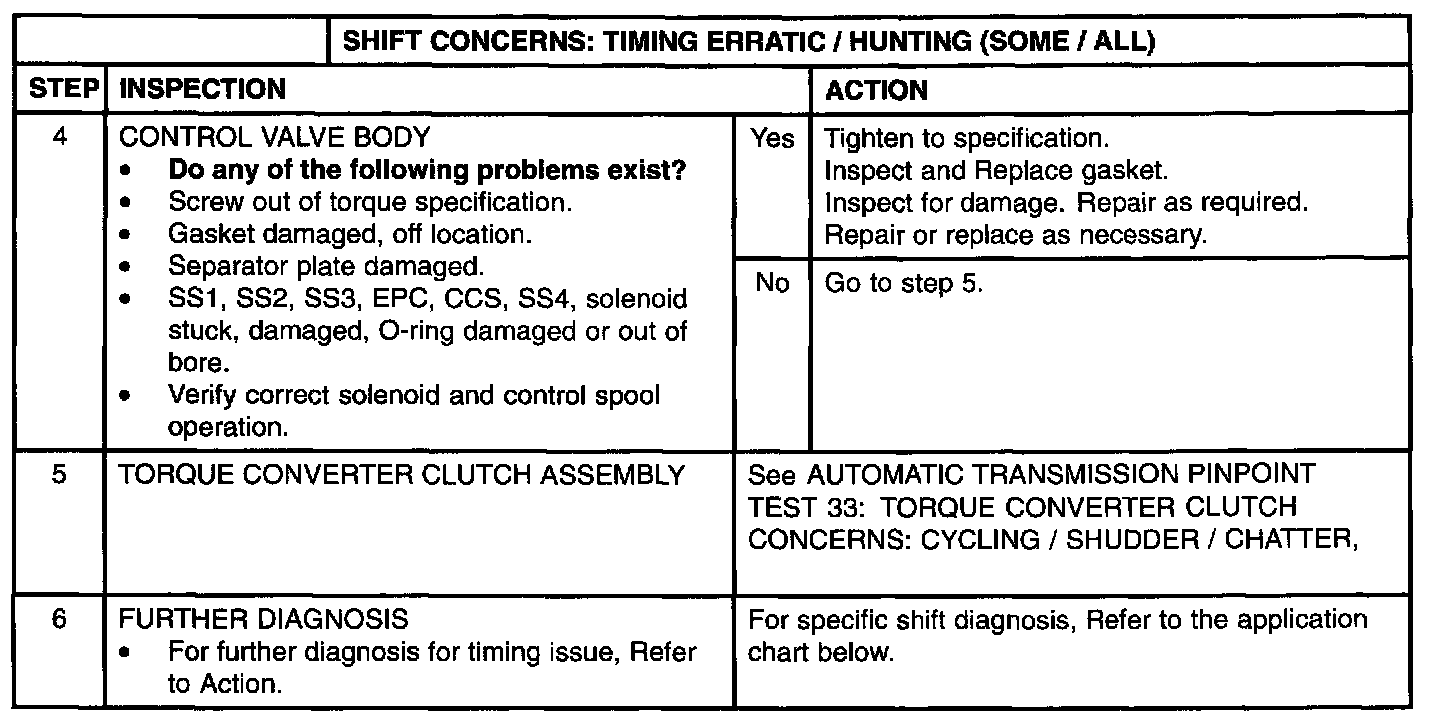

Test 1 Of 2:




Test 2 Of 2:

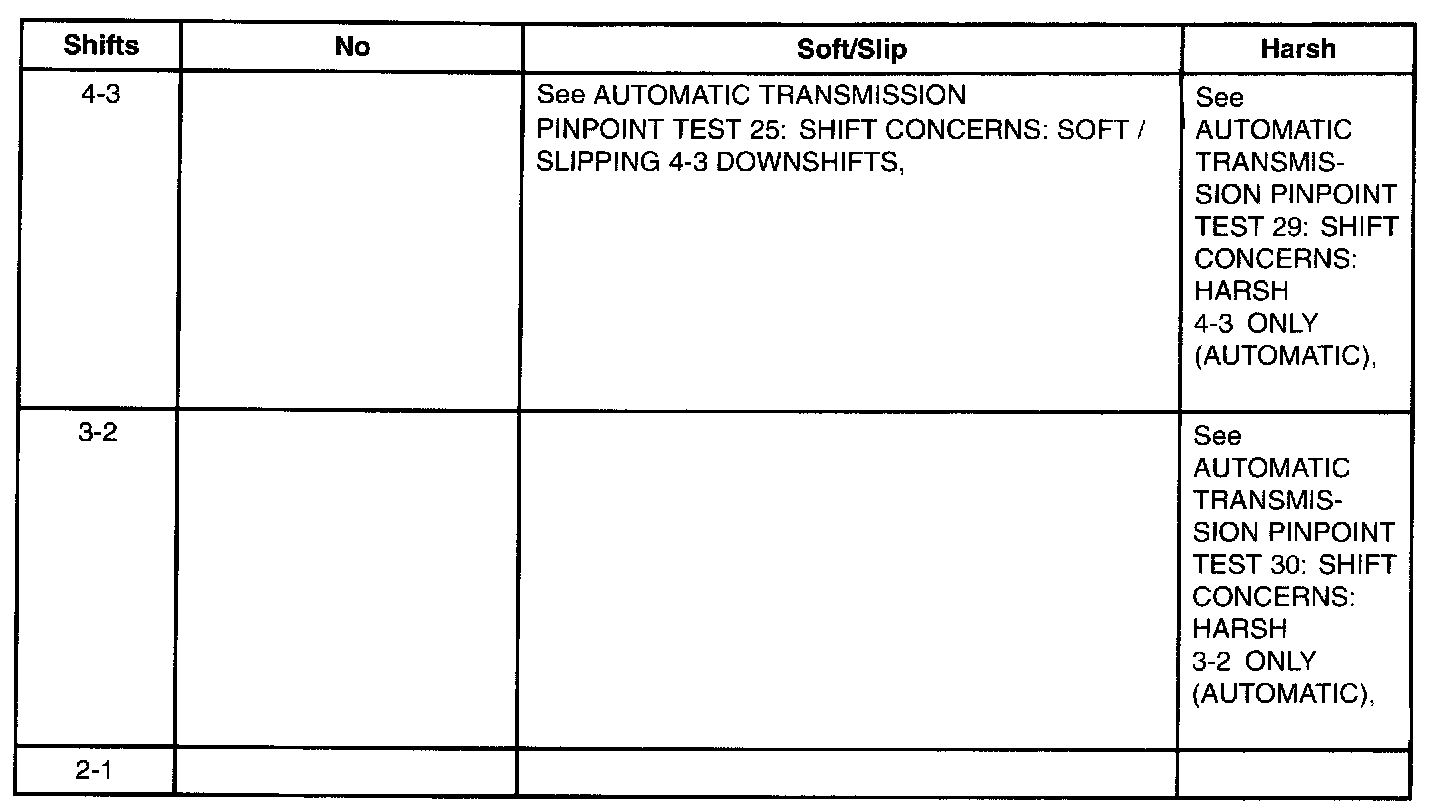

Shift Diagnosis Chart

1 Of 2:




2 Of 2:
