Automatic Transmission/Transaxle: Application and ID

Automatic Transmission Identification Tags

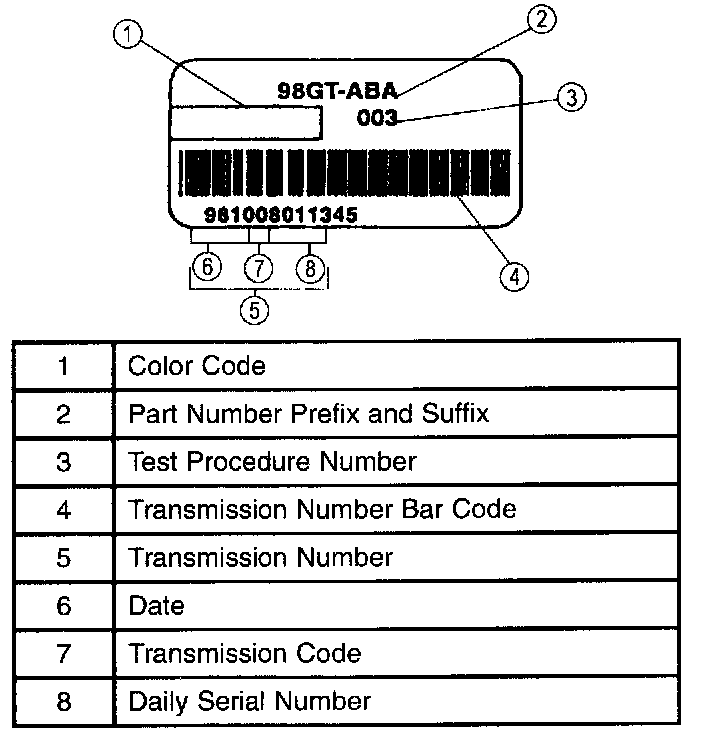

I.D. Tag Located on Transmission Case





I.D. Label Located on Transmission Gasket and Filter

All vehicles are equipped with a Vehicle Certification Label, located on the driver side door lock post. Refer to the code in the space marked TR. For model, service ID level or build date information, refer to the transmission service ID tag located on the transmission case.
