Passenger Air Bag Module
PASSENGER AIR BAG MODULE REMOVAL / INSTALLATIONRemoval
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Carry a live air bag module with the air bag and deployment door pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Do not set a live air bag module down with the deployment door face down. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment which can result in personal injury.
WARNING: Air bag modules with discolored or damaged deployment doors must be installed new, not repainted.
NOTE: Repair is made by installing a new part only if the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
1. Prepare the vehicle for passenger air bag module removal.
WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
1. Disconnect the negative battery cable and wait at least one minute.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
2. Deactivate the supplemental restraint system (SRS).

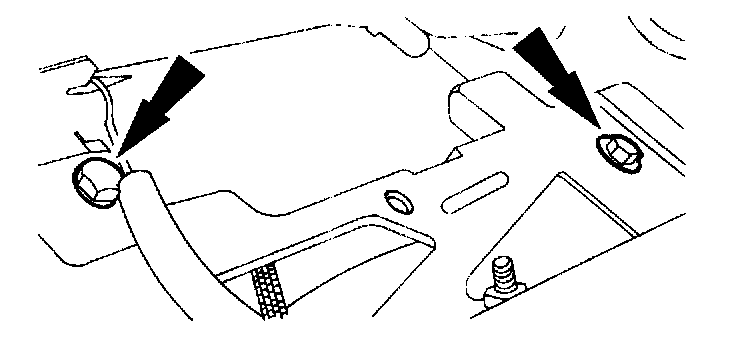

2. Remove the two passenger air bag retaining screws.
CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment doors.

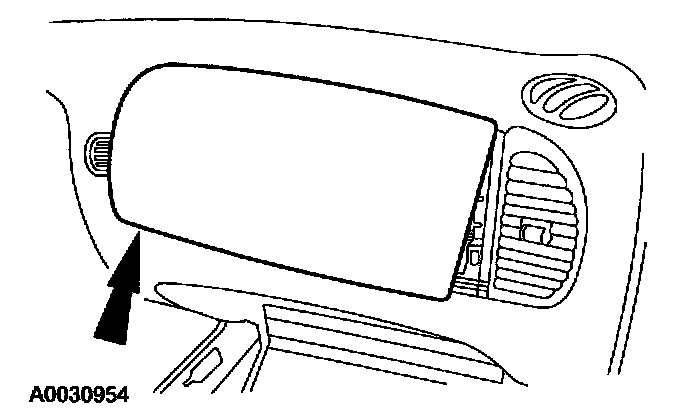

3. Placing one hand in the glove component, push the passenger air bag out.
Installation
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.
1. Disconnect the negative battery cable and wait at least one minute.

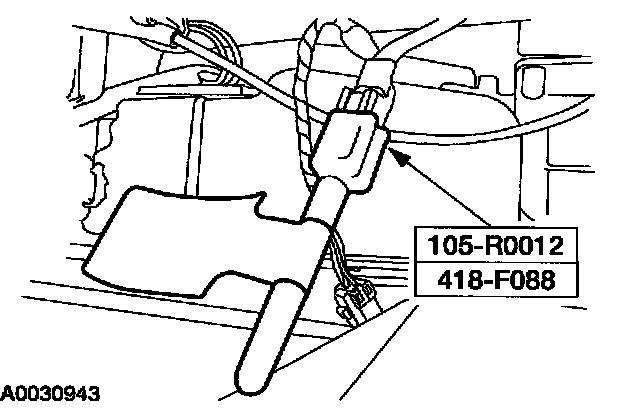

2. Remove the restraint system diagnostic tool from the vehicle harness side of the clockspring electrical connector.

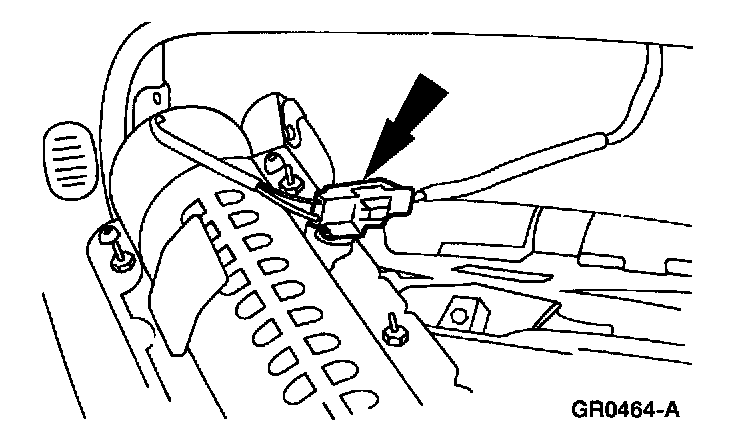

3. Connect the passenger air bag module electrical connector.
4. Position the passenger air bag module into the instrument panel.

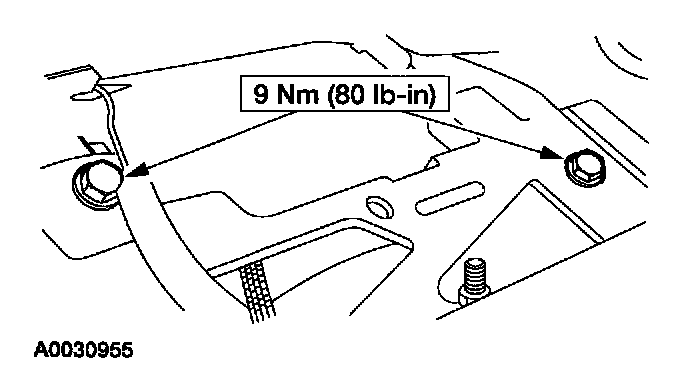

5. Install the passenger air bag module bolts.
6. Connect the negative battery cable.
7. With the restraint system diagnostic tools still installed at the remaining deployable devices, prove out the supplemental restraint system (SRS).
WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (it equipped).
8. Disconnect the negative battery cable and wait at least one minute.
9. Restore the vehicle to operating condition.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings,notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
1. Reactivate the supplemental restraint system (SRS).
WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
2. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
