Daytime Running Lamp Control Unit: Service and Repair

DAYTIME RUNNING LAMP (DRL) CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect negative battery cable.

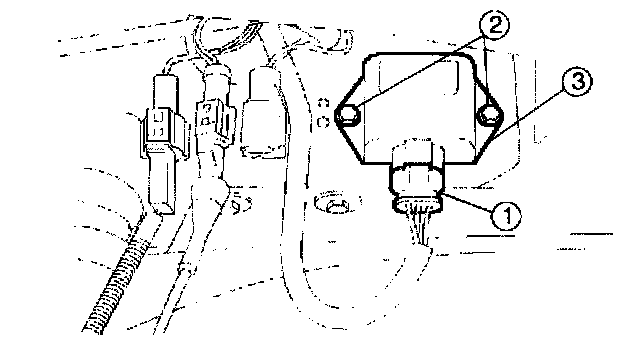

2. Remove the daytime running lamps (DRL) control module.
1. Disconnect the electrical connector.

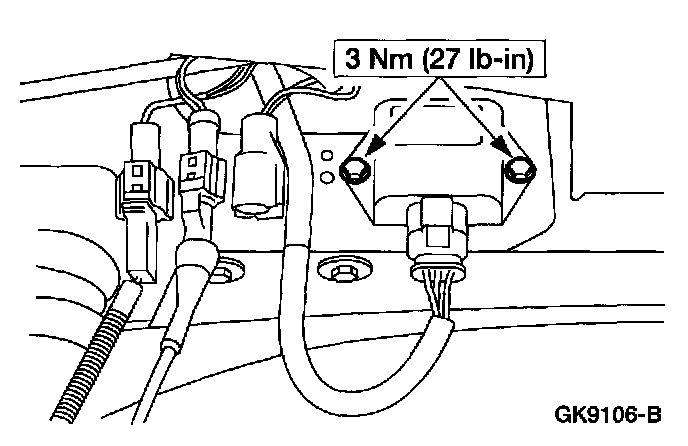

2. Remove the screws.
3. Remove the DRL control module.

3. Install in reverse order of removal.
