Pressure Relief Valve Removal/Installation

PRESSURE RELIEF VALVE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. See BATTERY DISCONNECT.




2. Remove the fuel pressure relief cap.
3. Relieve the fuel pressure. See FUEL PRESSURE RELIEF.

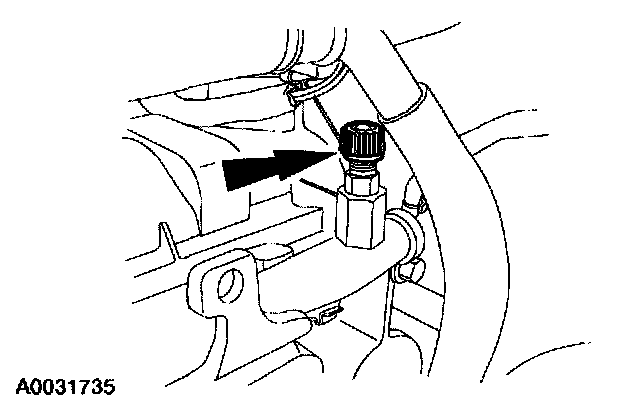

4. Remove the fuel pressure relief valve.

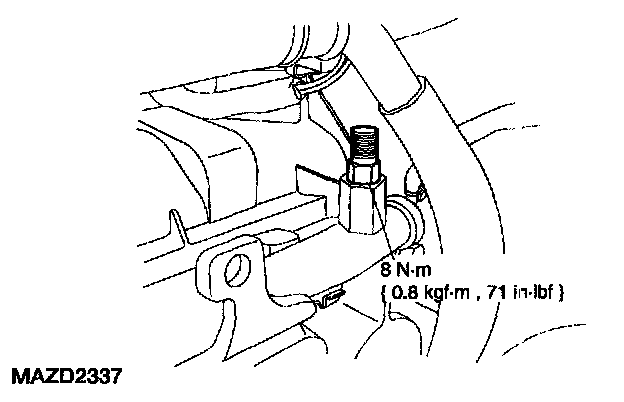

5. To install, reverse the removal procedure.
