Coolant Outlet Pipe Front

COOLANT OUTLET PIPE FRONT REMOVAL / INSTALLATION-2.3L





1. Drain the cooling system.

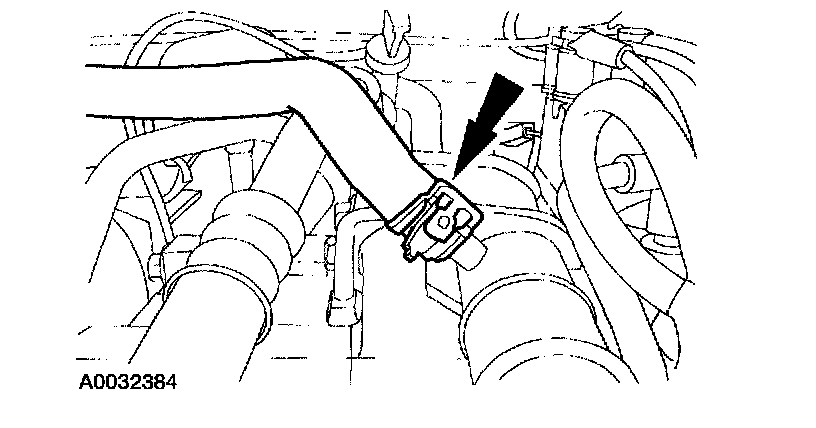

2. Disconnect the radiator upper hose.

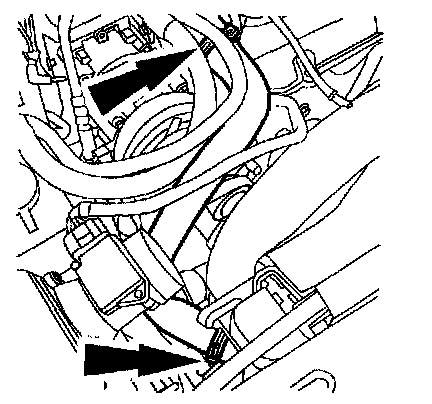

3. Disconnect the reservoir hose.

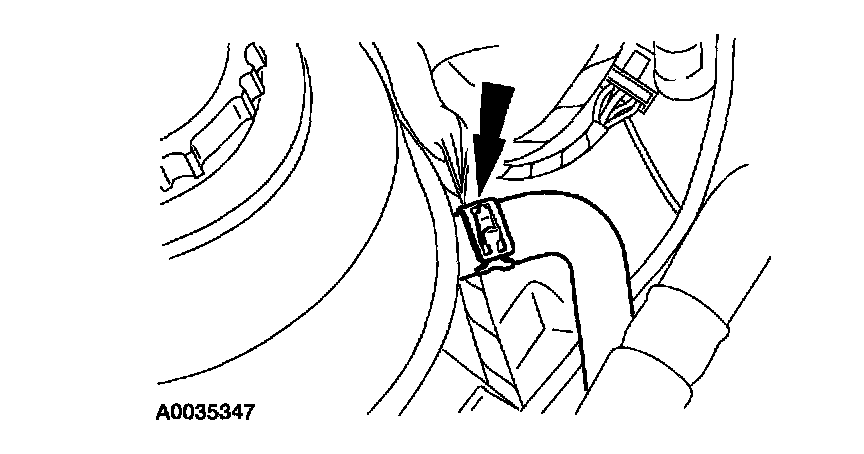

4. Disconnect the degas bottle lower hose.

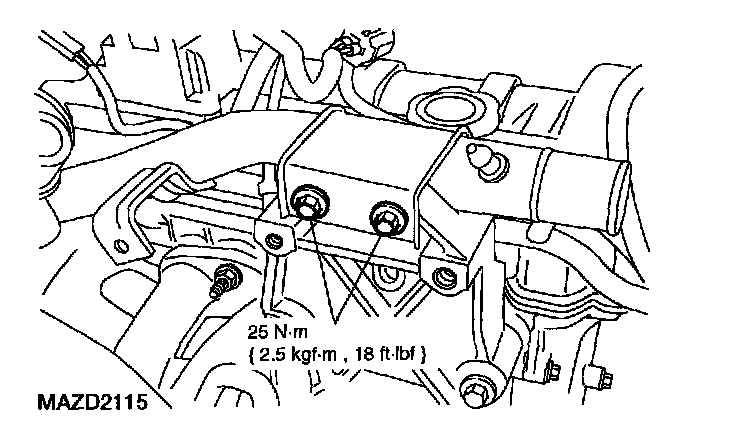

5. Remove the mounting bolts and remove the front coolant outlet tube.

Note:
^ Inspect the two O-rings. Install new O-rings if necessary.

6. To install, reverse the removal procedure.
