Turn Signal Bulb: Service and Repair

TURN SIGNAL LAMP - BULB REMOVAL/INSTALLATION

1. When installing a new bulb you must you must remove the headlamp assembly.

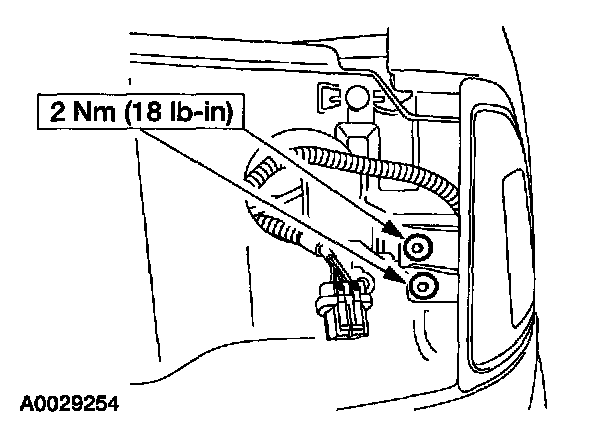

2. Remove the bolts and the side turn signal lamp assembly.




3. Rotate the side turn signal lamp bulb socket one-eighth of a turn, and pull the bulb socket from the side turn signal lamp assembly.
4. Install in reverse order of removal.
