Component Tests and General Diagnostics

TURN SIGNAL/HAZARD LAMPS INSPECTION

INSPECTION AND VERIFICATION
1. Verify the customer concern by operating the turn signal/hazard lamps.

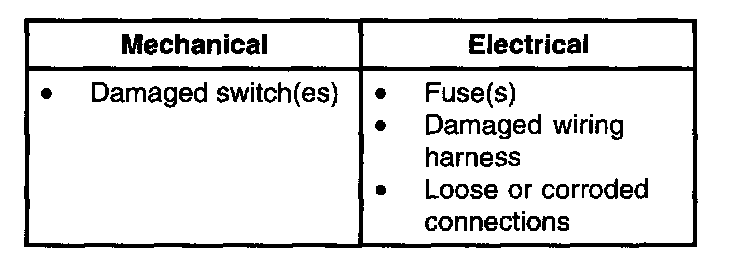

2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the fault is not visually evident, determine the symptom and see SYMPTOM TROUBLESHOOTING CHART - TURN SIGNAL/HAZARD LAMP. Symptom Related Diagnostic Procedures
